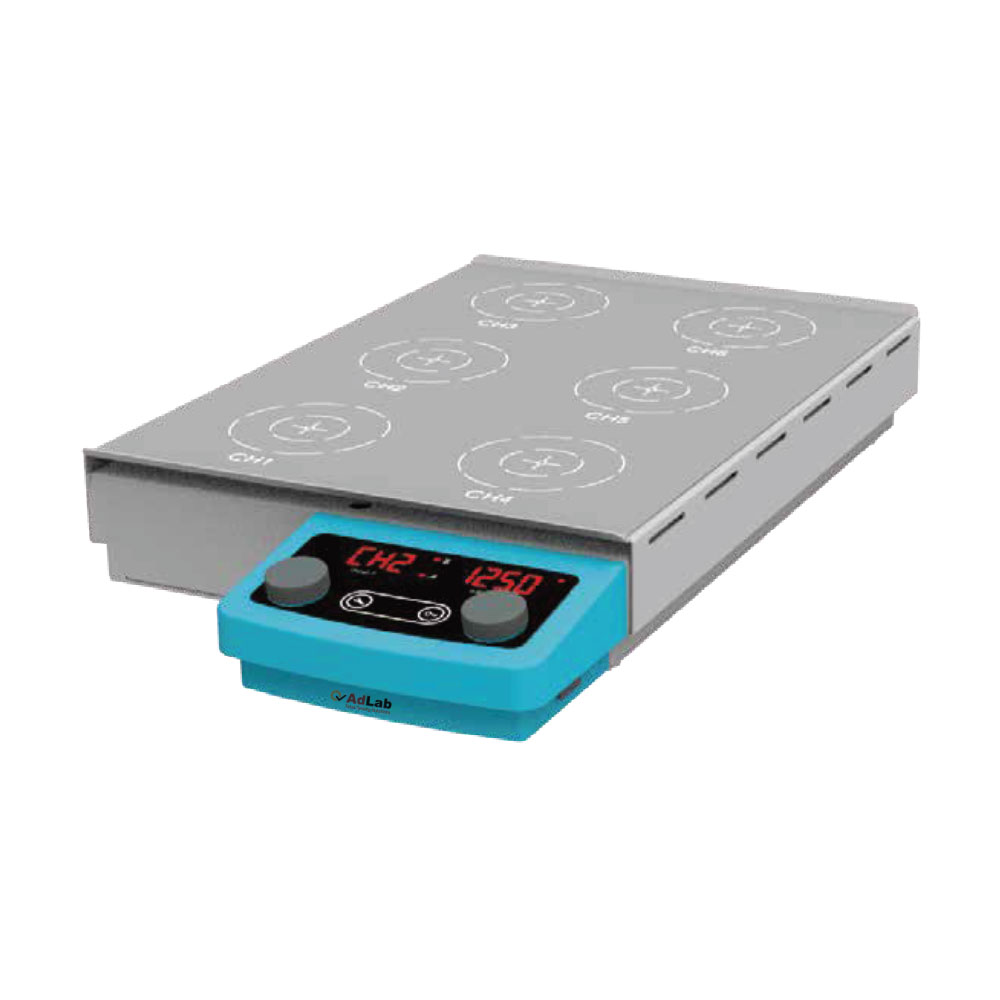

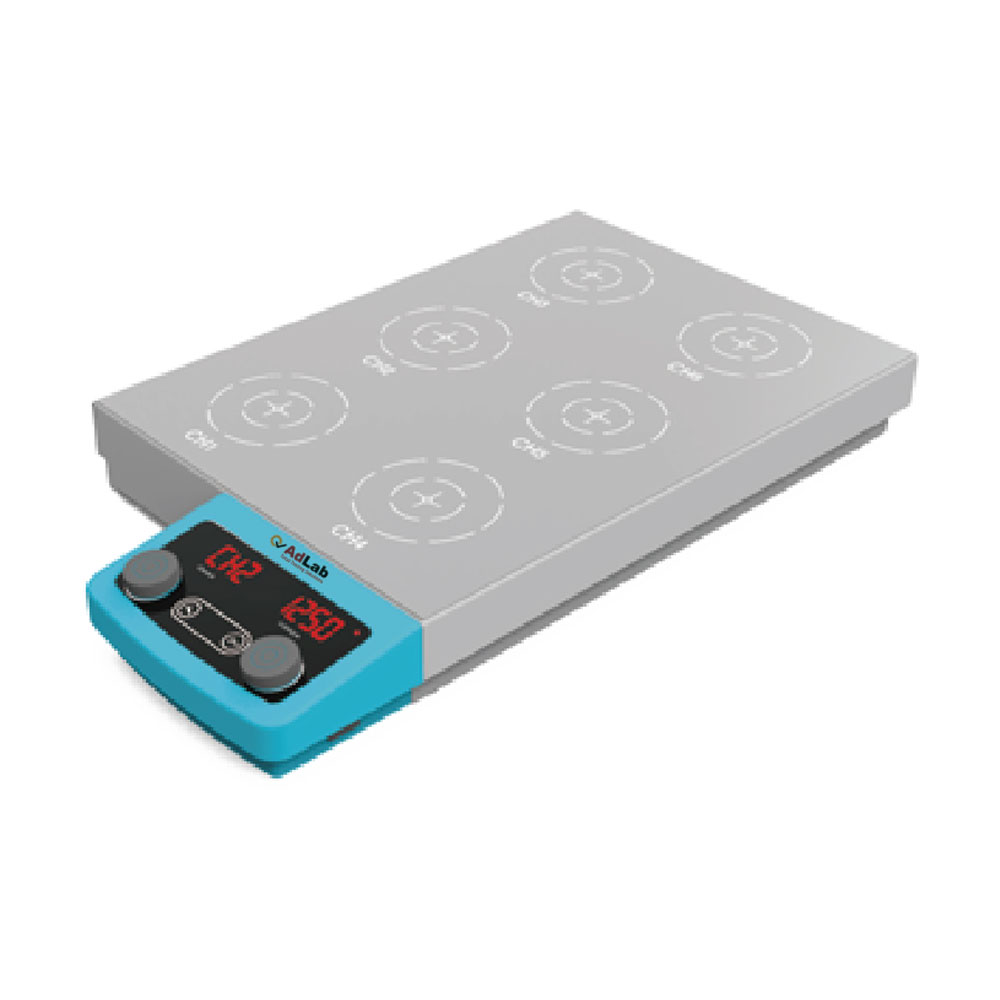

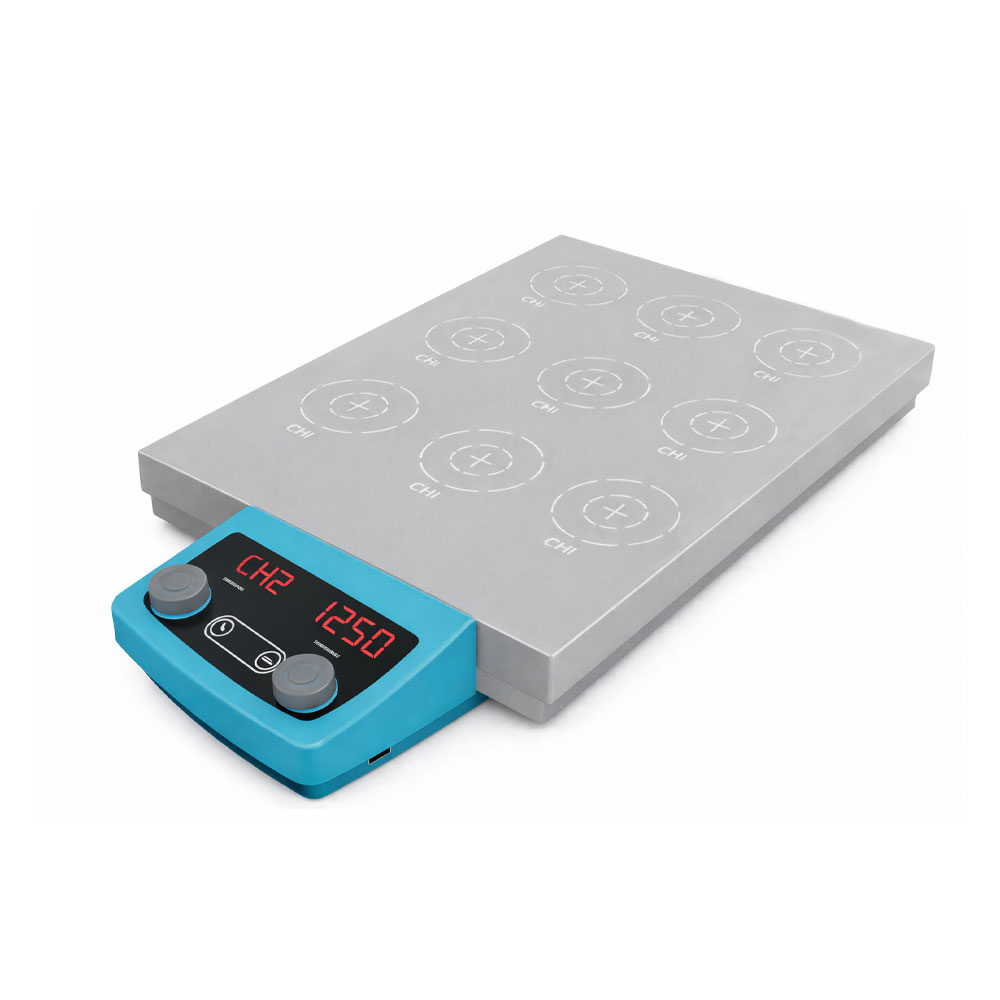

Magnetic Stirrer
Availability: In Stock
Brand: AdLab
Model: ADL-MS3, MS4, MS6, MS7, MS9
Origin: Europe
Magnetic Stirrer
Model: ADL-MS3, MS4, MS6, MS7, MS9
| Technical Parameters | ADL-MS3 | ADL-MS4 | ADL-MS6 | ADL-MS9 |
| Max stirring capacity (H2O) | 3x2L | 4x2L | 6x2L | 9x2L |
| Display type | LED | LED | LED | LED |
| Speed range | 50 – 1500 | 50 – 1500 | 50 – 1500 | 50 – 1500 |
| Stirrer bar length | 20-60mm | 20-60mm | 20-60mm | 20-60mm |
| Plate material | Stainless steel + silicone anti-slip mat | Stainless steel + silicone anti-slip mat | Stainless steel + silicone anti-slip mat | Stainless steel + silicone anti-slip mat |
| Intermittent mode | Y | Y | Y | Y |
| Allowable ambient
temperature and humidity |
5 – 35 °C / 80% | 5 – 35 °C / 80% | 5 – 35 °C / 80% | 5 – 35 °C / 80% |
| Plate size (mm) | 180×450 | 325×305 | 325×450 | 470×450 |
| Product dimension (WxDxH:mm) | 180x560x67 | 325x415x67 | 325x560x67 | 470x560x67 |
| Protection grade DIN EN6052 9 | IP32 | IP32 | IP32 | IP32 |
| Power voltage | 24VDC | 24VDC | 24VDC | 24VDC |
| Technical Parameters | ADL-MS7-Digital |
| Max stirring capacity (H2O) | 20L |
| Motor output | 9w |
| Stirring direction | Clockwise / Counterclockwise |
| Display type | LCD |
| Speed range | 50-1700 |
| Heating power (W) | 1000 |
| Stirrer bar length | 20-60mm |
| Temperature unit | °C |
| Temperature range (plate) | RT-550 |
| Outer temperature sensor | PT1000 |
| Adjustable safe temp. range (°C) | 100-650 |
| Plate material | Y |
| Intermittent mode | Y |
| Timing function | 5 – 40 °C / 80% |
| Allowable ambient temperature and humidity | RS 485 |
| Plate size (mm) | 180×180 |
| Product dimension (WxDxH:mm) | 224×349×108 |
| Protection grade DIN EN6052 9 | IP21 |
| Power voltage | 220-230V 50/60 Hz |
multi-position hotplate magnetic stirrer can achieve asynchronous operation, making experiments more efficient and convenient
The multi-position magnetic stirrer is an experimental instrument with multiple magnetic stirring position at the same time. Each position can independently set the speed, making each mixing experiment more flexible and greatly improve experimental efficiency and space utilization. Widely used in petroleum, chemical, biological and pharmaceutical.
High-performance magnets, high temperature resistance, corrosion resistance, strong magnetic field, strong stirring force
Using brushless DC motor, low noise, long life and high efficiency
Digital display of actual speed; knob to set parameters, convenient to operate.
