Application

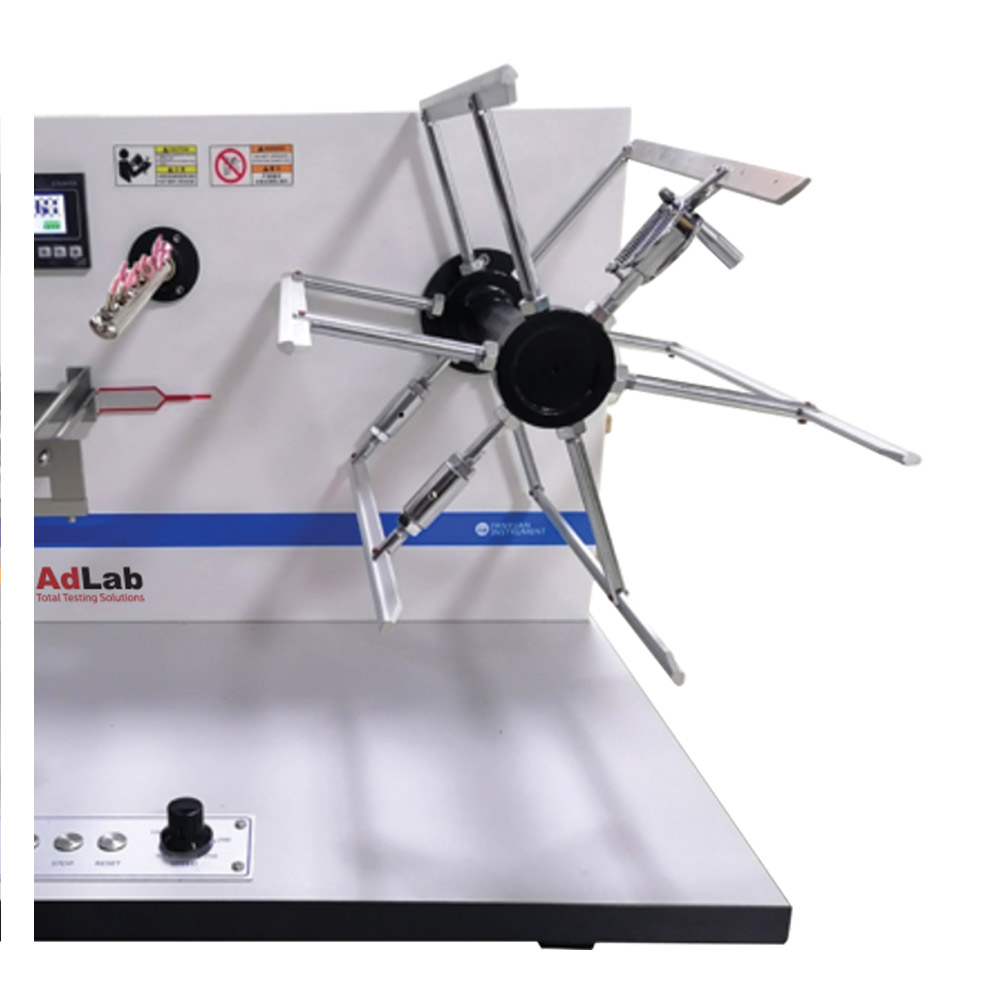

Yarn Wrap Reel is designed to produce up to 6 skeins of yarn of pre-determined length and number of turns for count or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.

Standards

ISO 2060 ASTM D1907

Key Specification

Reel circumference: 1,000 mm (metric system)
Working position no.: 6
Rotating speed of reel: 30-250RPM (stepless adjustable)
Number of turns: 1-9999, LCD display
Tension range: 0~100cN
Reciprocating distance: 35mm
Interval of spindle: 65mm
Power supply: AC220V, 50Hz
Overall dimensions (L×W×H): 780×610×510mm
Weight : About 40kg

Why Choose This Tester?

The Yarn Wrap Reel is a highly reliable instrument designed for accurate preparation of yarn skeins for both count and strength testing. With its ability to produce up to six skeins simultaneously, it significantly improves efficiency while maintaining precision. The adjustable reel speed (30–250 RPM) and programmable turns (1–9999) with LCD display allow for flexibility in testing different yarn types. Its built-in pre-tension device ensures uniform tension throughout the skeins, eliminating inconsistencies and improving test accuracy.

Designed with durability in mind, this tester is compact, easy to operate, and requires minimal maintenance, making it suitable for both laboratories and industrial environments. By complying with international standards like ISO 2060 and ASTM D1907, the Yarn Wrap Reel guarantees reliable, standardized results that meet global quality benchmarks. With robust performance, precision control, and user-friendly operation, this tester is an indispensable tool for textile research, production, and quality assurance.
