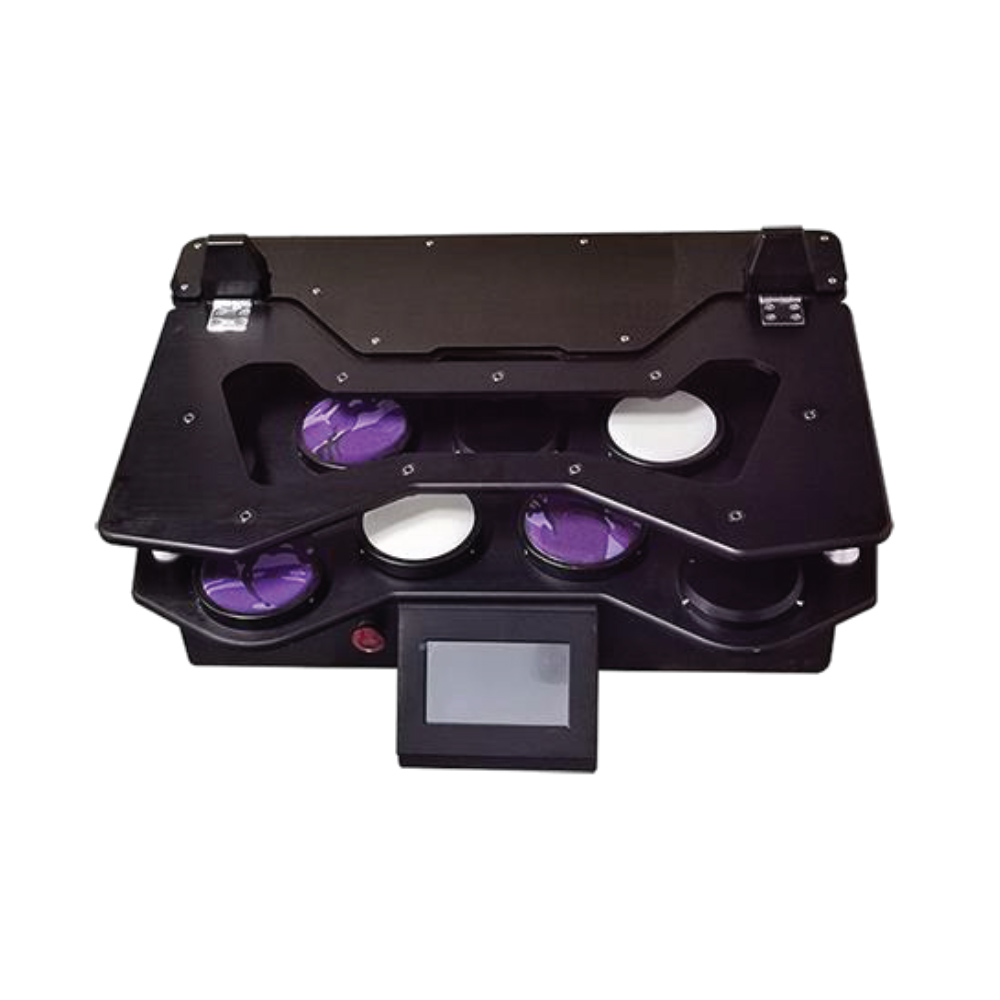

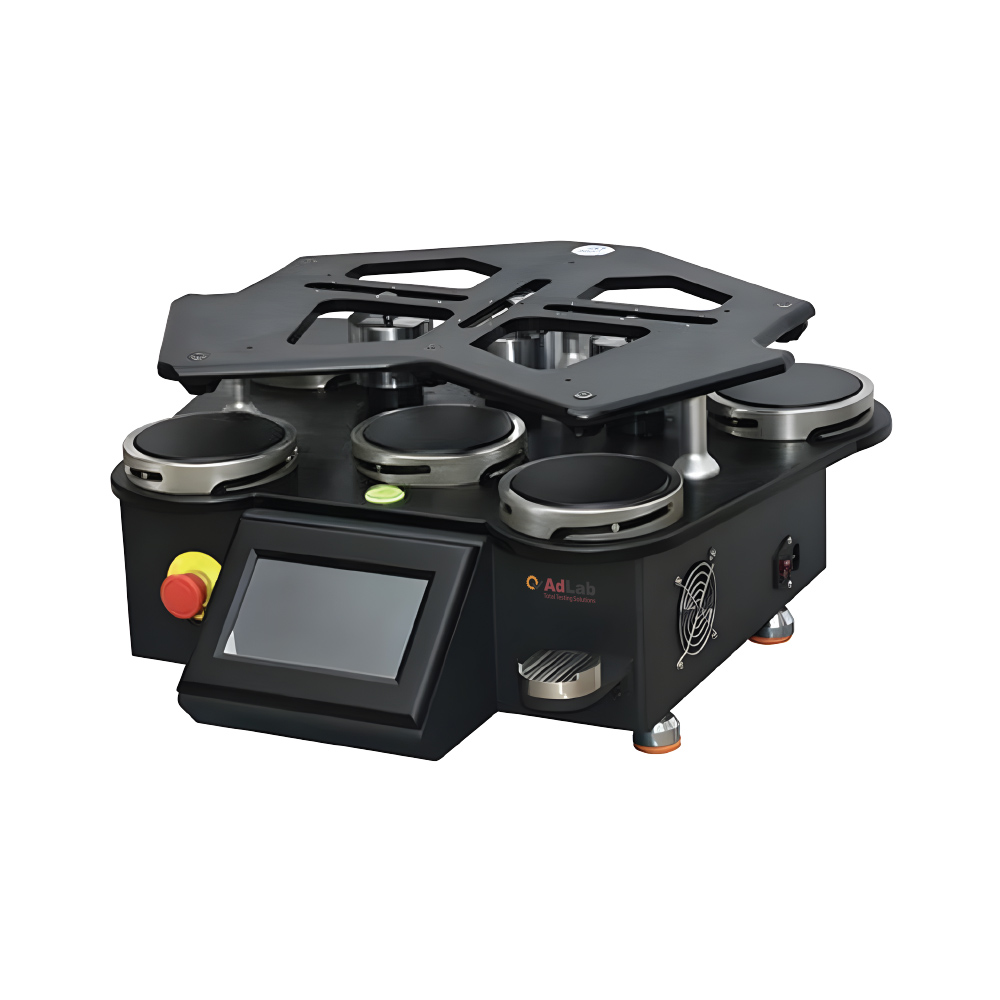

Martindale Abrasion and Pilling Tester

Martindale Abrasion and Pilling Tester used to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abradants at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters.

Feature

Here are some features of Martindale Abrasion and Pilling Tester

• Standard: Lissajous
• Working positions: 4, 5, 9
• The unique design allows removal of individual sample holders for examination without lifting the top motion
• Standard sample holders with 9 and 12kpa weights
• PLc, 7 inches color touch screen, Chinese and English operation interface
• Weights and key components are made up by stainless steel which is well-formed and durable in use
• To prevent distortion, the top motion plate was special made up by 316 aluminum alloy

Key Specification

• Number of working position – 4/5/9
• Test pressure – A: Cloth sample holder 155g±1g, B: Clothing sample weight 260g±1
• Loading hammer mass – 2385g±10g
• Wear resistance stroke – 60.5±0.5mm
• Pilling stroke – 24±0.5mm
• Test speed outer wheel – 47.5±2.5r/min
• Inner wheel – 44.5±2.4r/min
• Test pressure pilling resistance – 595±7g/795±7g
• Test pressure Abrasion resistance – 415±2g
• Flattening weight – weight 2.5±0.5kg diameter 120±10mm
• Controller – PLC touch screen control
• Grinding table diameter – 120mm
• Dimensions – 860×610×380mm
• Power supply – 1∮, AC220V, 5A
• Weight – 80 KG

Standard

ISO 5470, DIN53863/53865, BS 3424/5690, IWTO 40-88, BS EN 388/530, IWSTM 112/196, ASTM 4966/4970, ISO 12673, JIS L1096, SFS 4328, PR EN ISO 12947-1, PR EN ISO 12945-2, SATRA TM31, ISO 20344 S EN ISO 17076, ISO 12947, ISO 12945, GB/T 21196, GB /T 4802, DIN 53863, M&S P19, P19A, P19C, PV 3928

XD-A18 Martindale abrasion and pilling tester 3 Dongguan

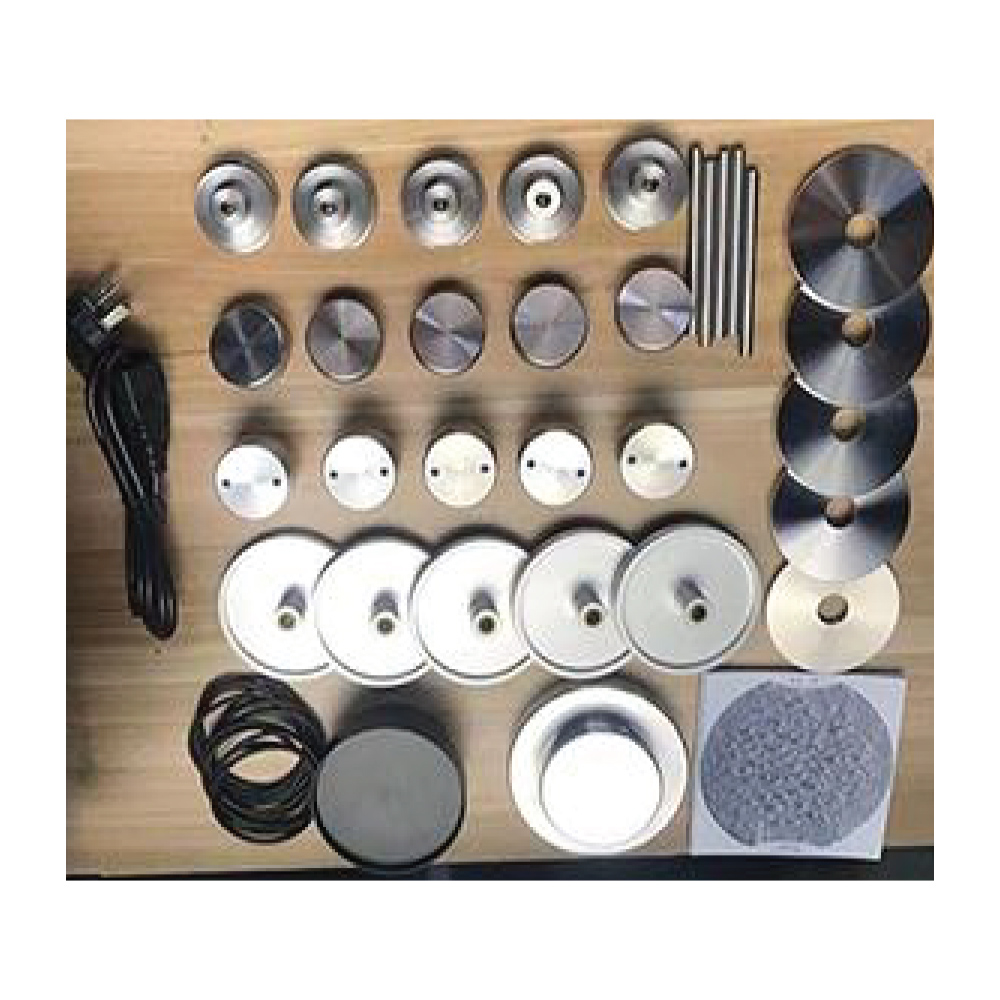

Accessories A

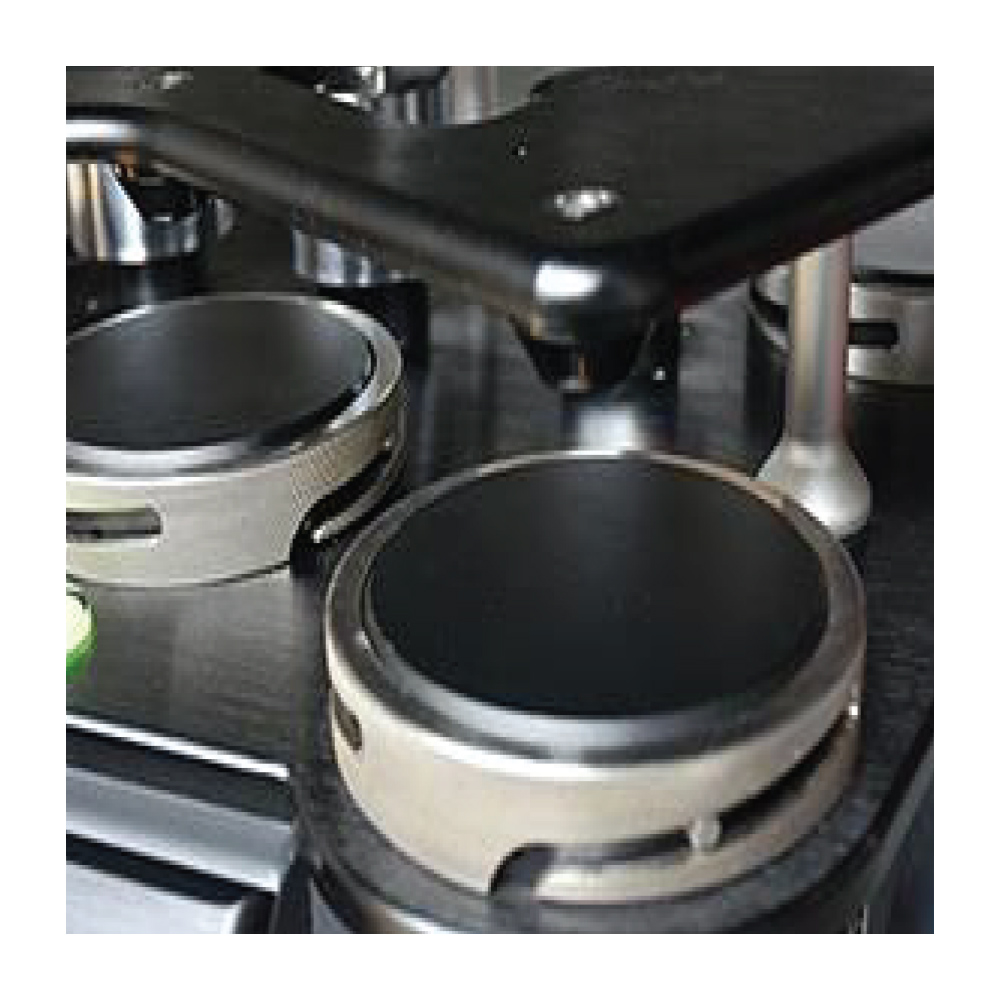

Accessories B
