Overview

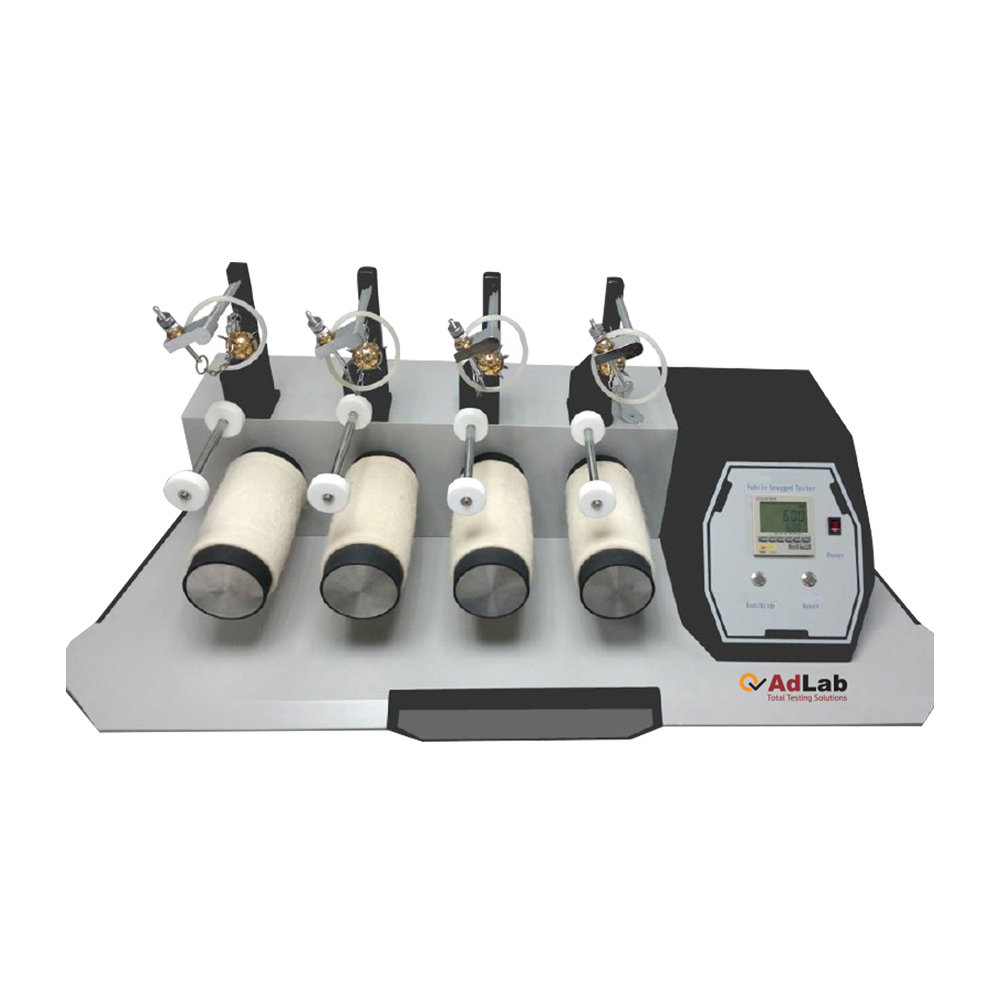

The Fabric ICI Mace Snag Tester is a specialized instrument designed to evaluate the snagging resistance of outerwear knitted and woven fabrics, particularly chemical fiber filaments and textured yarn fabrics. This Tester simulates normal wear conditions by rotating a drum with a chain-suspended hammer, making it ideal for textile manufacturers and quality control labs.

Key Features

Quickly detects fabric snagging tendencies under normal wear using a rotating drum with four test rollers.
Equipped with an observation box and comparison pattern cards for assessing different fabric structures.

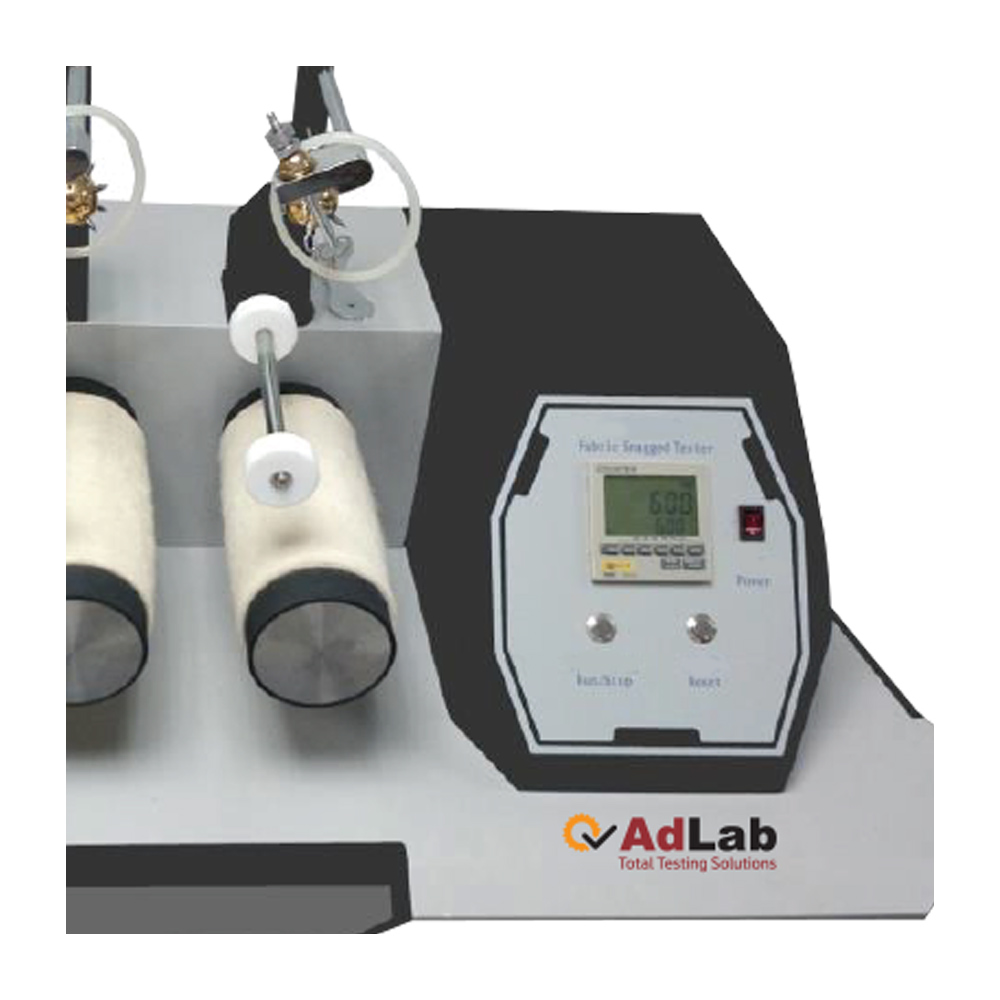

Features a tungsten carbide-headed hammer ball, controlled by a predetermined electronic counter for consistency.
Includes four wool felt cylinders and rubber rings, enhancing test accuracy and durability.
Offers a reliable method to compare snagged samples against standardized rating charts.

Technical Parameter

Working Position: 4
Test Speed: 60 ± 2 r/min
Testing Cylinder: Outer diameter 82 mm, length 210 mm
Total Weight of Mace Ball: 160 ± 10 g/pc
Nails: Exposed length 10 mm, 11 nails/hammer
Needle Exposure Length: Diameter 10 mm, spacing 12 mm
Distance Between Hammer and Guiding Rod: 45 mm
Test Times: 600 times
Specimen Size: 200 x 330 mm, two pieces each in warp and weft directions
Size (W x D x H): 94.5 x 45 x 38 cm
Weight: About 70 kg
Power Supply: 1∮, AC 220V, 3A

Standards Compliant

ASTM D3939, JIS L1058, GB 11047

Standards Accessories

8 rubber rings, 4 wool felt cylinders (Made in China), 1 sampling plate, spacing ruler 45mm

Why Choose the Fabric ICI Mace Snag Tester?

The Fabric ICI Mace Snag Tester is essential for textile manufacturers and labs testing fabric snagging resistance. Since snagging affects garment durability, this tester simulates 600 cycles of wear per ASTM D3939 and GB 11047, identifying weaknesses in knitted and woven fabrics. For instance, it evaluates how easily yarns are pulled from chemical fiber fabrics, ensuring quality. Its four-station design and precise hammer control enhance testing efficiency, while the 70 kg structure offers stability. Compliant with JIS L1058, it meets industry standards. For more details or to request a demo, contact our team today.
