Laboratory Microscope
Availability: In Stock
Brand: AdLab
Model: ADL-B225
Origin: Europe
The Laboratory Microscope is an essential tool for detailed analysis of textile fibers, materials, and samples per industry standards.
Product Specification
| Optical System | Infinity Optical System |
| Achromatic Optical System | |
| Head | Binocular, Inclined at 30º, Interpupillary 48-75mm, 360° Rotatable |
| Trinocular, Inclined at 30º, Interpupillary 48-75mm, 360° Rotatable | |

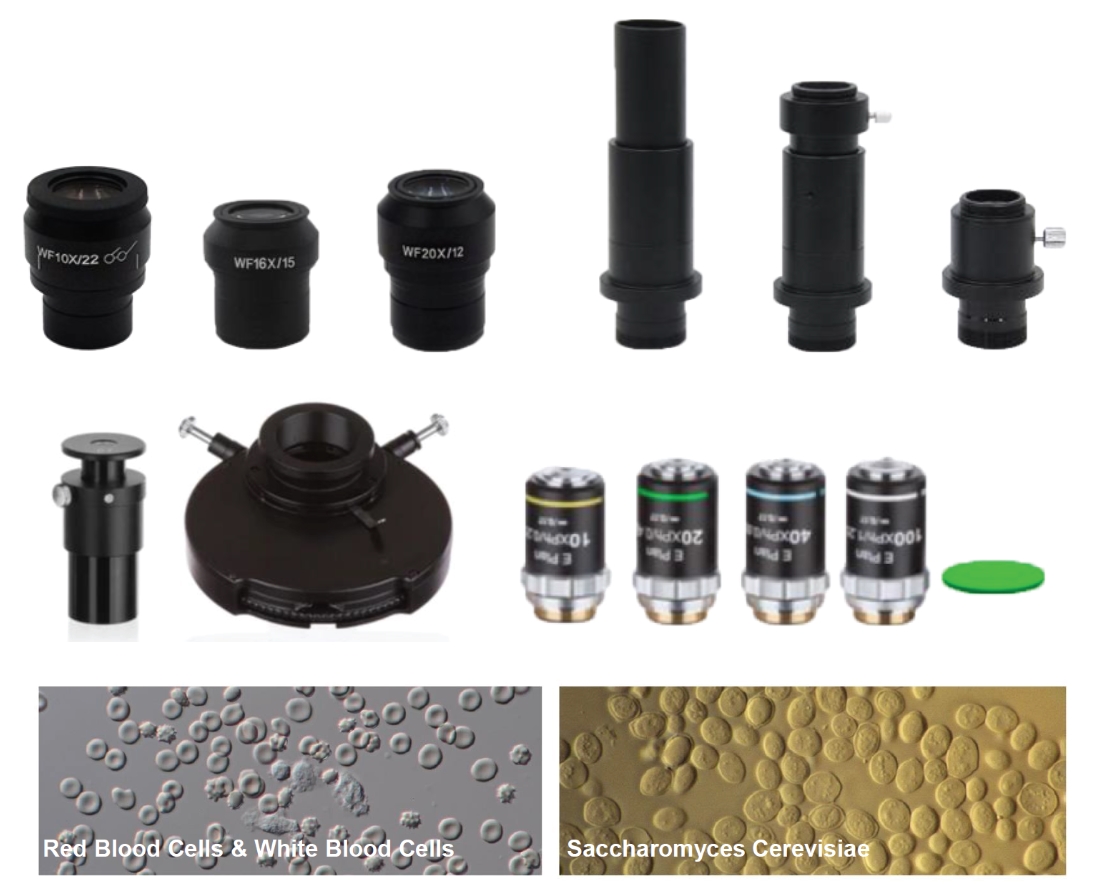

| Eyepiece | WF10x/22mm, H16X PAIR Dia.30mm, High Eyepoint, Diopter Adjustment -/+5 |
| WF10x/20mm, Dia.30mm, High Eyepoint, Diopter Adjustment -/+5 | |
| Nosepiece | Backward Quadruple Nosepiece |
| Objective | Infinite Plan High Contrast Chromatic-free 4X,10X,40X,100X |
| High Contrast Chromatic-free 4X,10X,40X,100X | |
| Magnification | 40X-1000X |
| Condenser | Abbe Condenser NA1.25, with Iris Diaphragm, Center Adjustable |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 24mm, With Safety Stop Screw, Tension Adjustable |

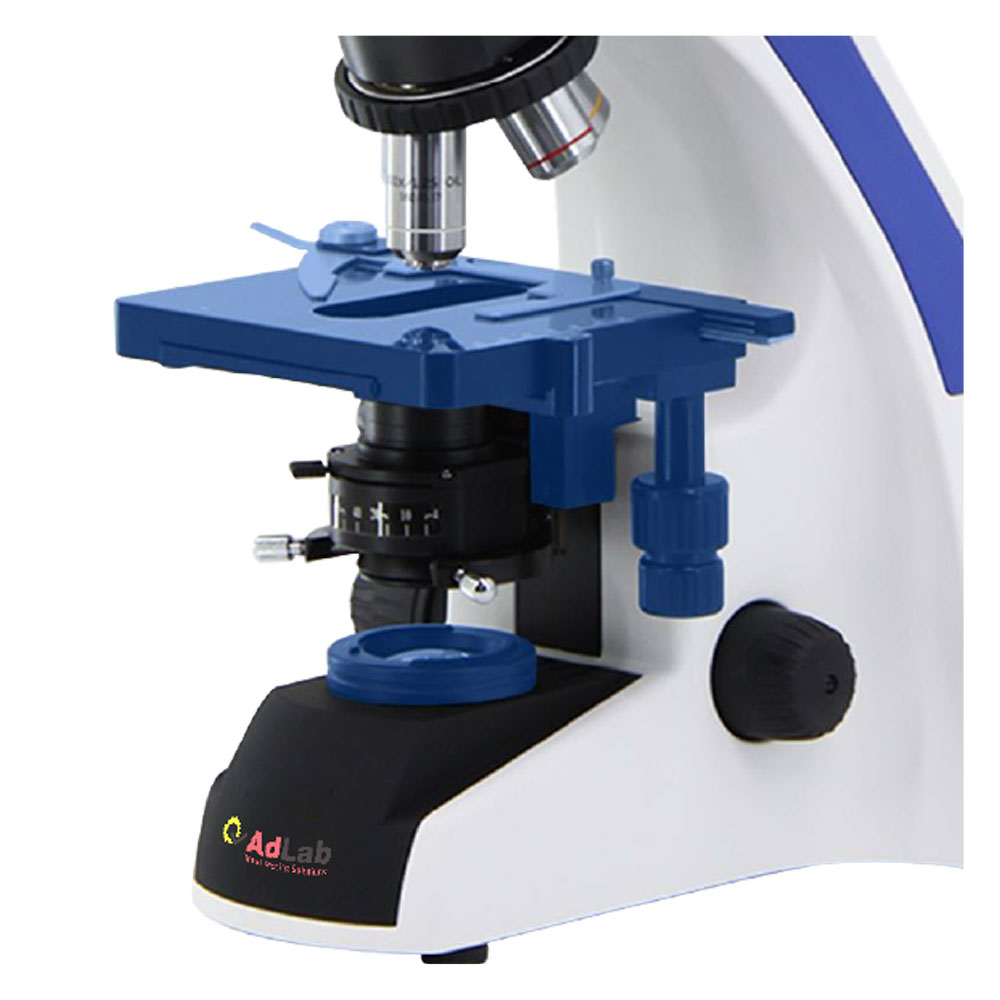

| Working Stage | Large Size Double Layer Mechanical Stage 216x150mm, Graphite Surface, Moving Range 75mmx55mm, Reckless Safety Round Edge |
| Large Size Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75mmx50mm | |
| Light Source | Kohler Illumination, 3W/LED, Brightness Adjustable, With Blue Filter |
| External Illumination, 3W/LED, Brightness Adjustable, With Blue Filter | |
| Adapter | C-Mount 0.5x |
Why Choose the Laboratory Microscope?
The Laboratory Microscope uses an Infinity and Achromatic Optical System to deliver sharp, chromatic-free images. It features a binocular or trinocular head, inclined at 30° and rotatable 360°, along with WF10x wide-field eyepieces that provide high eye-point comfort and adjustable diopters. A backward quadruple nosepiece holds plan high-contrast objectives (4X–100X), giving a magnification range of 40X–1000X with excellent clarity.
The microscope integrates an Abbe condenser NA1.25, coaxial coarse and fine focusing (0.002mm accuracy), and a large double-layer mechanical stage with a graphite surface for smooth and precise sample handling. Kohler 3W LED adjustable illumination with a blue filter and an additional external LED light ensure consistent brightness.
This durable, ergonomic, and high-accuracy microscope supports laboratories, research centers, and educational institutions that require reliable high-resolution imaging.
