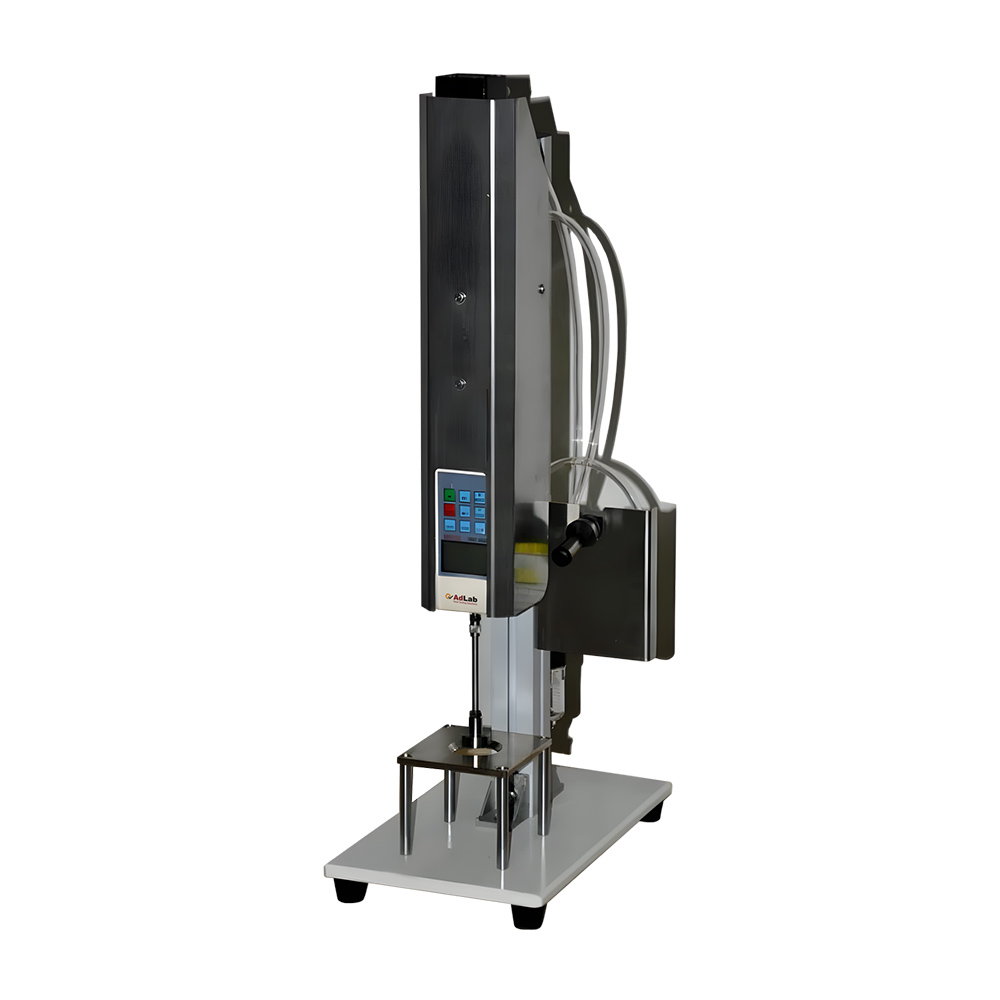

The Digital Fabrics Stiffness Tester is a precision instrument designed to determine the stiffness of fabrics using the ASTM circular bend test method. This Digital Fabrics Stiffness Tester is ideal for evaluating the flexibility and rigidity of various textiles, making it essential for textile manufacturers and quality control labs. With its advanced features, it ensures accurate stiffness assessments.

Related Standards:

STANDARDS

ASTM D4032

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Features

Adopt circular bend procedure, easy to perform;

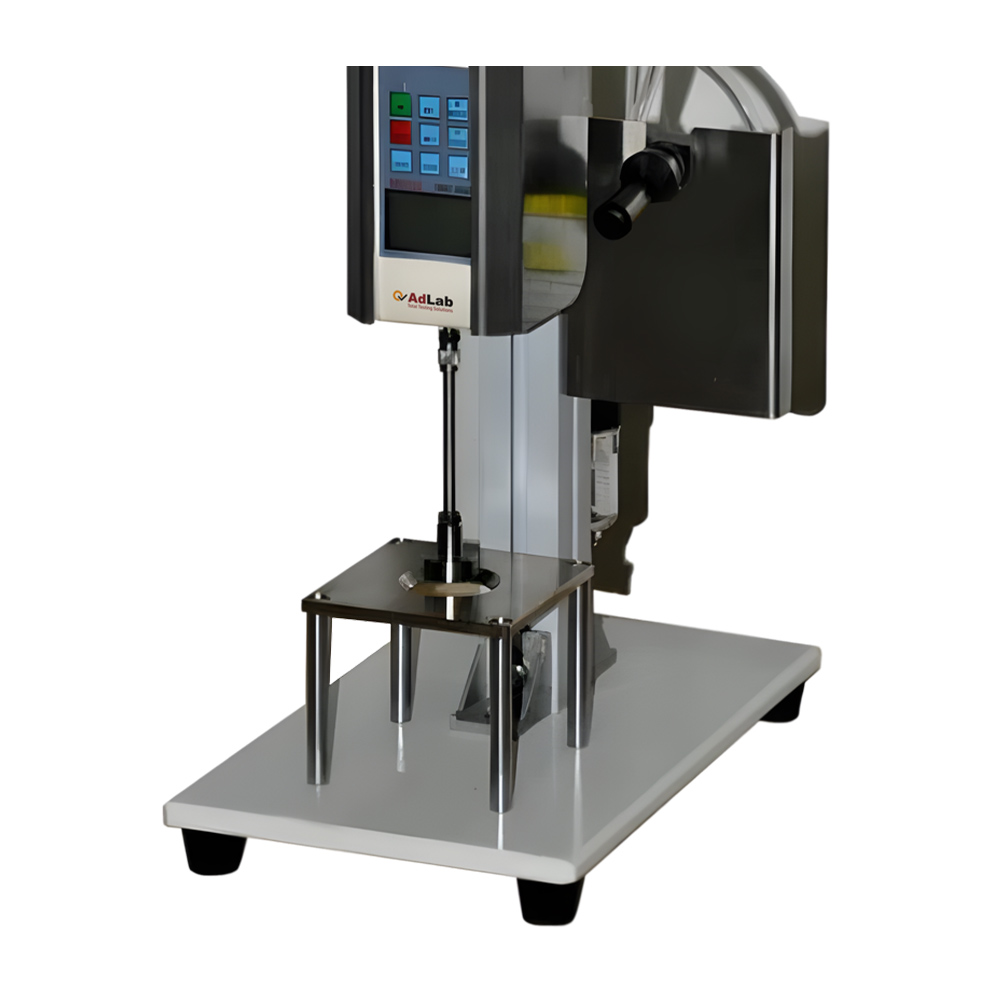

Smooth-polished chrome-plated steel plate platform;

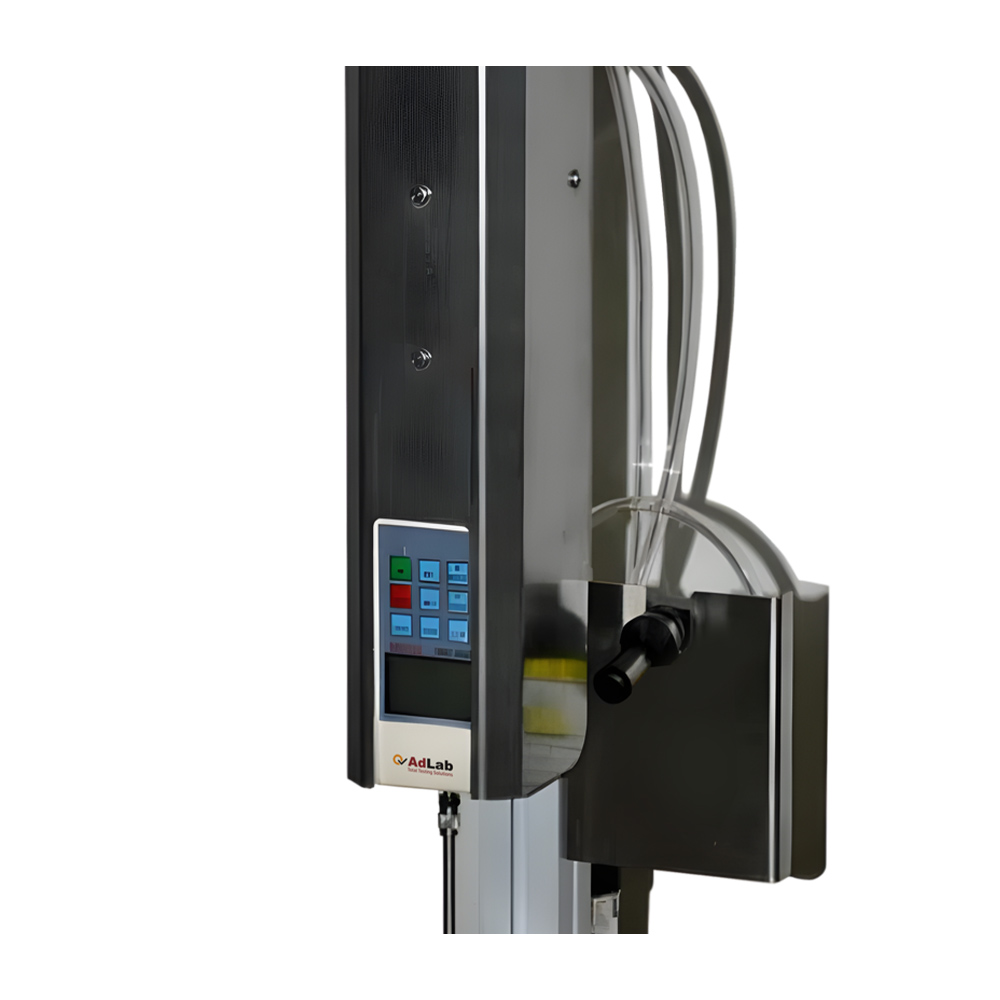

High precise digital force gauge with maximum reading “hold” feature;
Surface electrostatic paint spraying, make it excellent durability; Optimized mechanical structure, the air outlet of the cylinder is
coaxial with the pressure head, which make it high stability;

Key Specification

Actuator mode – Pneumatic
Platform size – 102*102mm
Orifice diameter – 38.1mm
Template – 102*204mm
Plunger diameter – 25.4mm
Downward stroke – 57mm
Gauge capacity – 500N
Dimensions – 23*33*66cm (L*W*H)
Net weight – 15kg

Standard Configuration

No	Item	Quantity
1	Main machine	1 set
2	Force gauge	1 pc
3	Template	1 pc

Optional Accessories

Air compressor

Why Choose the Digital Fabrics Stiffness Tester?

The Digital Fabrics Stiffness Tester is crucial for textile manufacturers and labs assessing fabric flexibility. Since stiffness affects drape and performance, this tester measures resistance to bending per ASTM D4032, ensuring quality across woven and knitted fabrics. For example, it evaluates how fabrics respond to a 57 mm stroke, providing insights into durability and comfort. Its pneumatic actuator and digital gauge enhance precision, while the lightweight 15 kg design suits various lab environments. Compliant with industry standards, it supports product development. For more details or to request a demo, contact our team today.
