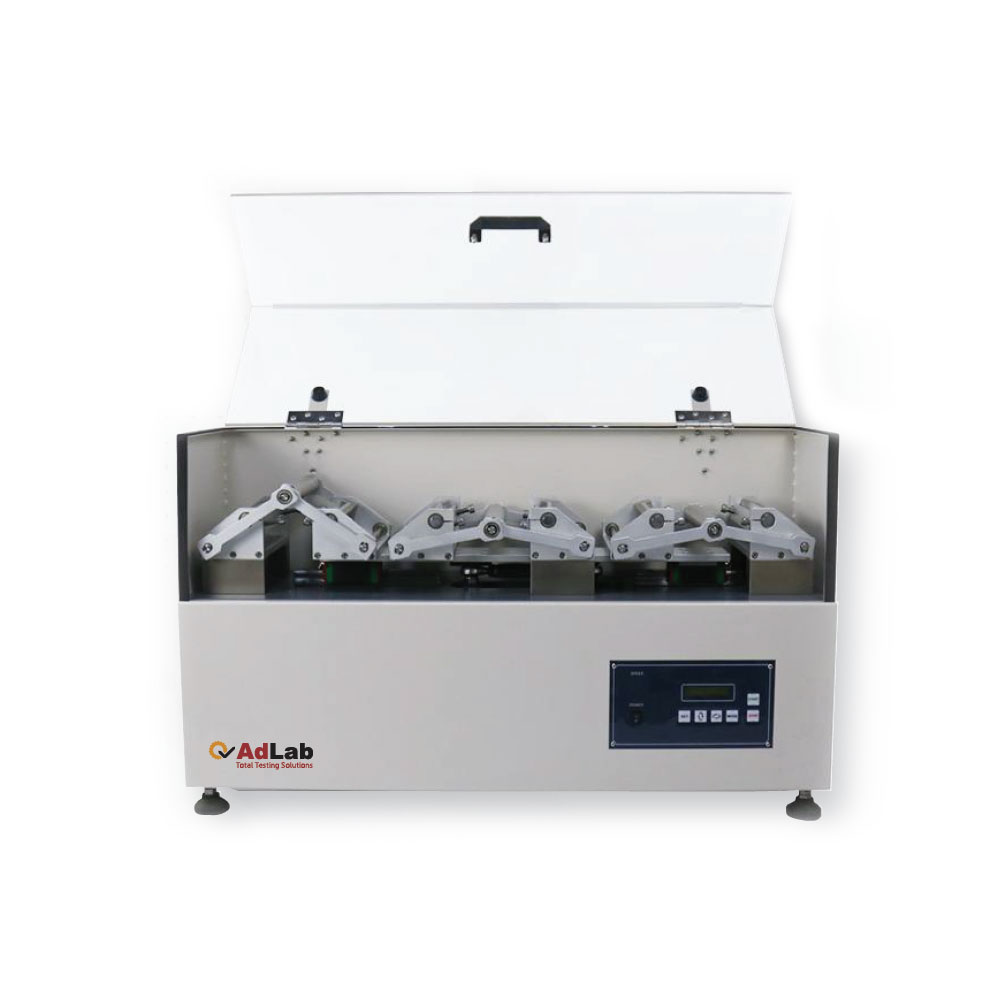

EN Sole Flexing Tester

Application

This tester is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one mov-able. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the speci-men and check its difference of incision length.

Standards

SATRA TM161, ISO 17707, ISO20344 section8.4.2, ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2
GB/T 20991 section8.4.2, QB/T 2885, DIN 53543

Specification

• Test position : 3, 6
• Bending angle : 90±2°
• Bending speed : 125-150cpm
• Mandrel diameter : 30 mm
• Clamps apart : 110±1mm
• Movable fixture stroke : 41.5 ± 0.5 mm
• Counting : LCD, 0-9999999
• Power supply : 1AC 220V 50/60HZ
• Dimensions : 105x42x55cm, 105x70x55cm
• Weight : 80kg, 100kg

Accessories

Standards Accessories
Spanner: 1set
Chisel cutter (2mm): 1pc
Power line: 1pc
