Application Function

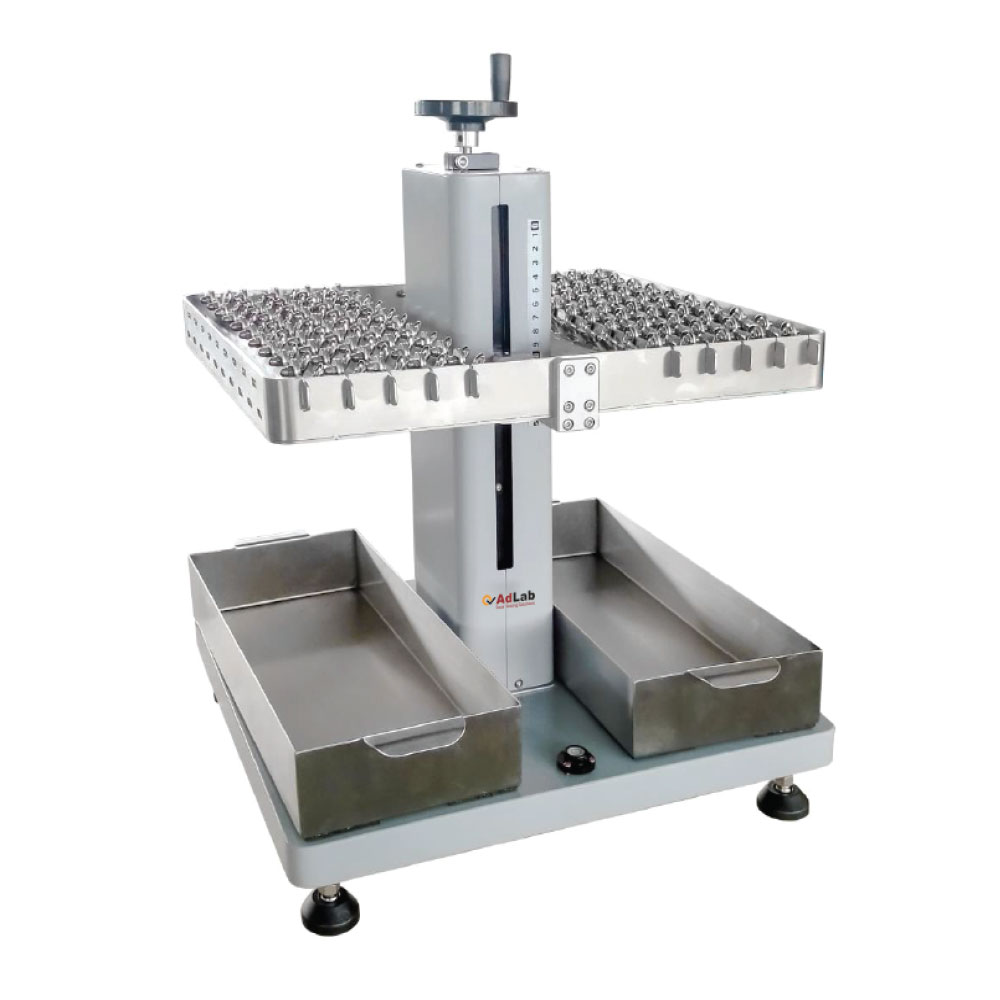

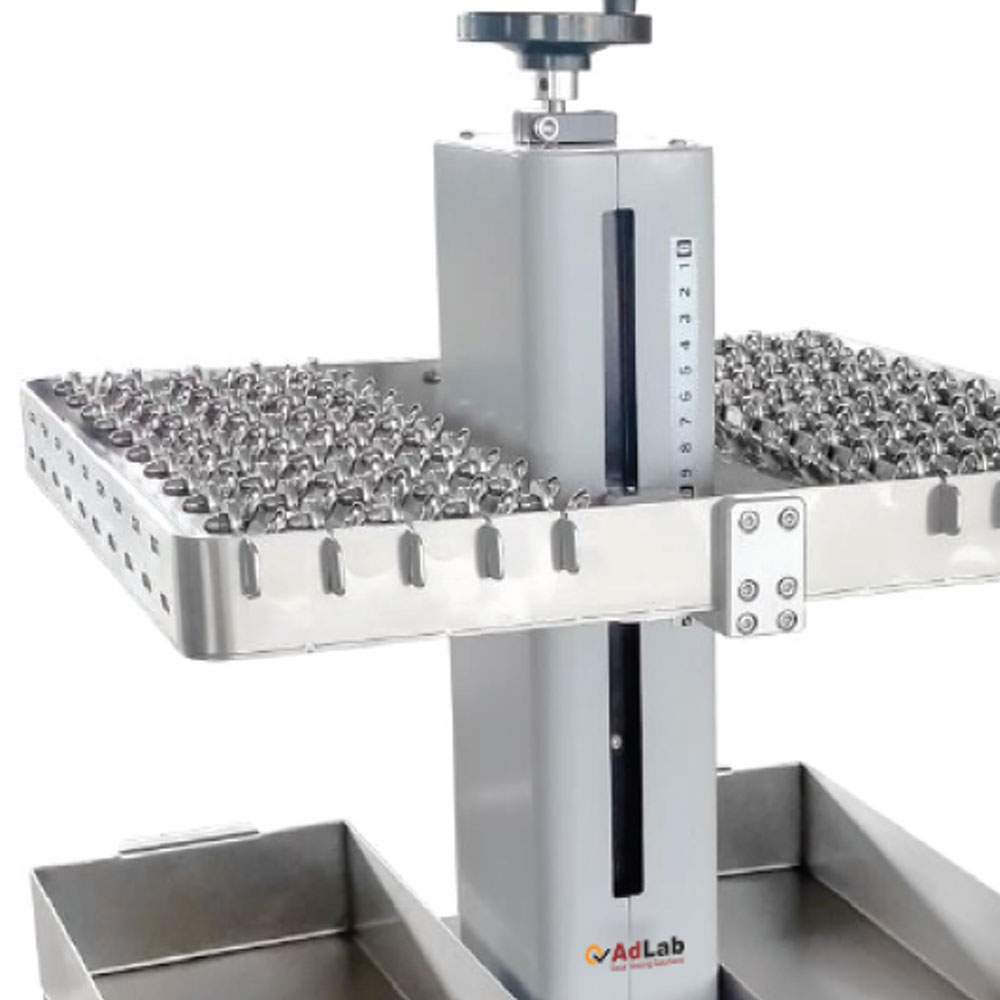

The Color Bleeding Tester evaluates the tendency of dyed or printed fabrics to transfer color onto adjacent white cloth during washing or exposure to rain. It is especially suitable for fabrics containing multiple colors, contrasting shades, or patterned designs. The tester features a durable stainless steel frame, adjustable specimen height, and a practical clamping system that accommodates up to 100 samples. Its straightforward design supports efficient laboratory testing, helping textile manufacturers and quality-control laboratories assess color bleeding performance consistently.

Features

Stainless steel frame;
Adjust height by spiral lift rod;
Easy installation and use;
Up to 100 sample clamps can be installed.

Key Specifications

Number of sample clamp : 100
Sample clamp width : 30mm
Specimen holder size : 420×340mm
Lift range : 150mm
Tank size : 370×160mm
Dimensions : 430×390×530mm (L×W×H)
Net weight : 16kg Appx.

Standard Configuration

Main machine : 1 set
Tank : 2 pcs
Sample clamp : 100 pcs

Why Choose the Color Bleeding Tester?

The Color Bleeding Tester provides a simple and efficient way to evaluate color transfer in textile materials. Its stainless steel frame offers durability and supports regular laboratory use. The spiral lift rod allows technicians to adjust the specimen height easily, giving greater flexibility during testing. With 100 sample clamps, the tester can handle multiple specimens in a single setup, improving laboratory productivity. The 30mm-wide clamps securely hold samples, while the 420×340mm specimen holder accommodates suitable fabric arrangements. Its compact 430×390×530mm dimensions help save laboratory space, and the approximately 16kg weight makes handling convenient. The tester also includes two tanks and 100 sample clamps, providing a practical standard configuration for routine color bleeding evaluation.
