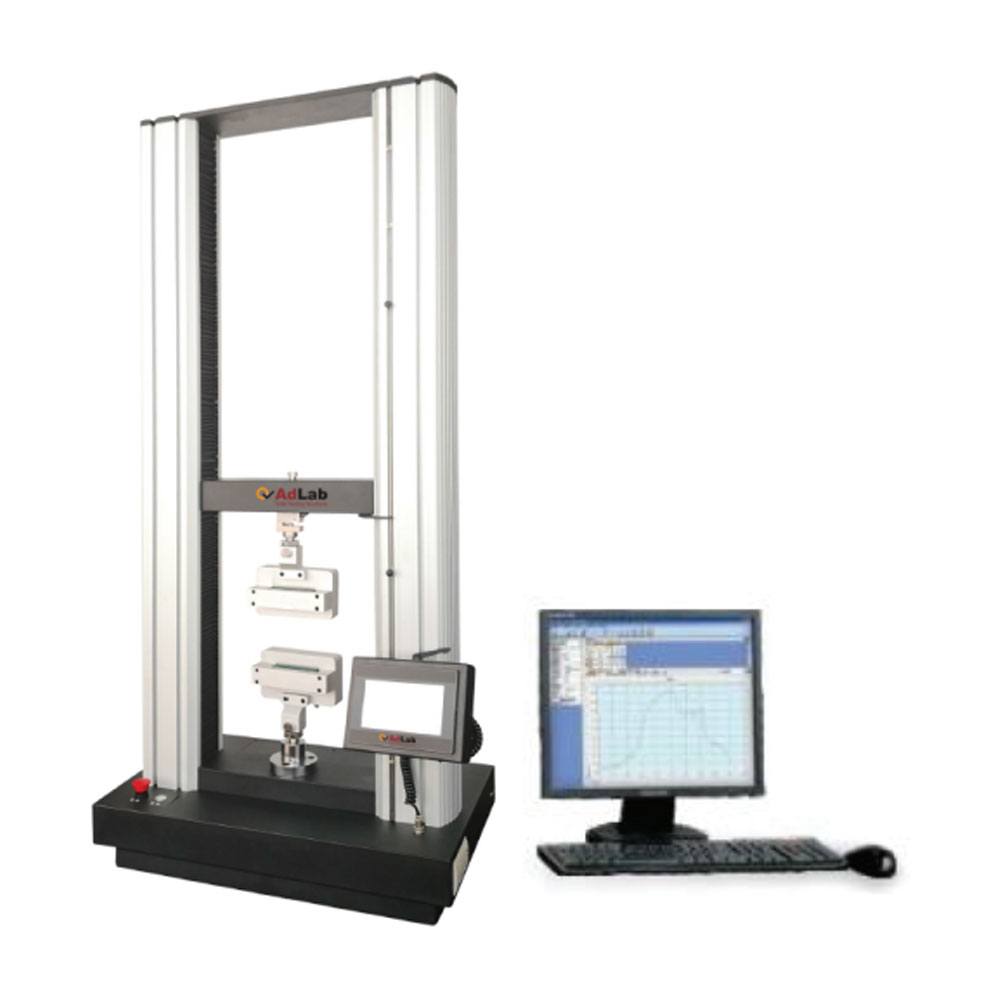

Electronic Universal Strength Tester

Scope of Application

It is used to test the mechanical properties of various textiles such as stretching, tearing, bursting, constant elongation, constant load, elasticity, suture slippage, peeling, etc. It is widely used in rubber, plastic, leather, Force value, elongation, and deformation test for metal, wire, paper, packaging, building materials, petrochemical, electrical, and geotechnical materials for tensile, compression, bending, bonding, peeling, tearing, bursting, and creep tests.

Testing Standards

GB/T3923.1/2 FZ/T70006 FZ/T70007 ISO4606
GB/T13772.1/2/3 FZ/T20019 FZ/T01030 ISO9073.3/4
GB8687 FZ/T01085 ISO13934.1/2 ISO13935.1/2 ASTM D5034
ASTM D5035 ASTM D2261 ASTM D4964 ASTM D5587 ASTM D3936
ASTM D1683 (Substitute434) JIS L1096etc.

Instrument Characteristics

The sampling frequency is up to 1000 times per second.
Imported servo drive.
Modular design, support online communication and bidirectional control.

Technical Specification

• Test methods: According to the international preferred isokinetic elongation (CRE) principle
• Sampling rate: 1000 times/sec
• Range of force measurement: Full scale 1%~100% model
• Test accuracy: ≤0.2%F S
• Clamping method: pneumatic and manual
• Stretching speed: 1~500mm/min
• Effective stroke: 800mm
• Elongation resolution: 0.01mm
• Gantry width: 400mm
• Power source: AC220V±10% 50Hz 750W
• Dimensions: 750×450×1550mm
• Weight: 150kg
