Hotplate Magnetic Stirrer

Hotplate magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used for stirring or simultaneous heating and stirring of low viscosity liquid or solid-liquid mixture.

With the heating temperature control system, the sample temperature can be heated and controlled according to specific experimental requirements, maintaining the temperature conditions required for the experimental conditions, and ensuring that the liquid mixing meets the experimental requirements.

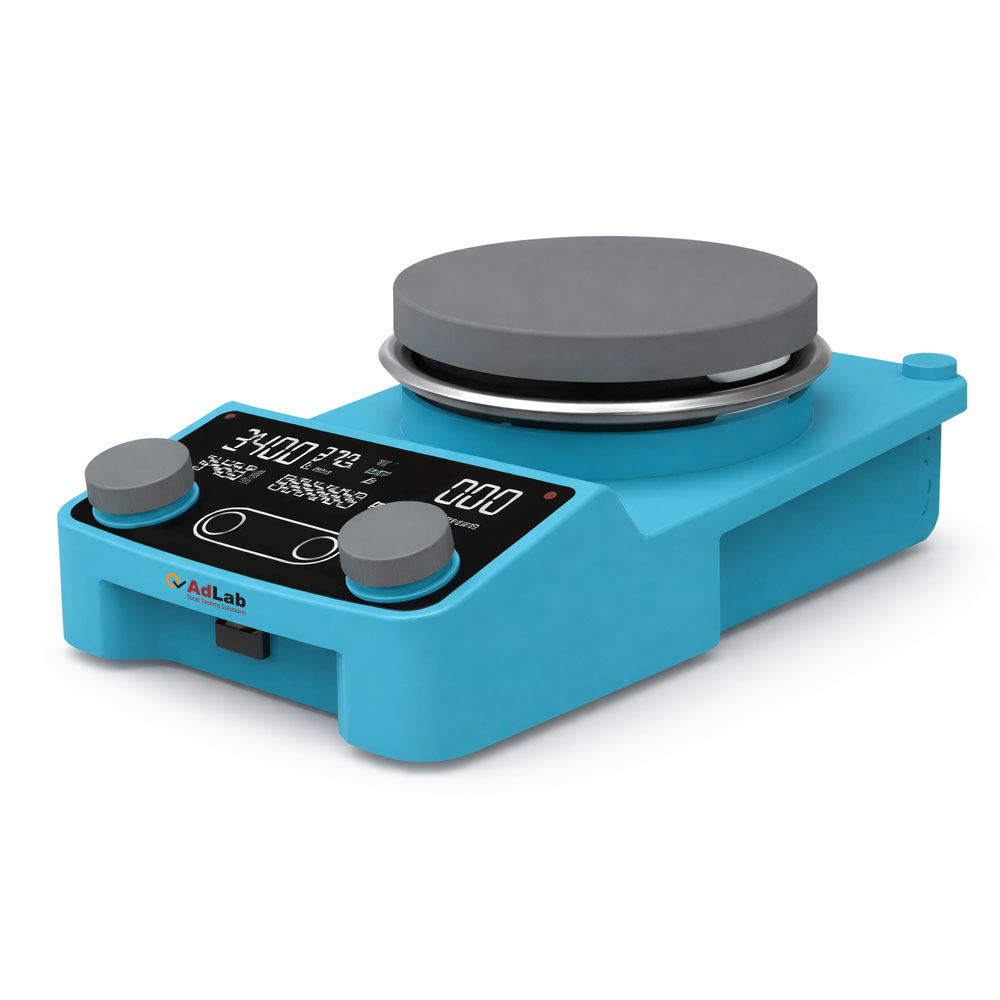

ADL-MST-Digital

/// Classic hot plate Magnetic Stirrer

• The classic MST-Digital hot plate magnetic stirrer with a power of 550w is ideal for stirring tasks.
• The MST-Digital hot plate magnetic stirrer has a multi-function menu, can choose the stirring direction, use the timer function or choose the heating and operating mode. These options can be set independently throughout the stirring process.
• The working surface of the MST-Digital hotplate magnetic stirrer is made of ceramic-coated metal, which provides excellent chemical resistance.
• Large LED display, easy to operate

Technical Parameters

• Max stirring capacity (H2O): 20L
• Motor output: 9w
• Stirring direction: Clockwise/Counterclockwise
• Display type: LCD
• Speed range: 50-1700
• Heating power(W): 750
• Stirrer bar length: 20-60mm
• Temperature unit: °C/°F
• Temperature range (plate): RT- 340°C
• Outer temperature sensor: PT1000
• Adjustable safety temp. range(°C): 28-370
• Plate material: Aluminum alloy ceramic coating
• Intermittent mode: Y
• Timming function: Y
• Allowable ambient temperature and humidity: 40 °C /80%
• Communication interface: RS 485
• Plate size(mm): φ138
• Product size (WxDxH: mm): 160 * 272 * 97
• Protection grade DIN EN6052 9: IP42
• Power voltage: 220V 50HZ
