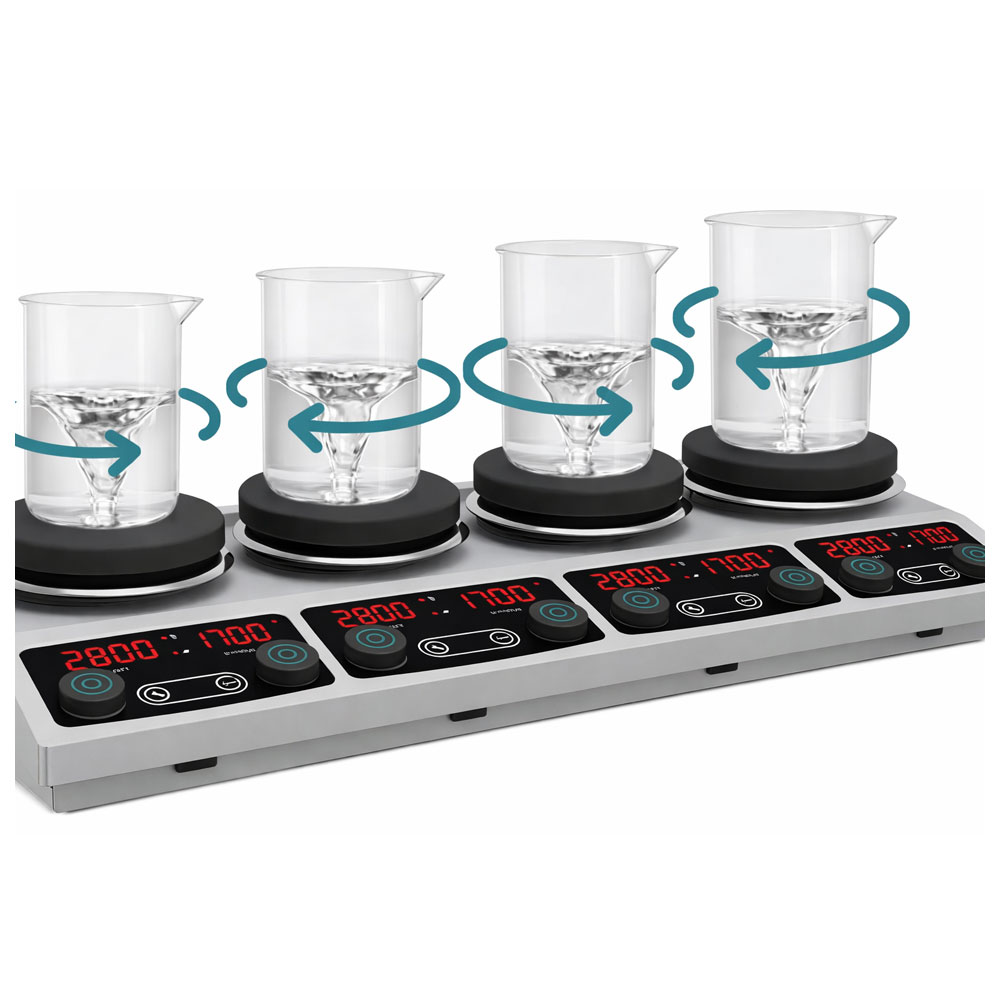

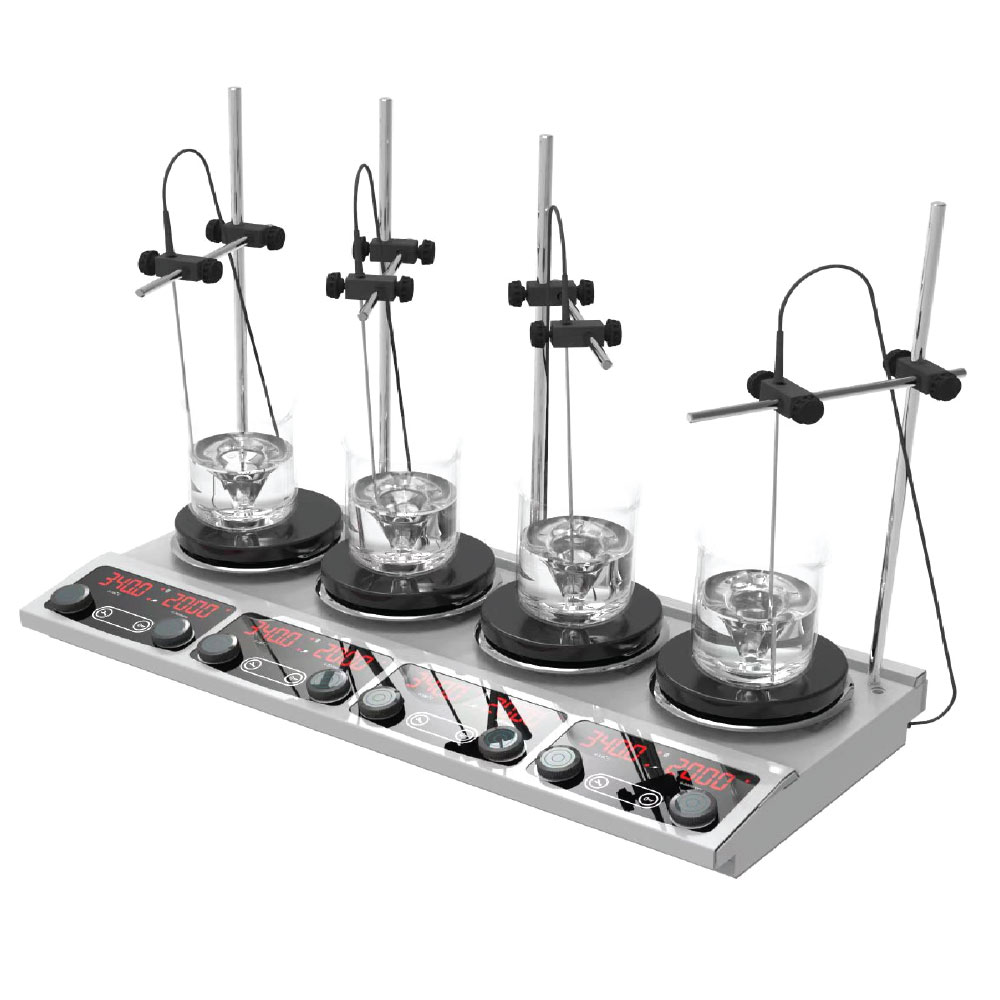

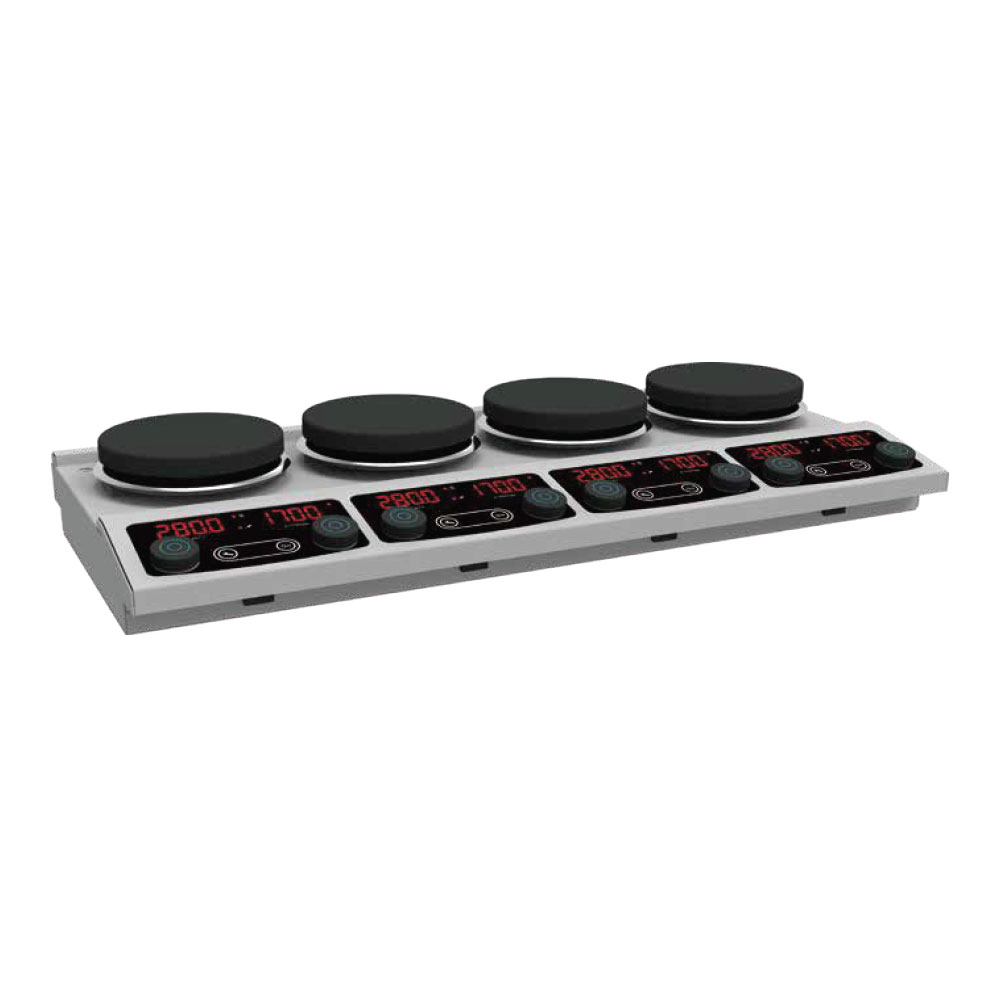

4-Position Magnetic Stirrer

4-Position independent temperature-controlled magnetic stirrer is an experimental instrument that has four magnetic stirring stations at the same time and can complete the sample temperature control reaction at each station. Each station can independently set the temperature and speed, so that each mixing station can be Experiments are more flexible, greatly improving experimental efficiency and space utilization.

Widely used in petroleum, chemical, chemical, biological and pharmaceutical industries.

ADL-MS4B

/// 4-Position independent temperature controlled magnetic stirrer

• Each position uses an independent heating plate and an independent brushless DC motor, without inter – ference between each other
• Self-diagnosis function: When the equipment fails, the fault information is displayed to facilitate the fault point.
• Each station uses an independent high-performance magnet, which is resistant to high temperatures, corrosion, strong magnetic field, and high stirring intensity.
• Independent controllers and knobs to set parameters, convenient and fast.

Technical Parameters

• Max stirring Capacity (H2O) – 4x10L
• Motor output – 4x15W
• Stirring Direction – Counterclockwise/clockwise
• Display Type – LED
• Speed Range – 50-1700 (2000 optional)
• Heating Power (W) – 550
• Stirrer bar length – 20-60mm
• Temperature unit – °C/°F
• Temperature range (Plate) – RT-340°C
• Outer temperature sensor – PT1000
• Adjustable safe temp. (°C) – 28-370
• Plate material – Aluminum alloy with ceramic coating
• Intermittent mode – Y
• Allowable ambient temperature and humidity – 5 + (- 40) %
• Plate size (mm) – φ138
• Product dimension (WxDxH: mm) – 660 * 294 * 96
• Protection grade DIN EN6052 9 – IP32
• Power voltage – 220V 50HZ
