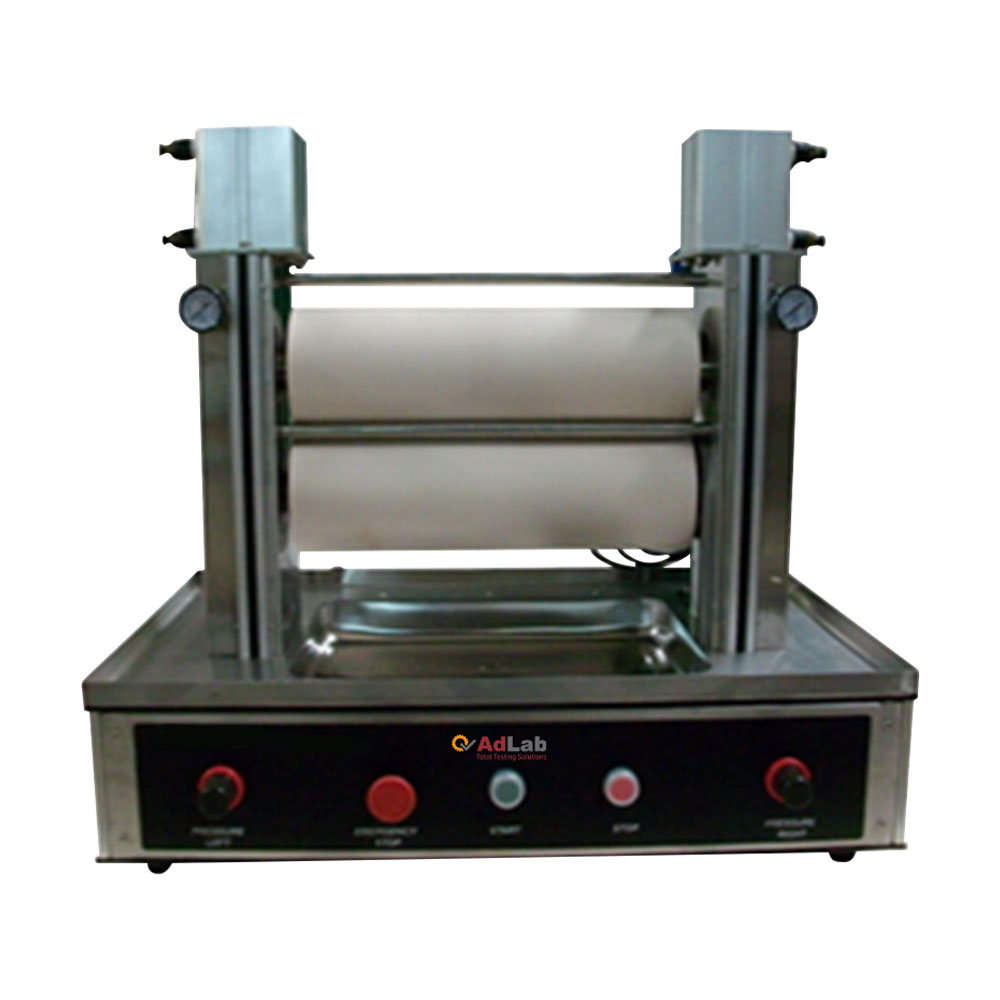

Laboratory Padder (Vertical)

Introduction

The ADL-LP40 Laboratory Padder (Vertical) is a compact, table-type padding mangle designed for resin and dye application in textile laboratories. It ensures precise pressure control and uniform chemical pick-up, making it ideal for sampling, research, and quality control processes. Built with high-quality rubber rollers and a sturdy structure, it delivers consistent and reliable performance.

Features

• Table-type vertical laboratory padder
• Suitable for resin and dye padding
• High-quality Butadiene Rubber (NBR) rollers
• Emergency foot stop for safety
• Stable padding speed (~3.2 m/min)
• Compact and durable construction

Specification

• Mangle pressure : 0.1 – 0.8Mpa (1 – 8bar)
• Padder Length : 400 mm
• Padder Diameter : 125 mm
• Padder Hardness : Approx. 70–75° Shore A
• Solution Tray Capacity : 2 Litres
• Speed : Approx. 3.2 m/min
• Voltage : 220V AC / 50 Hz
• Power : 180W
• Current : 1A
• Machine Net Weight : 68 Kg Appx
• Packing Weight : 111 Kg Appx.
• Machine Dimensions : 750 × 560 × 685 mm (W×D×H)
• Packing Dimensions : 870 × 680 × 825 mm (W×D×H)
