Dual Position Laboratory Padder

Introduction

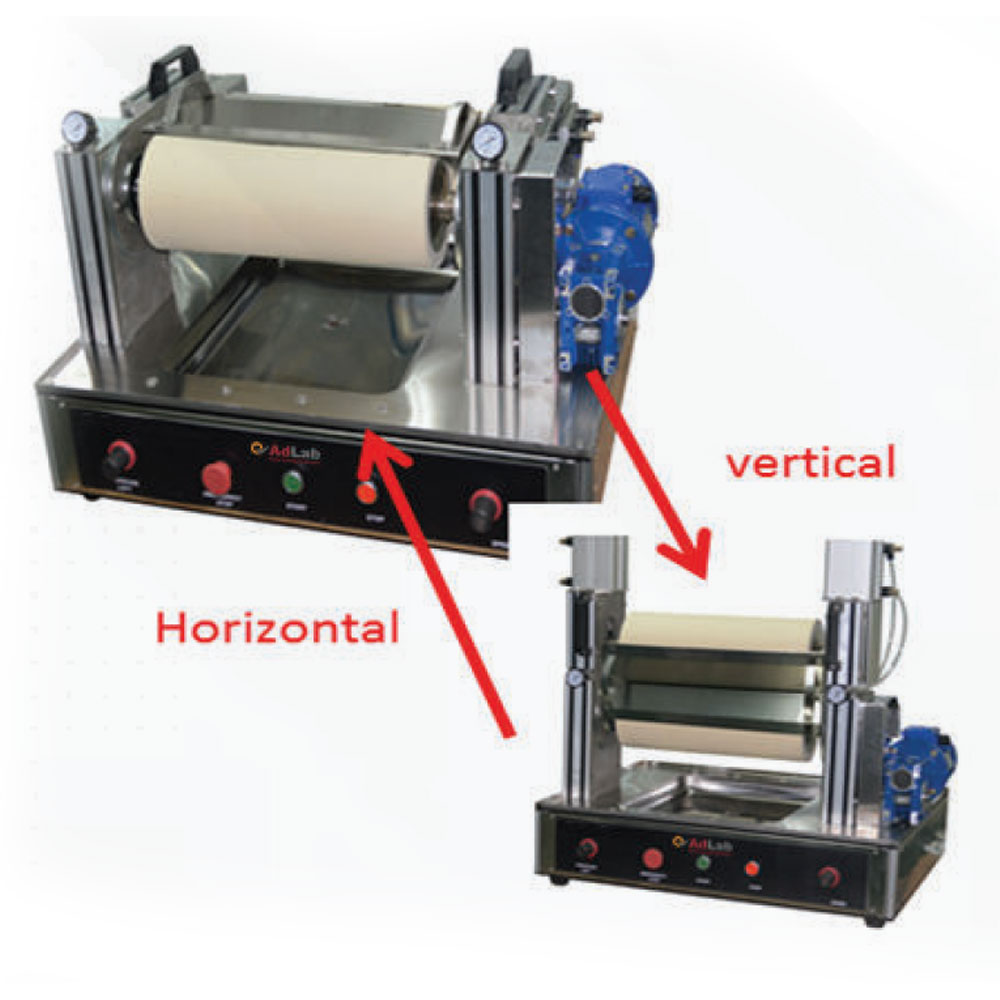

The ADL-DLP40N Dual Position Laboratory Padder is a versatile textile testing machine designed with both horizontal dyeing and vertical padding capabilities. It ensures accurate chemical application and uniform pick-up, making it ideal for textile laboratories, R&D centers, and quality control departments. With robust construction and precise pressure control, it delivers consistent and reliable performance.

Features

• Dual function: Horizontal dyeing & vertical padding
• High-quality Butadiene Rubber (NBR) rollers
• Stable operating speed (~4 m/min)
• Emergency foot stop for enhanced safety
• 2-litre solution tray
• Heavy-duty and stable design

Specification

• Mangle pressure : 0.1 – 0.8Mpa (1 – 8bar)
• Padder Length : 400 mm
• Padder Diameter : 150 mm
• Padder Hardness : Approx. 70–75° Shore A
• Speed : Approx. 4 m/min
• Voltage : AC380V 50–60Hz(Optional: AC220V 50–60Hz with inverter)
• Power : 250W
• Machine Net Weight : Approx. 110 kg
• Packing Weight : Approx. 140 kg
• Machine Dimensions : 800 × 720 × 820 mm (Vertical) (W×D×H)
• Packing Dimensions : 940 × 820 × 800 mm (W×D×H)

Option

• Teflon baffle kit (2 pcs / pair kit)
• Inverter speed control (0.2–4 m/min max.)
