Computerized Fiber Fineness Analysis

Application

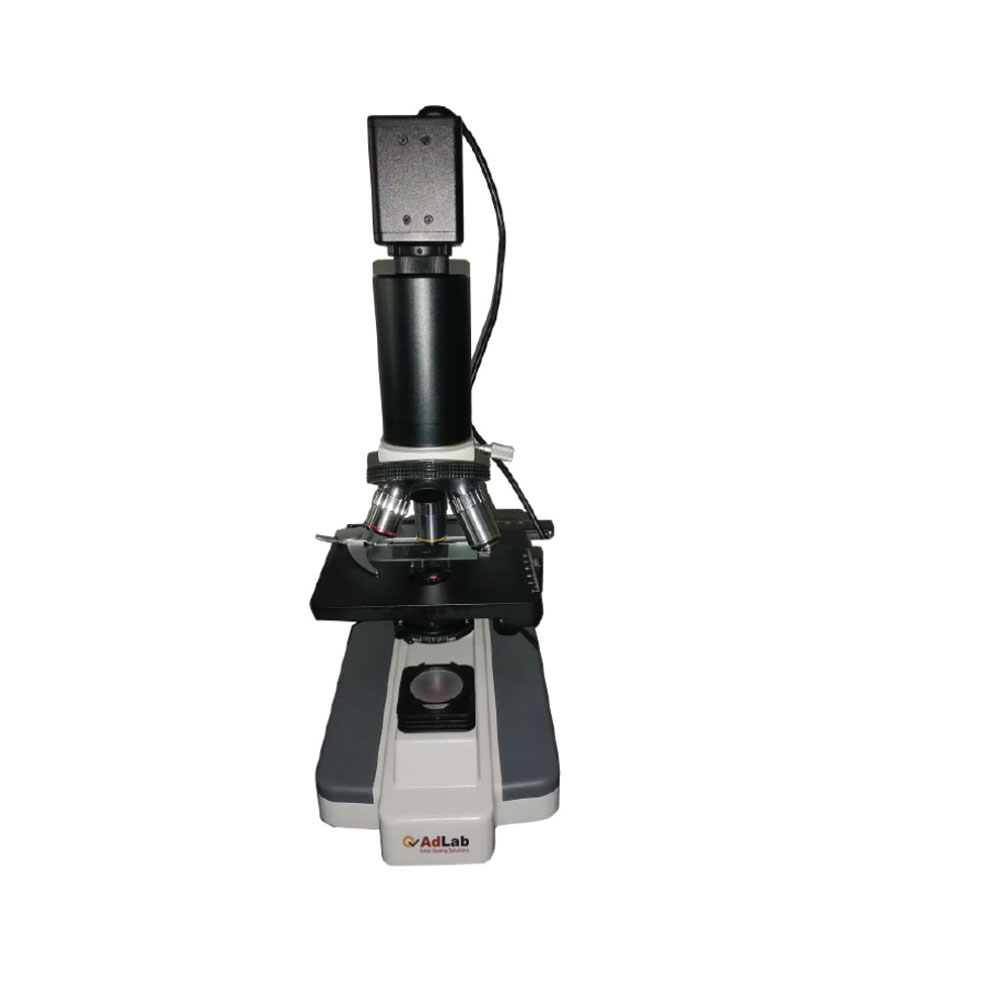

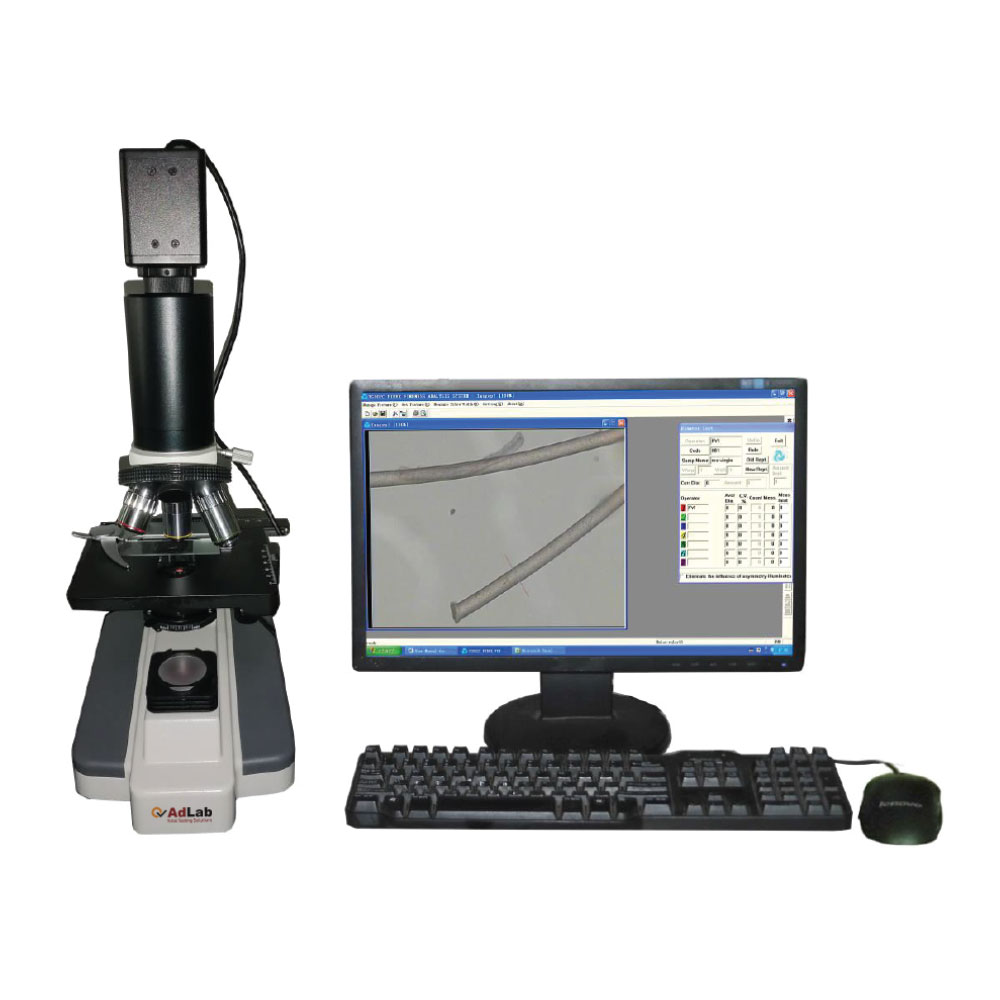

Computerized Fiber Fineness Analysis applies to determine fiber diameter or sectional area rapidly in laboratories. The instrument connects optical microscope and computer by high-resolution industrial camera. The fiber diameter and sectional area testing can be completed by professional analysis software, and the content of each fiber in blended fiber can be measured.

Standards

ISO 137, 17751, AATCC 20A

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Features

• Suit for determine the diameter of all kinds of fiber, adopt longitudinal section method.
• Meet the demands of ISO 137, IWTO-8, GB/T 10685, etc.
• Professional analysis software, output the data and report forms by EXCEL.

Specification

• Testing method: Longitudinal section method
• Main testing item: Diameter
• Measuring range: 2~200um±0.5um (adjustable)
• Measuring repeatability: ±0.1um
• Objective lens: 4X, 10X, 20X
• Dimensions: 18*24*47cm (not including PC)
• Net weight: 35kg Appx.

Standard Configuration

• Microscope: 1 set
• Digital camera: 1 set
• PC: 1 set
• Professional analysis software: 1 set
• Micrometer scale: 1 pc
• Hardy sample cutter: 1 set

Optional Accessories

• Printer
• Objective lens 40X (Used for cross-sectional method)
