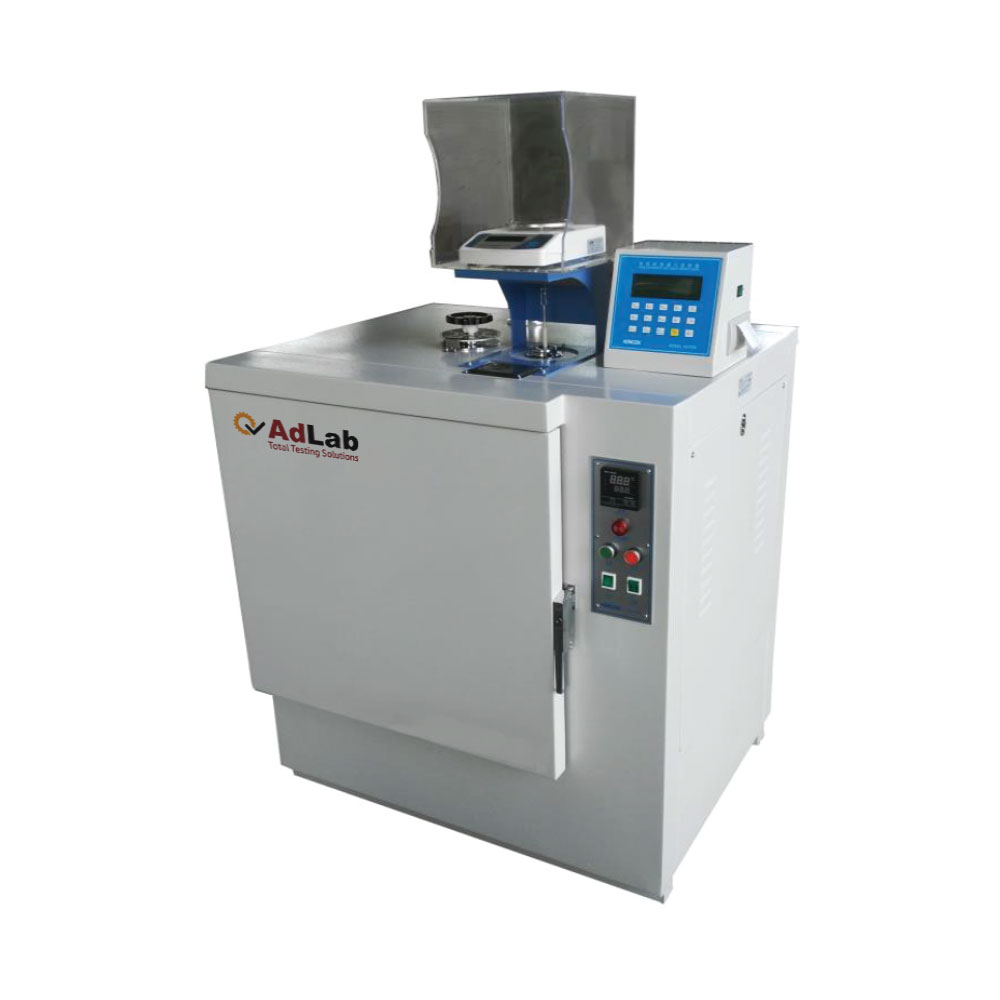

Semi Automatic Fiber Moisture Contain Tester

Application

Semi Automatic Fiber Moisture Contain Tester is used to determine the moisture content and moisture regain of various textile materials or relative products.

Standards

ISO 6348, 6741-1, ASTM D1576, D2495, D2654, GB/T 5883, 9995
Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Features

• Conforms to requirements of GB, ISO and ASTM standards;
• Microcomputer control and LCD display;
• Over-heat protection to ensure the operation safely. Once the oven over-heated, cut off the heater power automatically, and alert the operator at the same time.
• Dry according to preset program and timing alert;
• Observation window to observe the inside of oven and a handle to switch the basket below the balance;
• Hook the basket onto the balance by hand to weigh;
• Automatic comparison between two adjacent weighing results and auto-judgment of test over when difference between two adjacent weighing results reaches the stipulated value;
• Can input the temperature and relative humidity in lab to amend test results;
• Auto calculation of moisture content and moisture regain and auto print out of test report;

Specification

• Drying method : Mandatory heated-air convection
• Drying time : ＜45min for cotton
• Temperature range : RT ~ 150℃
• Temperature accuracy : ±1℃
• Temperature uniformity : ±2℃
• Wind speed to sample : ≥0.5m/s
• Rate of changing air : More than a quarter volume of oven per minute
• Balance capacity & accuracy: 500g, 0.01g
• Power supply : AC380V 50Hz, 3phase
• Dimensions : 990*870*1370mm (L*W*H)
