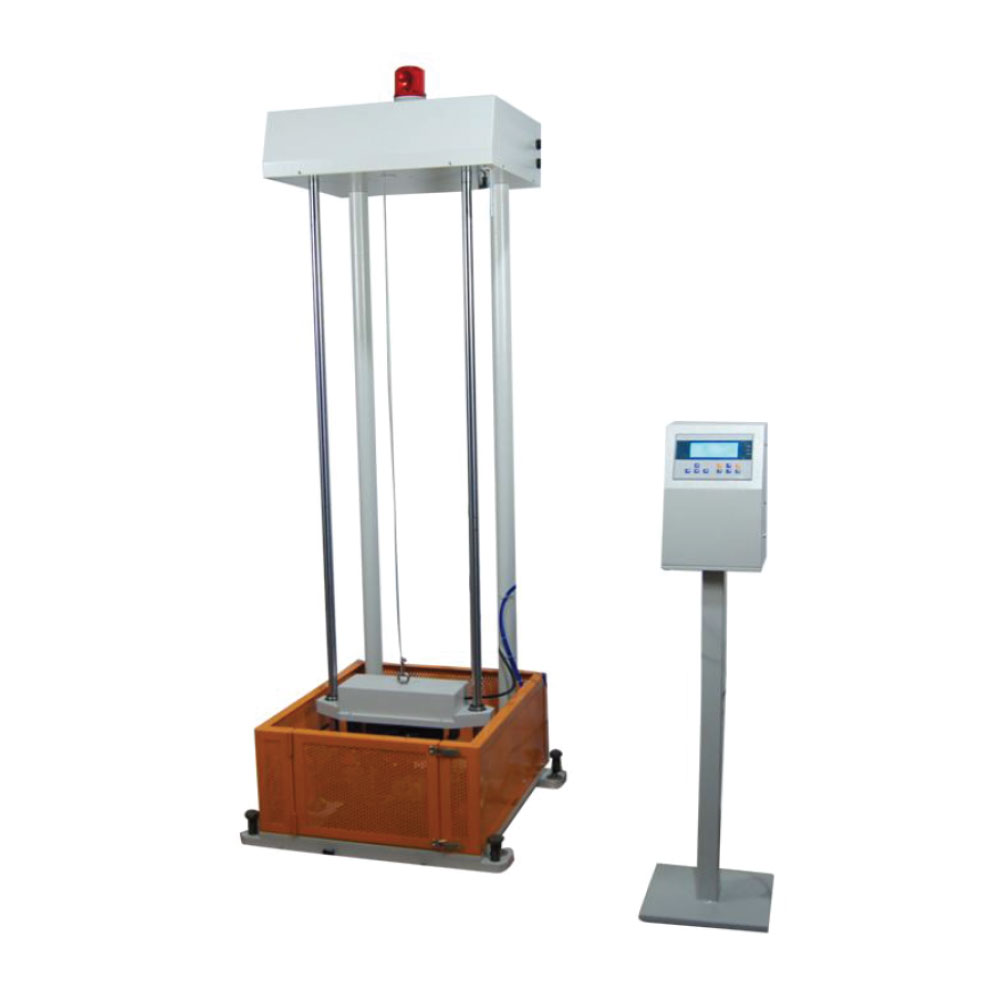

Safety Shoes Impact Tester

Description

Application

Safety Shoes Impact Tester is used to test the impact resistance of safety shoes. The impact-resistant steel toe of the safety shoe is placed on a 100 joule or 200 joule kinetic energy impact device and its sinking is observed to verify its quality.

Features

Equipped with an electromagnetic suction cup device that automatically adjusts the impact head to the appropriate height.
Equipped with a protective fence to prevent splashing of hazardous objects.
The control box and impactor are separated to ensure personnel safety.
Equipped with two buffer cylinders to prevent secondary impacts.

Standards	EN ISO 20344, AS/NZS 2210.2 GB/T 20991 BS EN-344-1, BS-953, ISO 20345 EN 12568	CSA-Z195-14, ANSI-Z41, ASTM F2412, ASTM F2413, NOM-113- STPS-2009	CSA-Z195-14, ASTM F2412, ASTM F2413, NOM-113- STPS-2009
Drop height range	0- 1200mm
Impact energy	200±2 J	100±2 J	101.7±2 J
Impact hammer	Wedge, Length 75mm, Angle 90°	Cylinder, Diameter 25.4mm
Impact surface	Corner radius R3 mm	Spherical radius R25.4mm	Length 152.4±3.2 mm
Impact hammer mass	20±0.2 kg	22.7±0.23kg
Power supply	1∮AC220V 50HZ 5A
Dimensions (LxWxH)	60 x 70 x 220cm
Weight	230 kg Appx.
