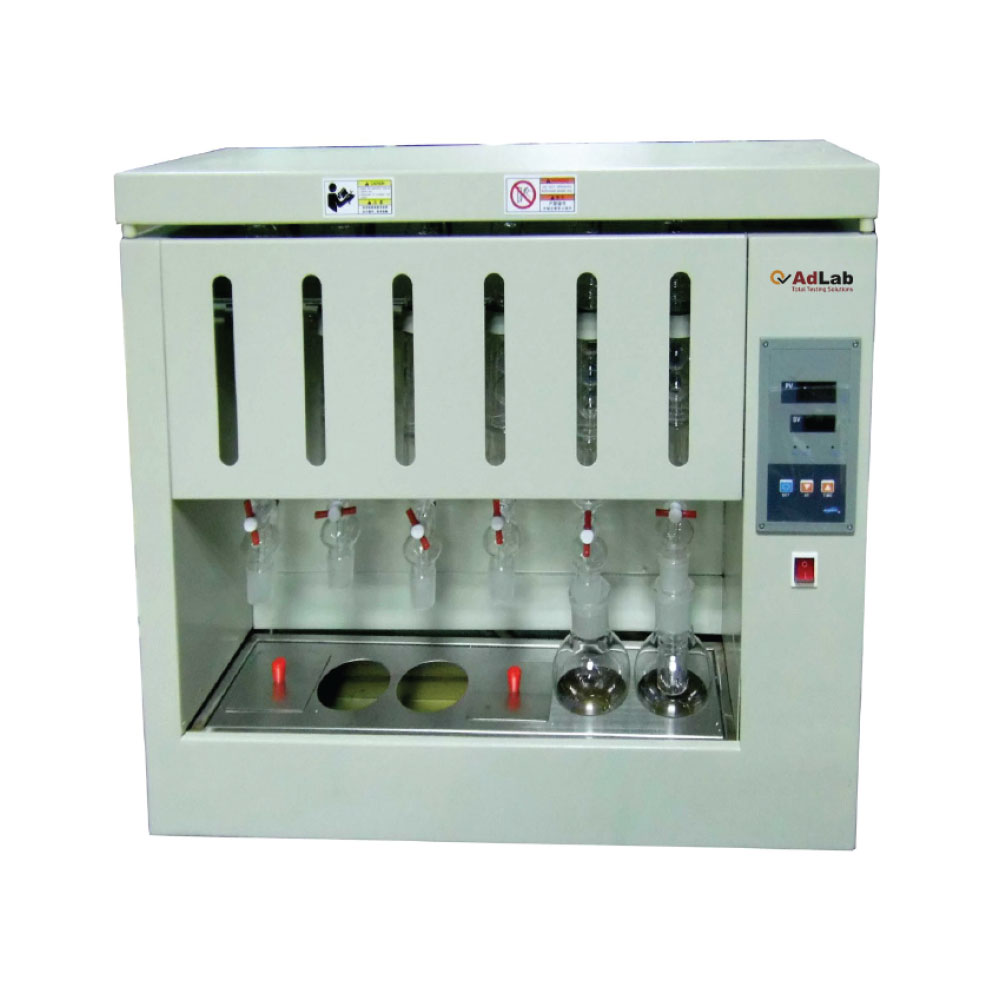

Rapid Fabric Oil Extraction Tester

Application

Rapid Fabric Oil Extraction Tester is used to carry out extraction by Soxhlet extraction method. It’s suitable for determining grain, feed, oilseeds and various fat products with crude fat content ≥ 0.5%.
The crushed, dispersed and dried specimen is extracted by reflux with organic solvent, so that the fat in the specimen is extracted by the solvent, and the residue obtained after the solvent recovery is crude fat.

Features

• Conforms to requirements of GB, ISO and ASTM standards;
• Microcomputer control and LCD display;
• Over-heat protection to ensure the operation safely. Once the oven over-heated, cut off the heater power automatically, and alert the operator at the same time.
• Dry according to preset program and timing alert;

Specification

• No. of working stations : 6
• Volume of extraction bottle : Each 250ml
• Mass of specimen : Each 0.5~20g
• Accuracy : Relative error ±1%
• Heating method : Water bath heating
• Temperature range : RT ~ 100℃
• Heating time : About 10 minutes
• Recovery system : Automatic
• Power : 800W
• Power supply : AC 220V, 50Hz
• Dimensions : 740*230*650mm(L*W*H)
• Weight : 22kg Appx.
