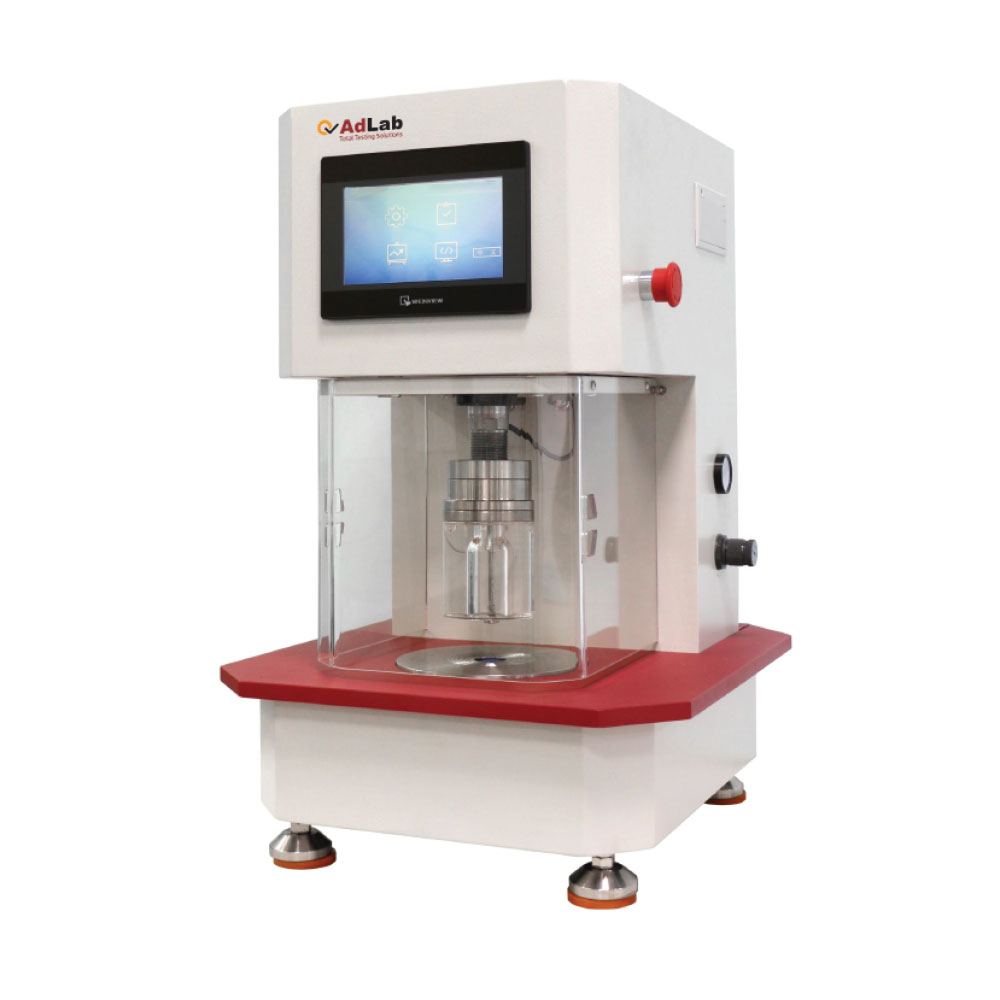

Pneumatic Bursting Strength Tester

Application

The tester is used to measure the tensile strength and expansion of various materials such as textiles, knitwear, paper, nonwovens, leather, etc. when the warp, weft and all directions are stressed simultaneously (elastic diaphragm method).

Standards

ASTM D3786-06
IWS TM29
ISO 13938-2
GB/T 7742.2
ISO 2758
Woolmark TM29
EDANA 80.3-99
M&S P27
NEXT 22

Features

• The air pressure method is adopted, which conforms to the national standard.
• Touch screen control, simple and easy to understand interface, simple and intuitive operation, sensitive touch.
• Pneumatic clamping, uniform clamping, avoid sample slippage or damage, easy to use.
• The test clamp is made of high transparent acrylic material, and the magnet is attracted and installed, which is convenient for replacement and disassembly.
• Built in LED lighting, convenient to observe the process of the sample experiment.
• Automatic induction blasting system, sensitive and reliable, the instrument has over range, over expansion protection function.
• It is equipped with plexiglass cover to prevent people from being hurt and make it safer to use.
• High precision pressure and displacement sensor measurement, AC servo drive system, high precision instrument, low noise.
• Using high-speed AD sampling and 32-bit ARM processor, the sampling frequency is high and the test accuracy is high.
• Automatic pressure, timing burst test function.
• The instrument has its own thermal printer, which can directly print reports, and the professional computer analysis software can realize two-way operation with the computer (obtain the national software copyright registration certificate)

Specifications

Instrument range: 1.2MPa
Division value: 0.1kpa
Test area: Standard configuration: 7.3cm2 ($30.5mm), 50cm2 ($79.8mm)
Expansion accuracy: 0.01mm
Pressure unit: kPa, kg / cm2, bar, lb / in2
Compressed air: 600 ~ 800kpa
Test method: time burst and constant pressure burst
Power/Air: AC220V 50Hz
Dimensions: 550*450*690mm
Weight: 120kg Appx.
