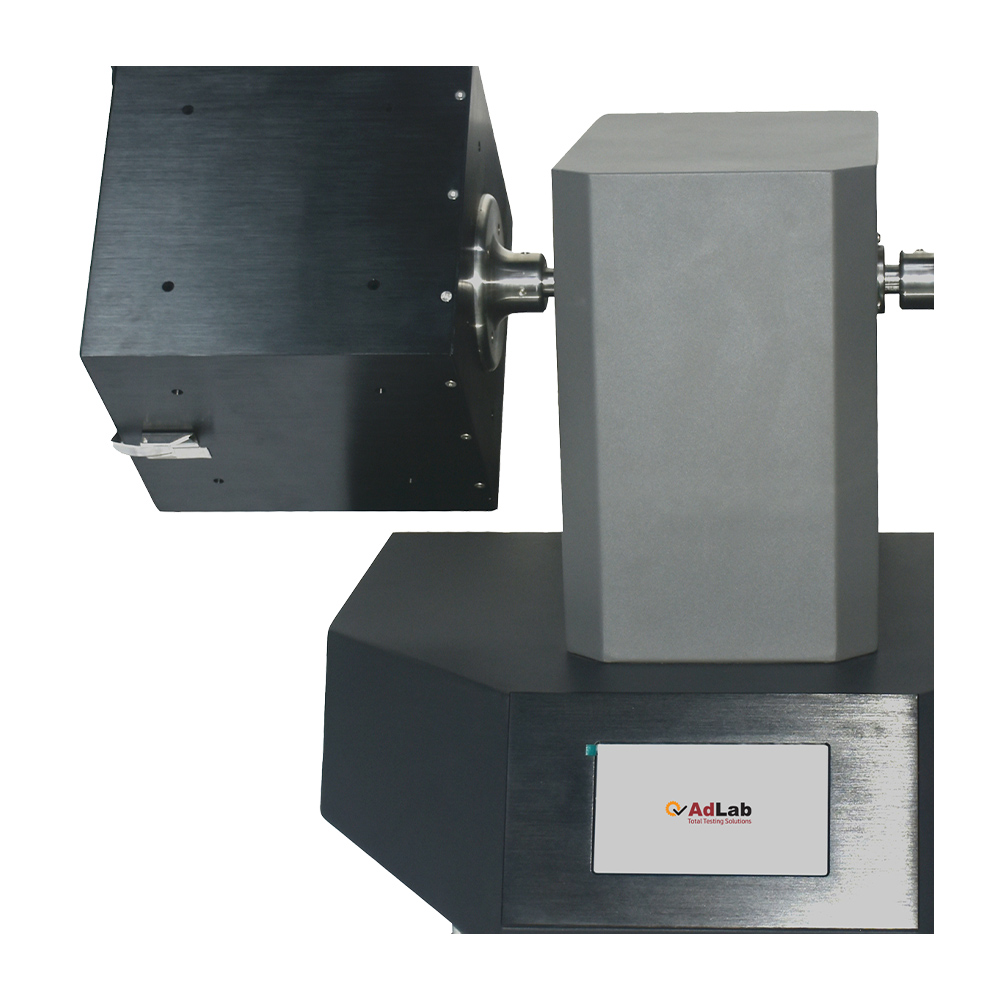

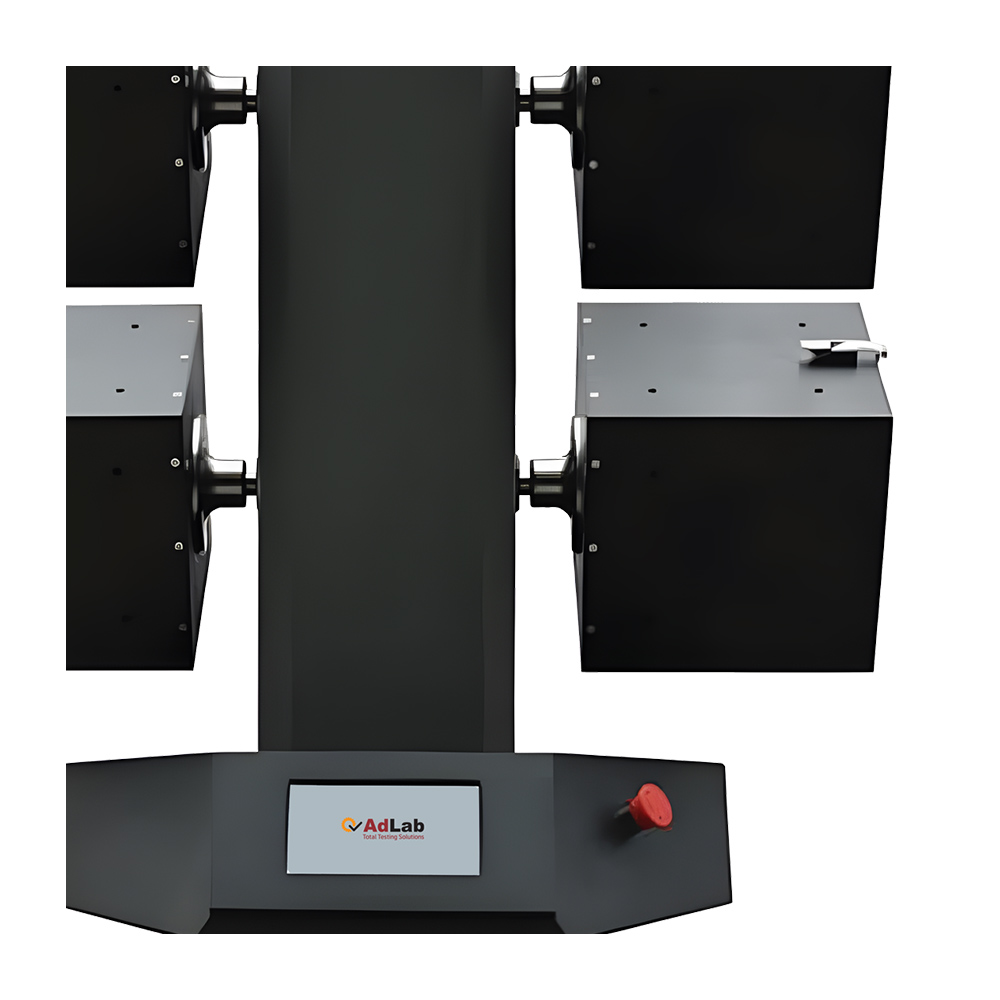

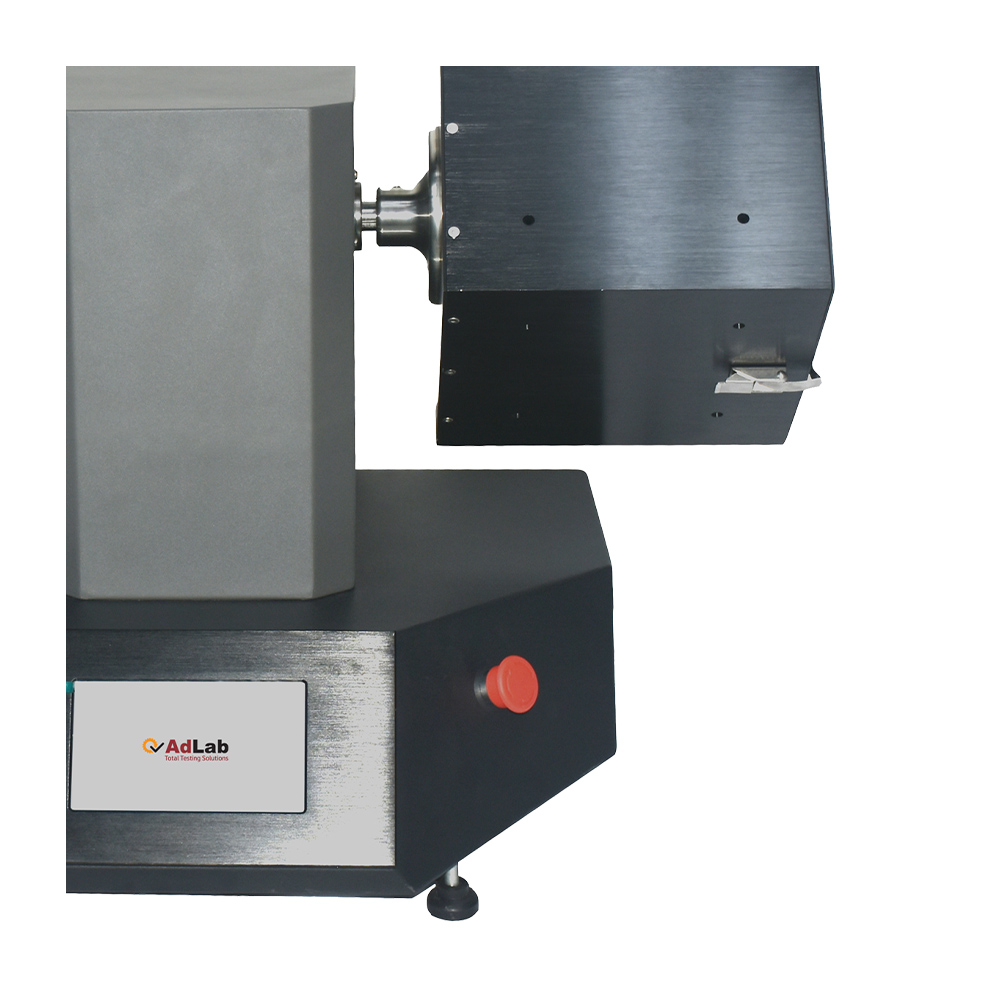

This ICI Pilling Tester is suitable for detecting the pilling and pilling phenomenon caused by friction on the surface of the fabric under the condition of no pressure. It is suitable for woven and knitted fabrics. The ICI pilling tester is a general-purpose pilling test system with 2 or 4 test boxes, which can quickly simulate the pilling of fabrics within a certain period of time under normal wearing conditions. Electronic drive device, electronic digital counter and sample loading device

Features

Here are some feature of ICI Pilling Tester

Fitted with digital electronic counter, can self-verify tester by comparing readout from them;
Electronic counter can record accumulated number of test cycles automatically, also easy to reset the counter, auto-stop when reach set testing times.
Simplified designing, more convenient to operate, and easy to maintain;
Synchronous speed motor drives the test boxes, ensuring constant speed of rotation.

Technical Parameter

Model – ADL-ICI2H/ICI4H
Number of Pilling Boxes – 2 boxes / 4 boxes
Specimen – 125mmx125mm, four
Size of Test Specimen – outer diameter 31.5±1mm, thickness 3.2±0.5mm, length 140±1mm
Sample casing weight – 52.25±1g
Cork liner thickness – 3.2mm
Internal dimensions of the test box – 235mm before lining
Speed – 60±2rpm
Test box size – 235×235×235mm
Dimensions – 875×430×350mm (L×W×H)
Power supply – 1∮, AC220V, 3A
Weight – 60Kg
