Hydrostatic Head Tester is used for measures the resistance of a fabric to the penetration of water under hydrostatic pressure. It is applicable to all types of fabrics, including those treated with a water resistant or water repellent finish, the pneumatic clamp head have huge clamp pressure.

Technical Specifications

Here are some key specification of the Hydrostatic Head Tester

Test pressure:0~3000mbar
Measuring accuracy: ± 5 % ± 1 mbar
Readability: 0.1 mbar
Test gradient:1~1000mbar/min
Pressure warning signal: 1mbar ~3000mbar
Test area:100 cm2 (10 cm2, 19.63 cm2,26 cm2, and 28 cm2 optional)
Maximum sample thickness:0~20mm
Required compressed air supply: 4~8 bar (clean and dry)
Dimensions: 40×60×60cm(W×D×H)
Weight: 65Kg
Power: AC100~240V,50/60Hz,50W
Warranty: 24 Months

Professional Technology

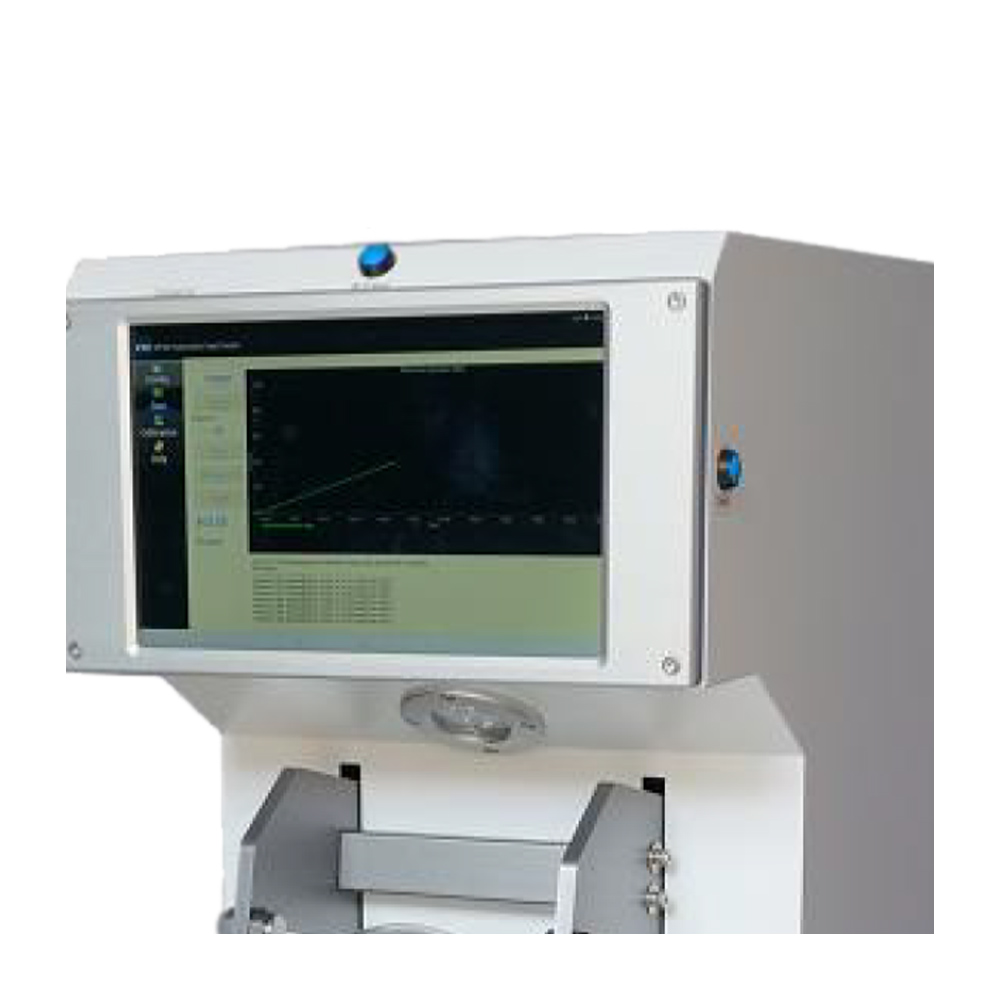

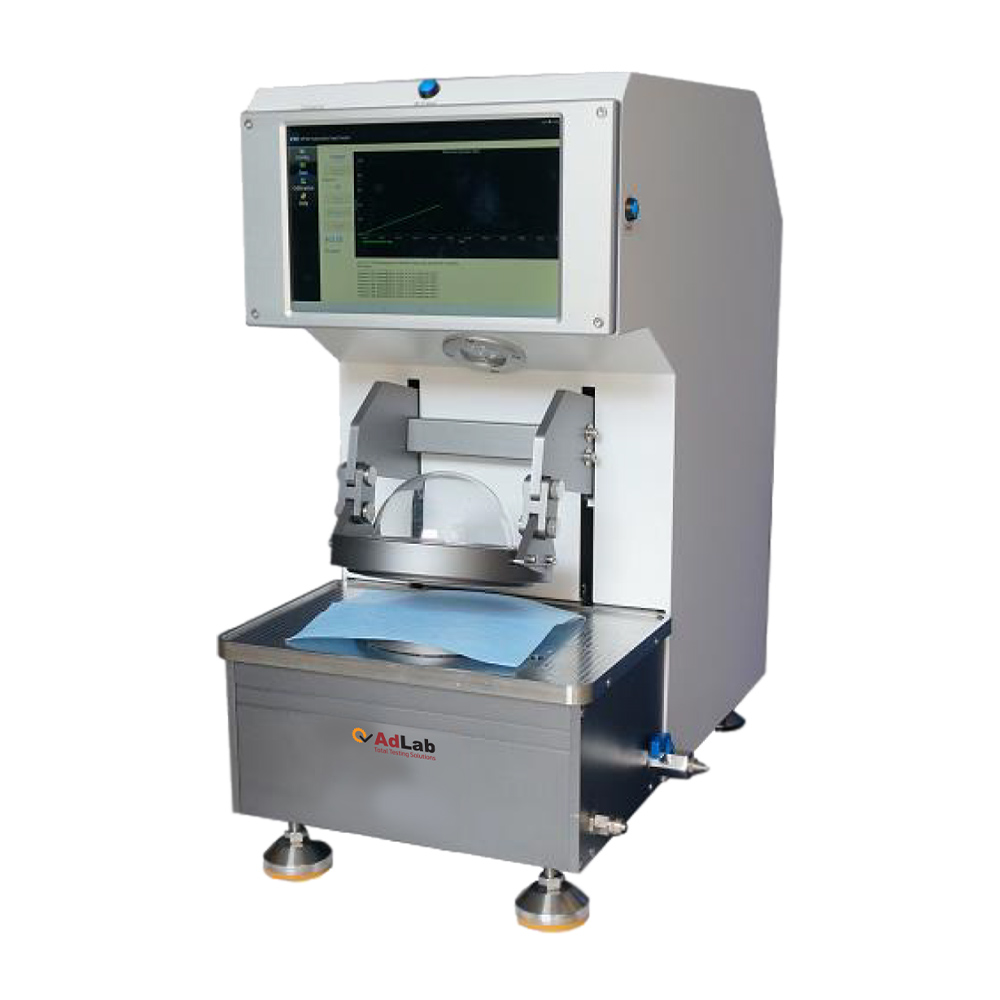

The tester features a 10-inch color capacitive touch screen with multi-point touch and an Android 7.0 operating system. Users can easily control tests, save results in Excel format, and send them instantly via Wi-Fi.

Its simple yet efficient fixture design provides superior gripping force, ensuring that water does not leak from the sides. In addition, high-precision pressure sensors combined with advanced pressure control guarantee accurate results.

The instrument also includes an LED soft illumination system with digitally adjustable lighting. Moreover, the user-friendly software supports multiple test standards and offers convenient configuration.

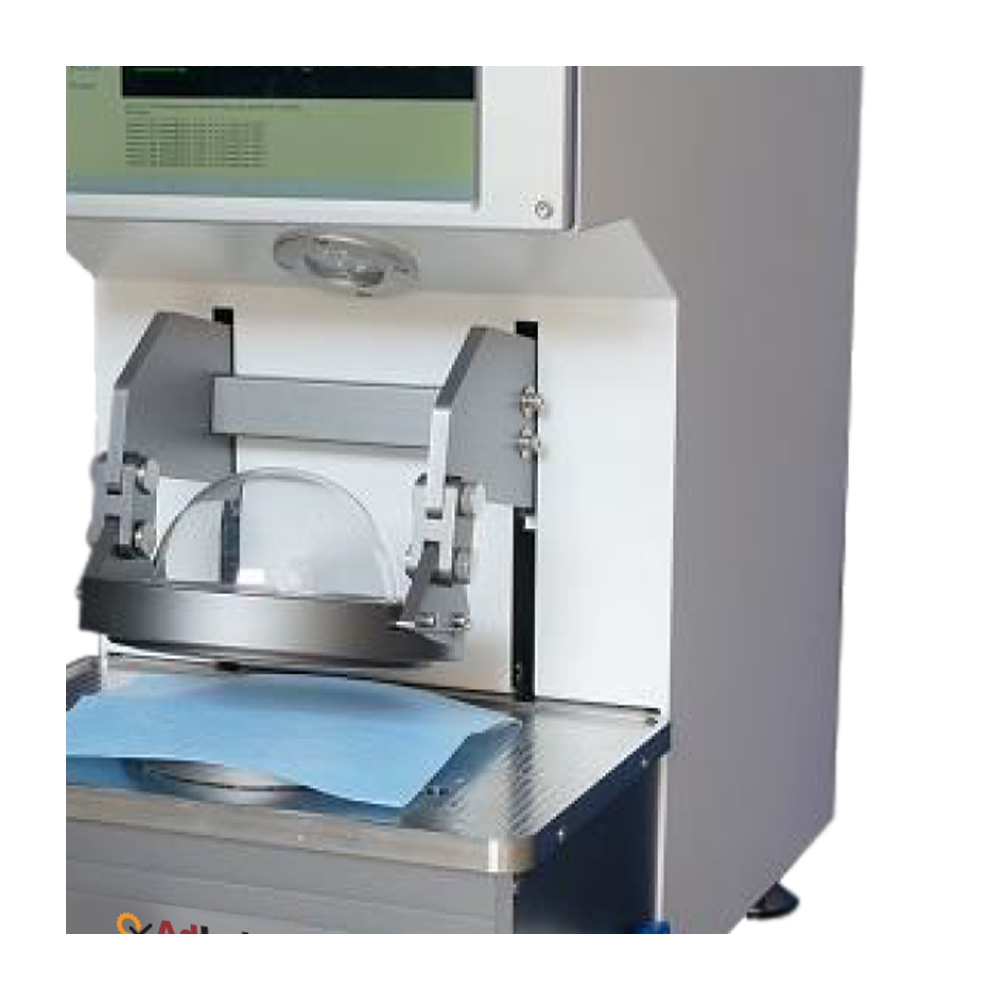

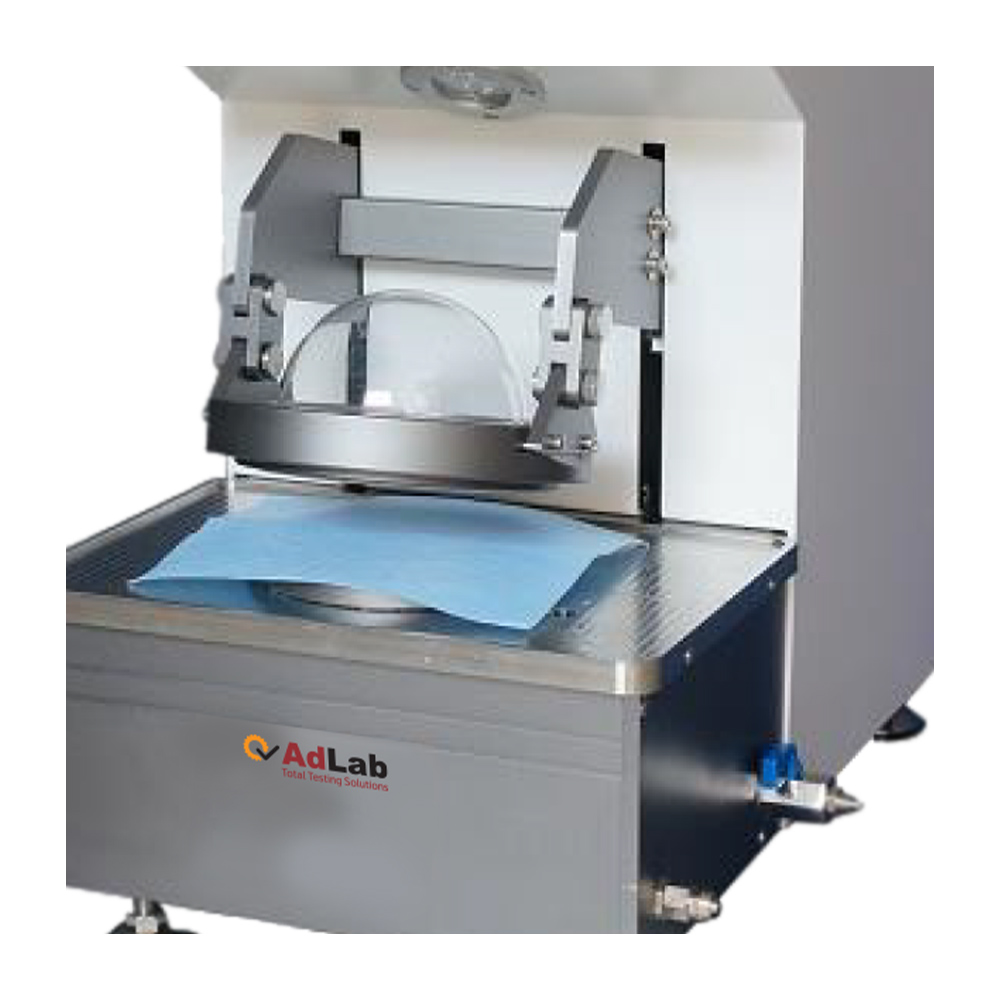

For demanding applications, the pneumatic clamp head delivers strong clamping power, with a maximum pressure of four tons. As a result, users benefit from consistent, reliable, and precise testing performance.

Testing Standards

GB/T 4744, AATCC 127, EN 20811, BS 2823, BS 3424-26 29A/29C, BS 3321, BS 3321, ISO 811, ISO 1420A, DIN 53886, INDA IST 80.4, JIS L 1, 092 A, JIS L 1, 092 B-b NF G07-057, ERT-120-1, 160-0, EDANA 120.2-02, ISO 16603, ASTM F1670, YYT 0700, ASTM F903.

Test Principle

One surface of the test specimen is subjected to a hydrostatic pressure, increasing at a constant rate, until three points of leakage appear on its other surface. The water may be applied from above or below the test specimen.

The instrument contains a high precision pressure control system, which produces the test pressure in an internal water tank.

Application

Measurement the resistance of plastic foils, coated and uncoated fabrics, and non-woven to water penetration by means of the dynamic test method, the static test method, and the program test method.
