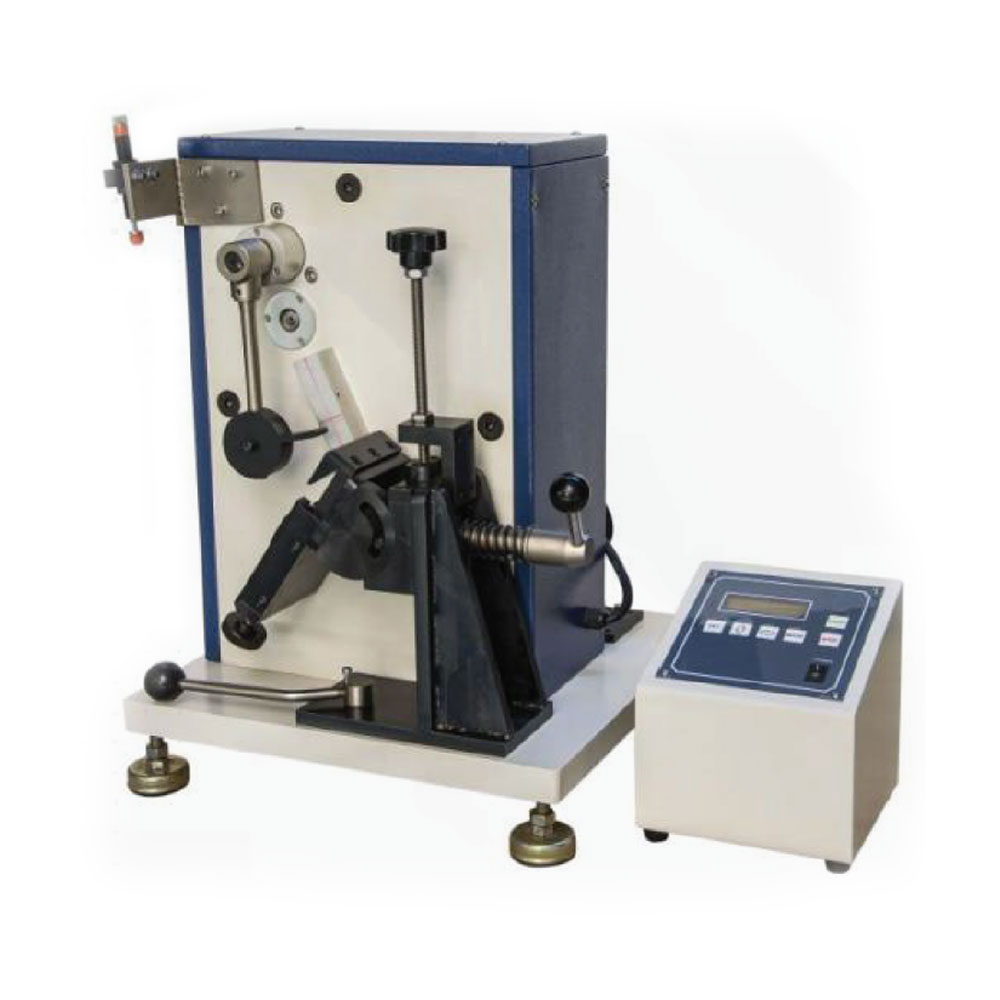

Heel Fatigue Tester

Application

This equipment test the resistance of the heel of women’s medium or high heels to repeated mild impacts at the heel tip. The heel is subjected to a pendulum with a specific energy applied for one second. The test is continued until the heel fails or until noticeable fatigue resistance is observed.

Standards

BS-5131 4.9, ISO 19956, QB/T2864, SATRA TM21

Specification

• Impact energy: 0.68J ± 0.02J
• Impact frequency: 60blows/min
• Impact angle: 90degree
• Pendulum: Φ 57 ±1 mm, Thickness 20 ±1 mm
• Pendulum shaft: Φ 12.5 ±1 mm
• Striker head (L×W×T): 35 ×20×6mm
• Striker head corner radius: R3mm
• Pendulum Moment @ Horizontally: 0.68N.m
• Counter: LCD digital display 0 – 999999 ( adjustable)
• Power supply: 1AC 220V 50/60HZ 3A
• Dimensions: 60 x 40 x 65cm
• Weight: 80kg
