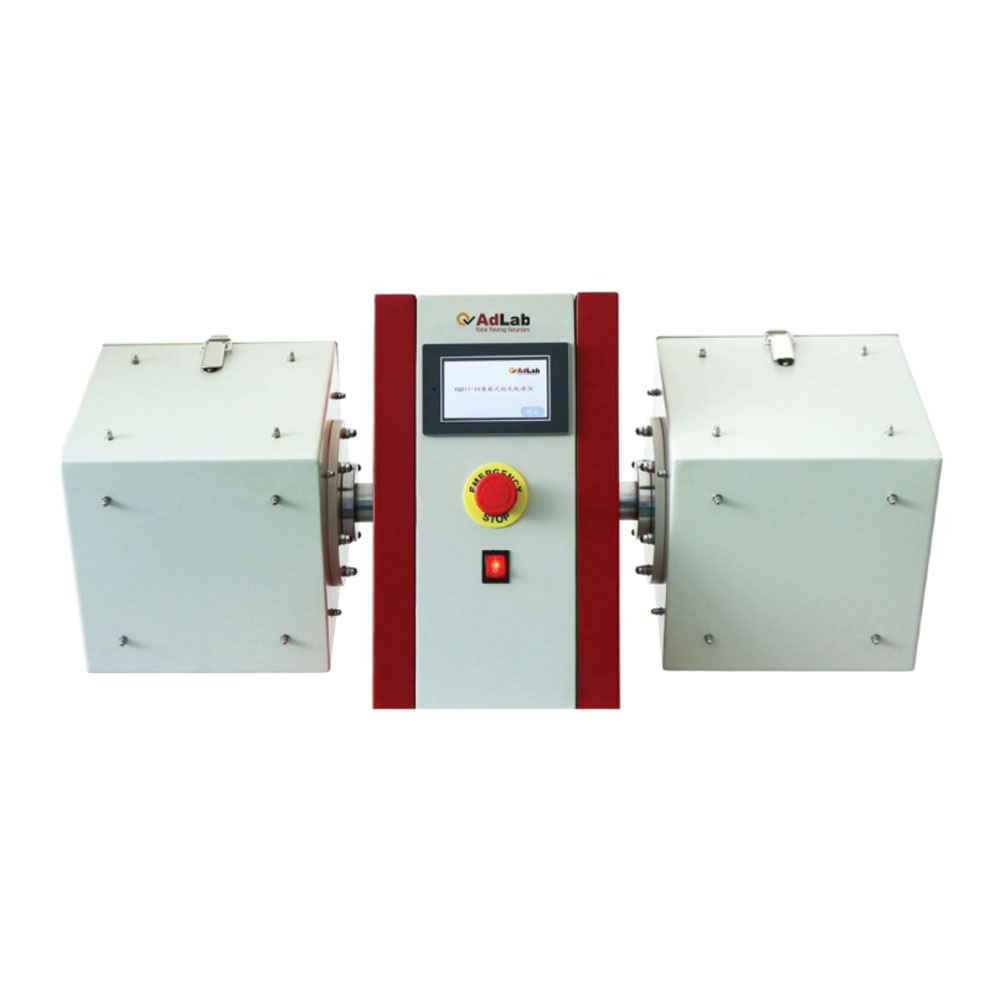

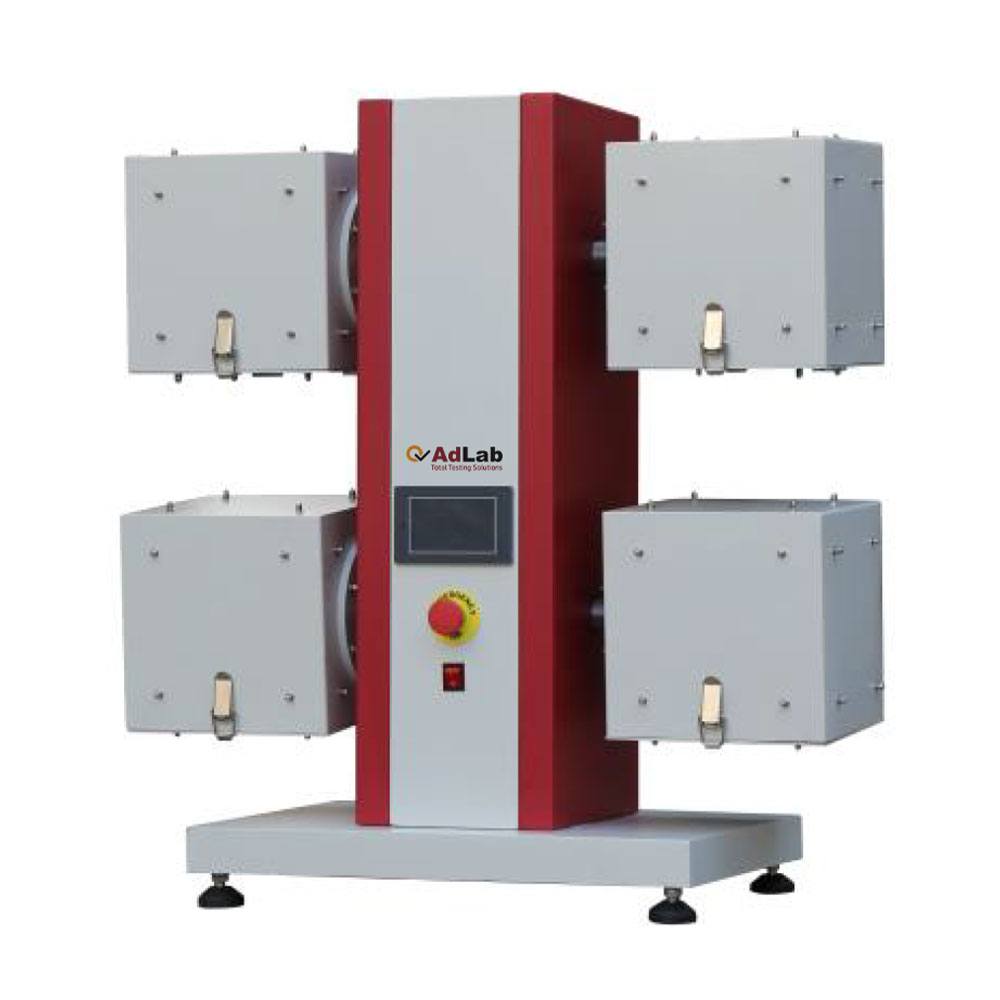

ICI Pilling and Snagging Tester

Overview

Pilling and Snagging Tester. To determine the surface fuzzes and pilling properties of both woven and knitted materials.

Features

● Specially designed equipment to access resistance to pilling of any type of fabrics as per ICI pilling system.
● Four Pilling Boxes for better efficiency of work.
● Microprocessor based controller with latest aesthetics.
● 3.2mm Standard cork lining inside the boxes for proper pilling action.
● Finest Quality Molded Polyurethane Pilling Tubes supplied .
● Specially designed standard size boxes meet the standard specifications.
● Complete with all accessories-pilling tube, template,19 mm PVC Tape etc.
● Smooth precision engineered components for excellent performance.
● Innovative specimen-mounting jig saves efforts and reduces the chance of damage or distortion to the sample.

Standards

ISO 12945-1, BS 5811,IWSTM 152, NEXT 19, JIS L1076, M&S P18, M&S P21A, BS 8479,GB/T4802.3

Specification

● Number of Pilling Boxes: 4
● Internal Dimensions: 235×235×235mm
● Rotational Speed: 60±2r/min(40~80r/min)
● Count Range: 1~999999
● Sample tube: Length 140mm, Diameter 31.5 mm,Weight 52.25g
● Power/Air: AC220V 50Hz 120W
● Demensions: 900×500×800mm
● Weight: 70kg
