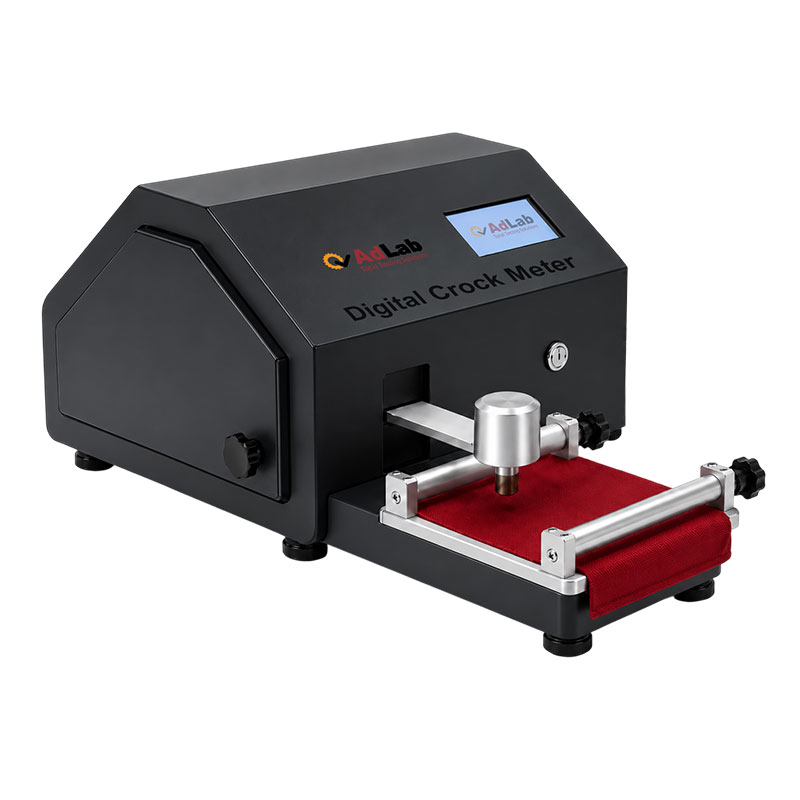

Digital Crock Meter

Digital Crock Meter/Rubbing Fastness Tester

Model: ADL-RT04

Application

This instrument is applicable to the rubbing test for evaluating color fastness in textiles, knitwear, leather, electrochemical metal plate, printing and other industries.

Standard

ISO 105X12、 GB/T 3920、 GB/T 5712、AATCC 8、 AATCC 165、 BS 1006 D02

Feature

Color touch screen control system, easy and convenient to operate.
At a time you can test wet & dry rubbing
Linear guide sliding, DC motor drive.
PI control algorithm speed, make the instrument run smoothly, low noise.
The operation of the instrument is step less speed regulation, and the customer can set the speed freely according to the test requirements.
Counting mode: times counting;

Specification

Friction head pressure: 9N±0.2N
Friction head: φ16mm; 19×25.4mm
Friction head stroke: 104±3mm
Speed range: 40～80±2times / min
Counting times: 1-99999 times;
Power: AC220V 50Hz 20W
Dimensions: 490*610*250mm
Weight: 25kg Appx.

Standard Accessories

Rubbing cloth – 1 box
Sand paper – 2 pcs
Rings – 2 pcs

Optional Accessories

ATCC & ISO Gray scale

Why Choose the Electronic Crock Meter

Digital Crock Meter, Accurately test textile color fastness to dry or wet rubbing with high repeatability. Features a pinned acrylic sample holder, precise electronic counter, and automatic stop function. Durable metal construction, easy maintenance, and compliance with ISO, BS, AATCC, ASTM, and JIS standards ensure reliable, consistent results every time.
