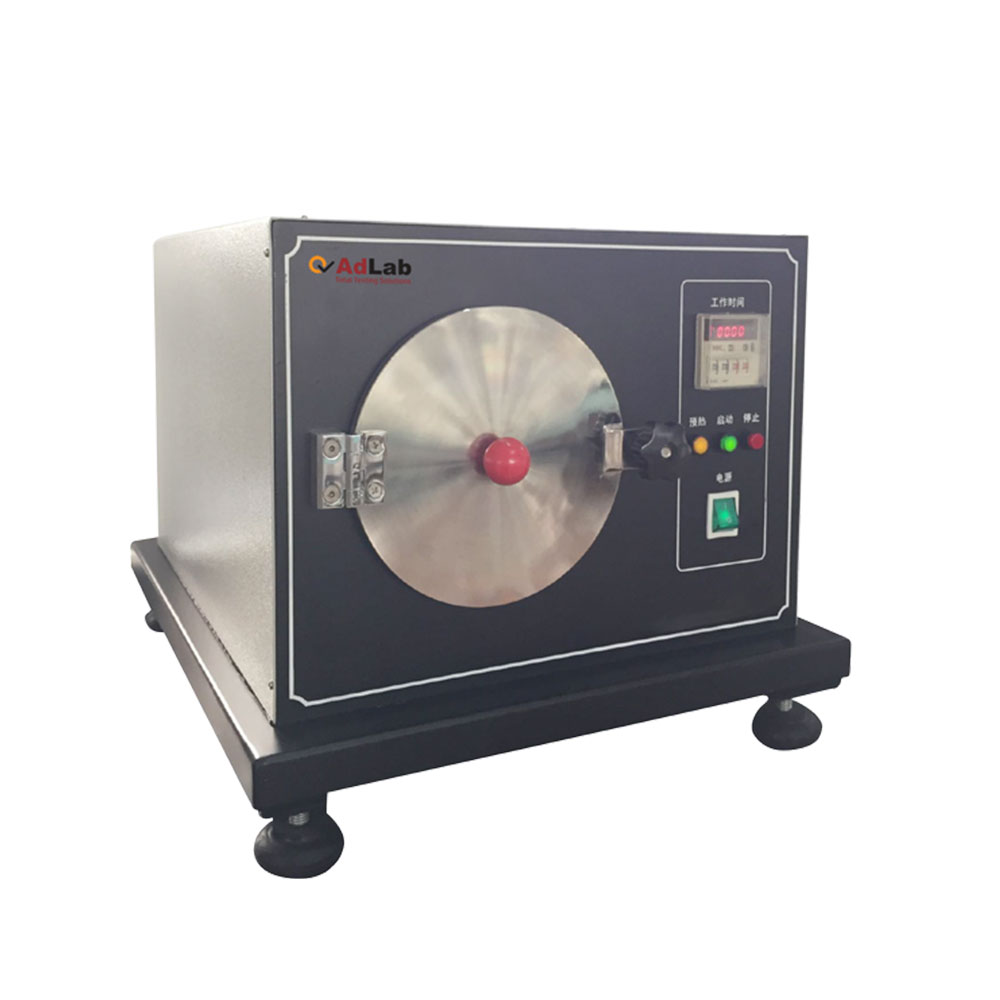

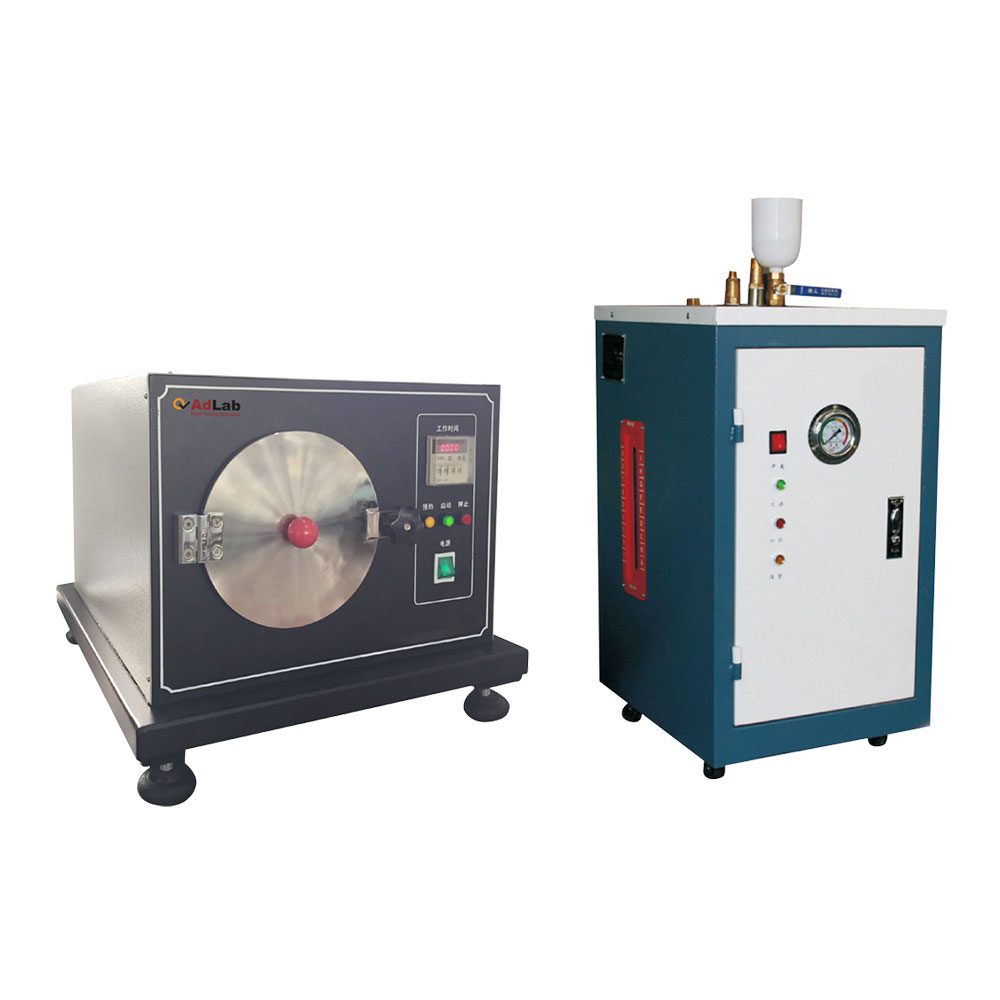

Introduction to the Steam Shrinkage Tester

The Steam Shrinkage Tester evaluates dimensional changes in various fabrics under steam without force. It complies with standards like FZ/T20021, ISO3005, and BS4323, featuring a 22L steam generator and a steaming time range of 0.01s to 99h59min, ensuring precise testing for textile quality control.

Applications of the Steam Shrinkage

The Steam Shrinkage assesses fabric shrinkage under steam exposure, suitable for a wide range of textiles. It ensures accurate measurement of dimensional stability, supporting compliance with standards like ISO3005 and BS4323. This machine is ideal for textile manufacturers focused on quality assurance and fabric performance testing.

Key Features

Precise Steam Control: The Shrinkage Tester uses a 22L steam generator with 70g/min evaporation.
Flexible Testing: Offers a steaming time range from 0.01s to 99h59min, fully adjustable.
Standard Compliance: Meets FZ/T20021, ISO3005, and BS4323 standards for reliable results.
User-Friendly Design: Includes a cloth stapler with a 250mm marking interval for easy fabric handling.

Technical Specifications

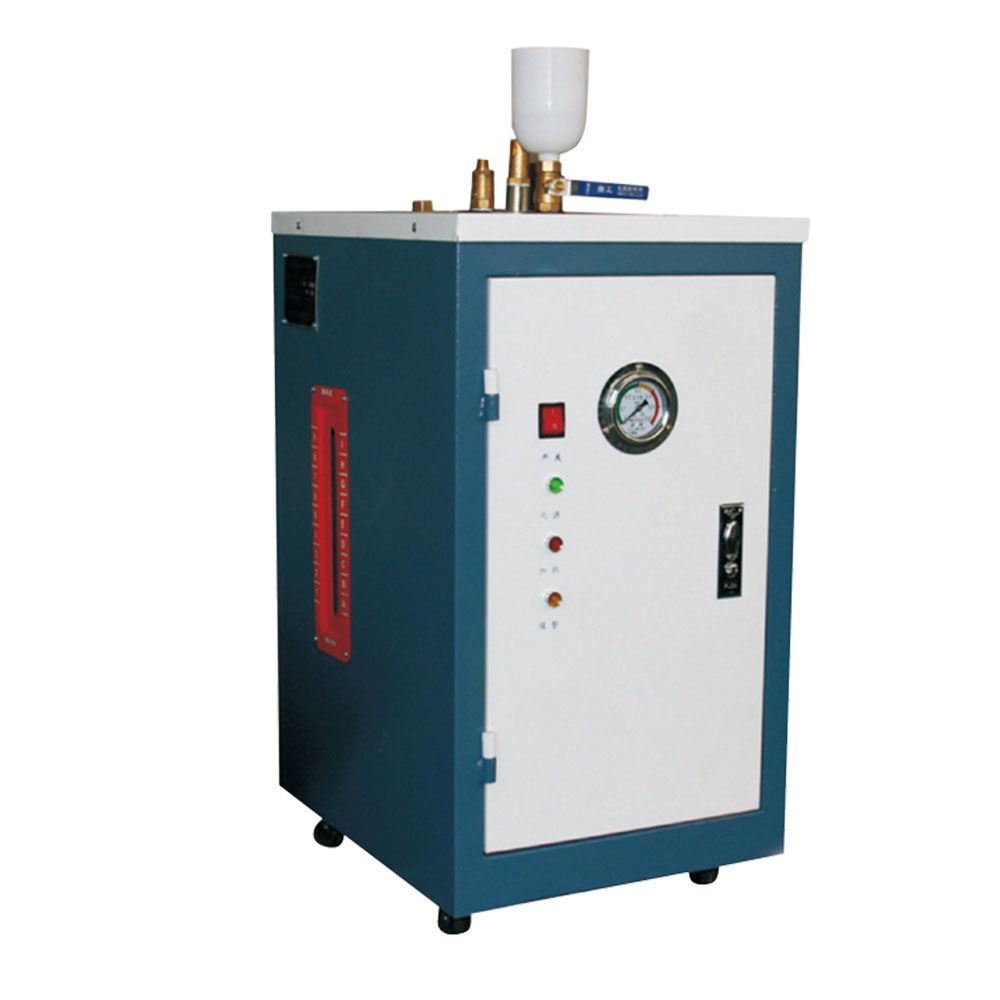

Steam Generator: 22L water capacity, 70g/min evaporation
Steam Inner Cylinder: Diameter 104mm, length 360mm
Steam Pressure: 101325Pa (1 atmosphere)
Steaming Time: 0.01s to 99h59min (adjustable)
Power Supply: AC220V ±10%, 50Hz, 3kW
Dimensions: 420×500×365 mm and 365×540×790 mm, Weight: 75kg

Standard Accessories

Main machine – 1Pc
Steam generator – 1pc
Stapler – 1pc
Sample support net – 4pcs
Sample holder – 1pc
Sampling handle – 1pc
Ruler – 1pc (300mm)
Fuse – 2pcs (2A)
Bottom foot – 4pcs

Why Choose the Steam Shrinkage Tester?

The Steam Shrinkage delivers accurate fabric dimensional testing under steam conditions. Its compliance with global standards, adjustable steaming time, and user-friendly accessories make it a reliable choice for textile manufacturers. This machine ensures consistent quality control for various fabrics with precise results.
