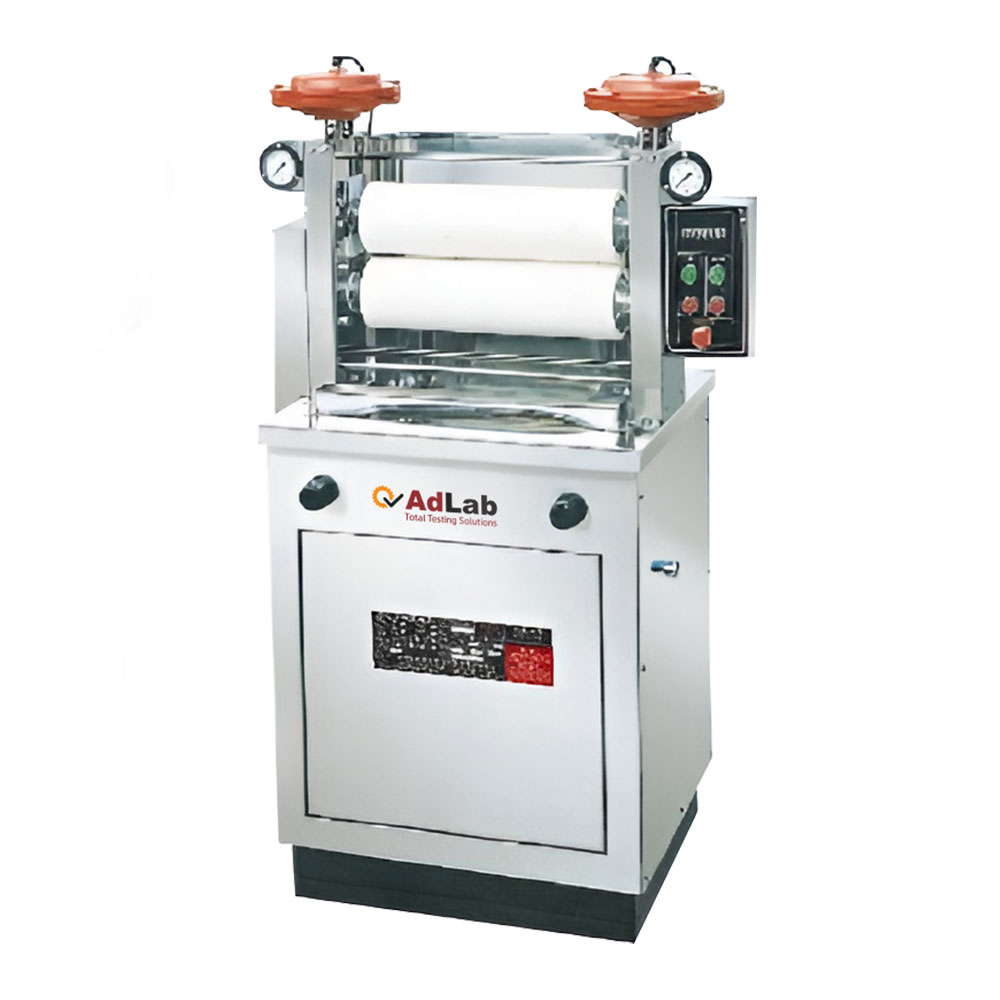

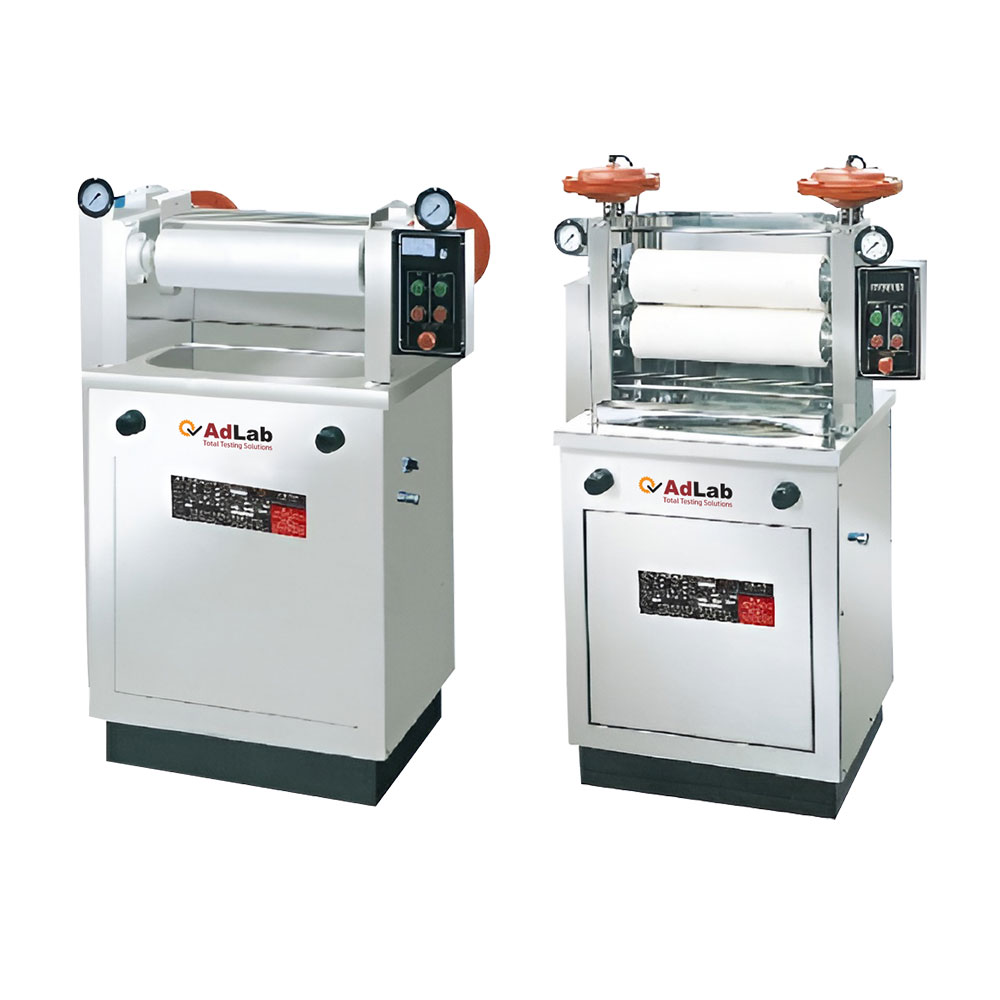

Small Padder
For satisfactory result on resin finish & pad dyeing test
Simulating the production condition to make

Nowadays in addition to precise color shade, nice appearance. All of buyers care very much about the good hand-feeling of the finished goods. With this device you could get the right sample and the approved order plus the reproducible data for the master production, you also can develop the value added and functional fabrics like fire-retarding, dust-resistant, breathable etc. to develop new business, new benefits and improve your competitiveness

Using compressed air to drive the air film ensures uniform pressure, and after prolonged use, the pressure’s PICK-UP reproducibility is good.
Except for the main frame, all others are made of stainless steel.
It has its own rack, no need to customize a separate machine stand.
The safety equipment is in good condition, and in the event of an emergency, it can automatically stop the motor and open the rubber roller shaft.

Applications

Simulates production line conditions to achieve satisfactory results.
Works in coordination with a mini-dryer to produce hand-touch samples accurately for customer approval.
Suitable for selecting concentrations of dyestuffs, finishing chemicals, and recommending appropriate application forms for dyestuff, auxiliary, and pigment manufacturers.
Helps monitor color shade changes and prevents alterations during resin finishing or heat-setting processes after dyeing.
Applicable for testing water repellency, flame resistance, and other special coating applications.

Special Features

Pneumatic design ensures constant padding nip pressure.
Independent adjustment of left and right-side pressure on padding rollers.
Easy operation: once the desired padding nip pressure is set, no further adjustments are needed.
Safety features include a fabric feeder, safety rod, emergency button, and knee pedal, ensuring secure operation during every test.

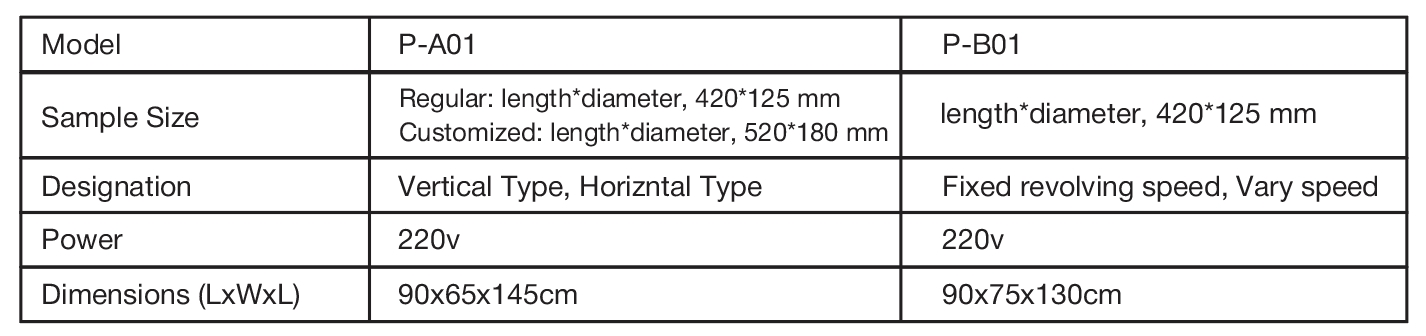

Technical Specifications

Hardness: 70° ± 3° Shore
Pressure resistance: 6 KG/cm² (design pressure: 10 KG/cm²)
Padding rollers: One pair made of NBR rubber, 70° Shore hardness
Rubber rolling wheels: Diameter 125 mm, Length 450 mm
Motor: 1/4 HP with speed reducer (voltage and hertz to be specified)
Fixed revolving speed: 10 RPM (variable speed option available)
Pressure regulation: Two sets of valves with 0.1 KG/cm² accuracy
Pressure gauges: Two sets of SMC gauges with 0.1 KG/cm² precision
Note: Air compressor is excluded.

Why Choose the Small Padder?

The Small Padder ensures precise pad dyeing and functional fabric testing with its pneumatic design and safety features. Its reproducibility and support for value-added textiles make it a top choice for textile industries
