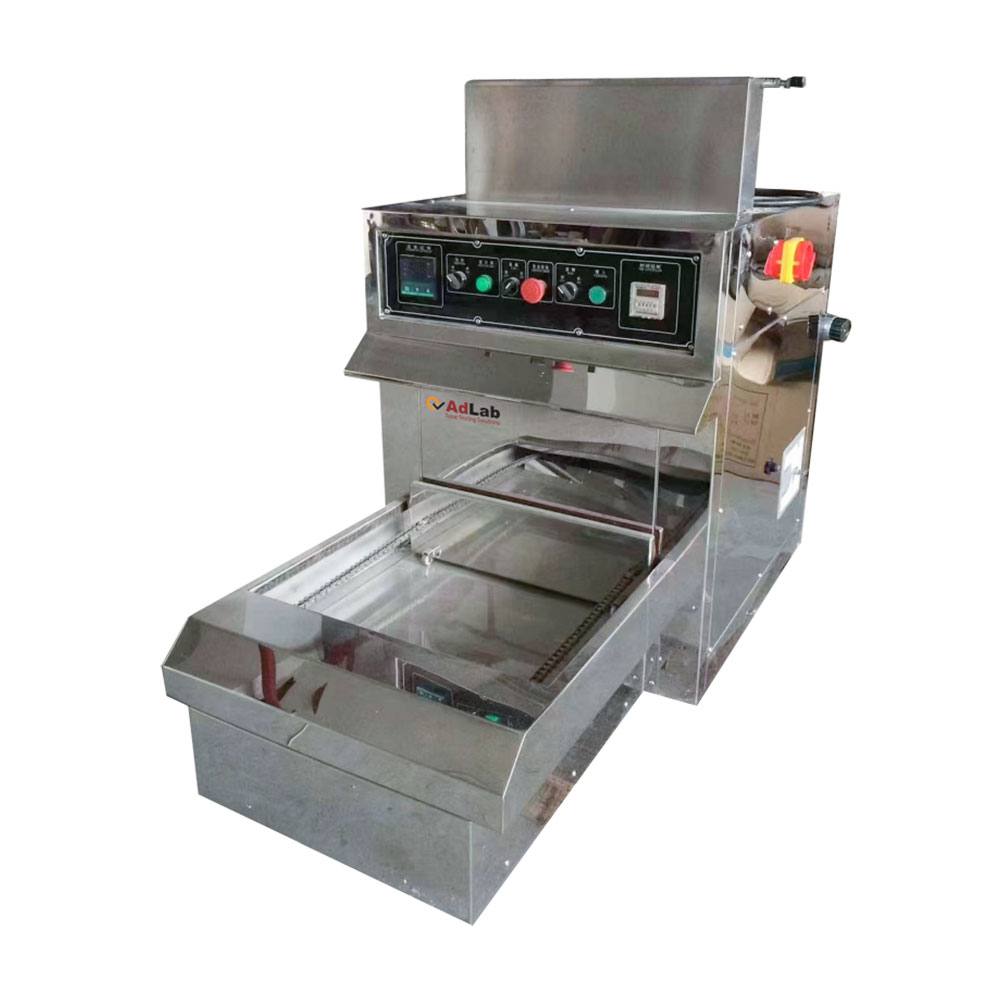

High Temperature Steaming Oven

High Temperature Steaming Oven for drying/shaping/baking/hot-melt color fixing/steaming

The appearance and design of this machine are similar to M-III, except that it has the functions of drying, shaping, baking, and hot-melt color fixing, it also has the function of steaming.

It is suitable for laboratory tests of steaming culture, baking, setting and drying, etc. In the steaming process of printed fabrics in printing factories, by adjusting temperature, humidity and time in the steaming box, testing the discoloration of processing and verifying Drug test results in order to get the correct resin processing formula.

Applications

The appearance and design of this machine are similar to M-III, except that it has the functions of drying, shaping, baking, and hot-melt color fixing, it also has the function of steaming.

It is suitable for laboratory tests of steaming culture, baking, setting and drying, etc.

In the steaming process of printed fabrics in printing factories, by adjusting temperature, humidity

and time in the steaming box, testing the discoloration of processing and verifying Drug test results in order to get the correct resin processing formula.

Technical Specifications

• Material: The whole machine is made of high-quality stainless steel SUS304 plate.
• Test cloth
  • Regular size: 350×400 (effective size 300×350) mm
  • Customized size: 500×600 (effective size 430 × 530) mm
• Hot air circulation control for shaping drying and baking: the working temperature is 20°C~250°C.
• Steaming: the outside is directly fed with steam for steaming.
  • Saturated steam baking, steam processing, steam heating temperature range 102°C±2°C
  • High temperature steam processing, combined use of electric heat and steam, temperature range 100°C-250°C

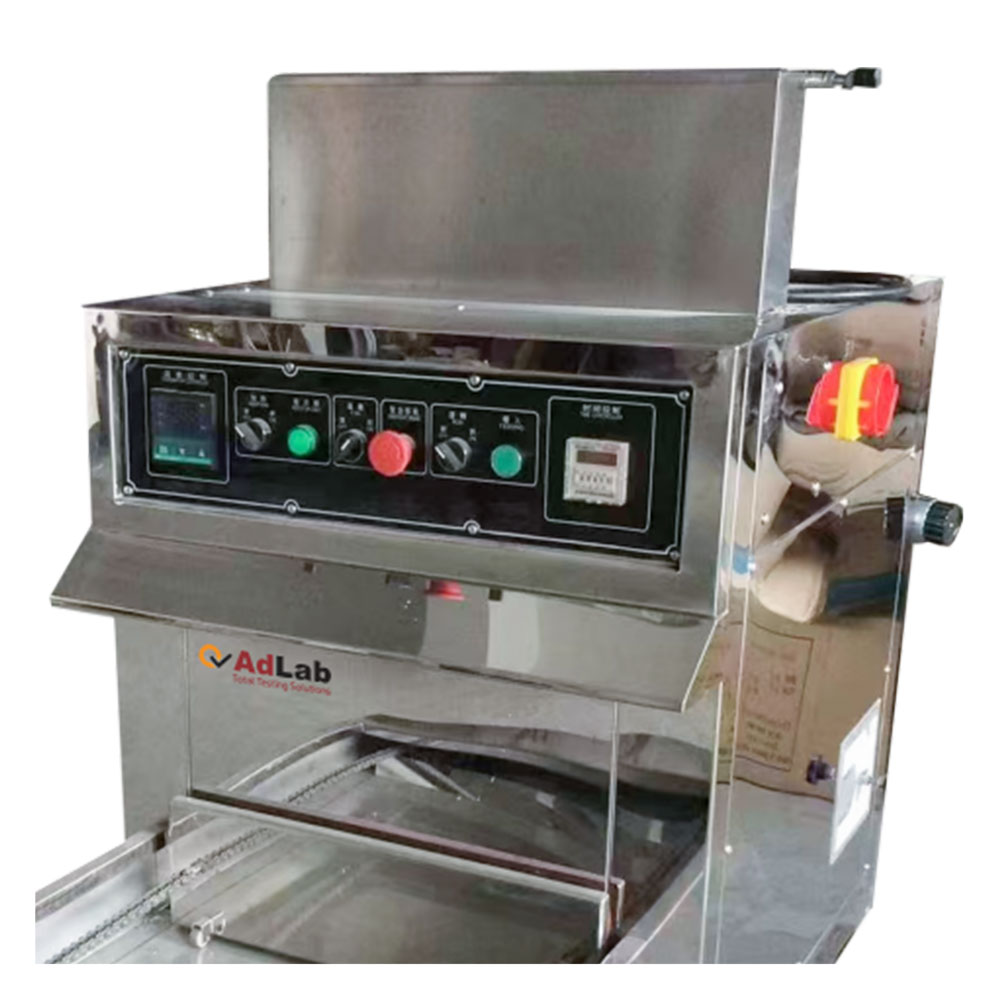

• Insulation control time: 1~99M can be preset, automatically exit after completion, and end the bell.
• Fan: stainless steel wind wheel, fan motor power 180 W.

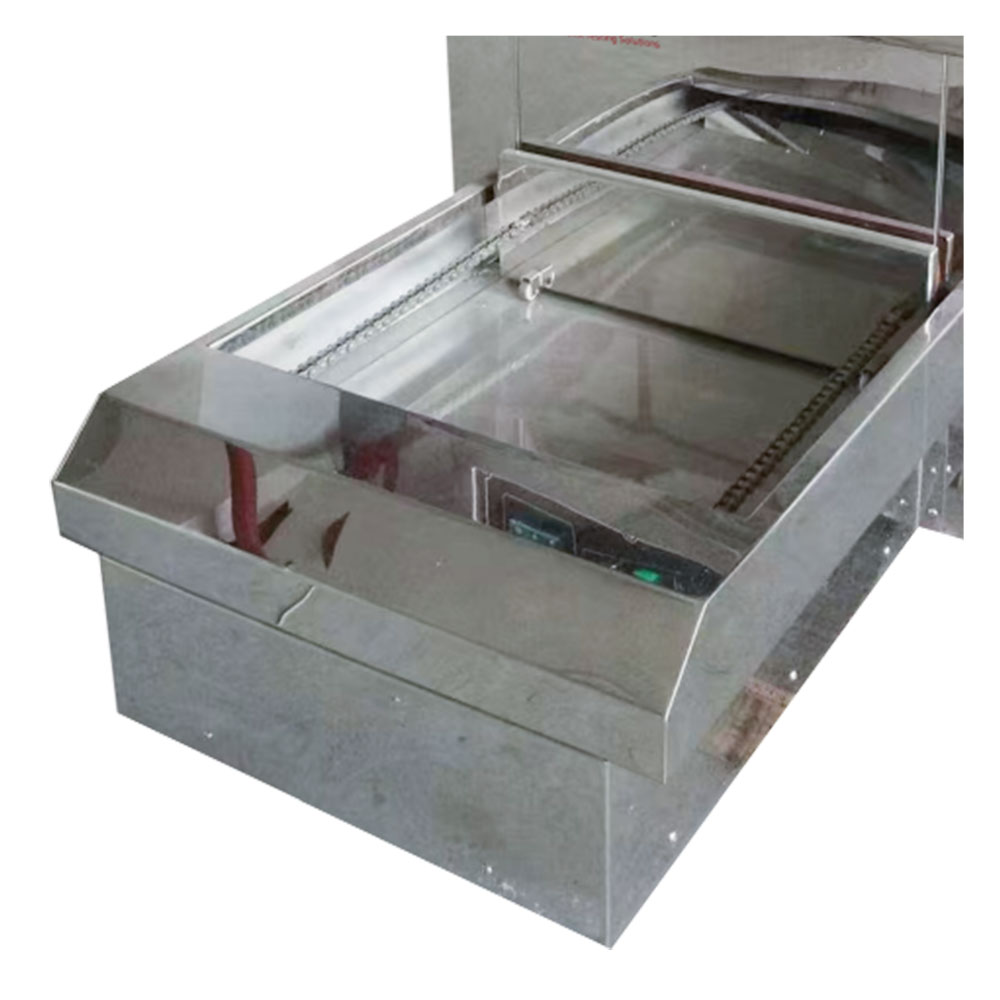

• Needle plate: two-way stretch needle plate cloth frame
• Power supply: three-phase 380V, 50HZ.
• Total power: 6.2KW.
• Dimensions: 1540×700×1050mm.
• Weight: about 180KG.

Why Choose the High Temperature Steaming Oven?

The High Temperature Steaming Oven ensures precise fabric processing with its wide temperature range and uniform air circulation. Its SUS304 construction and versatility make it a top choice for textile labs
