Laboratory Washing Machine

The Laboratory Washing Machine ADLAB-DST8 is a high-performance appliance designed for textile testing across various sectors, including garments, textiles, buying houses, laundry industries, restaurants, laundromats, dry cleaners, nurseries, and facility services. Featuring a high G-factor of 450, wet cleaning capabilities, and a user-friendly 4.3” touchscreen with the AdLab-DST8 control system, this machine offers precise washing and spinning cycles for delicate laundry. It supports both electric and hot water models, with options for drain valves or pumps, and can be configured as a single or stacked unit.

Applications of the Washing Machine

The Laboratory Washing Machine is suitable for a wide range of industries. For example, it’s used in the garment and textile sectors for quality control, in laundromats and dry cleaners for efficient cleaning, and in facility services for handling specialized laundry needs. Its wet cleaning standard and adjustable water levels make it ideal for testing and cleaning delicate fabrics in laboratory settings.

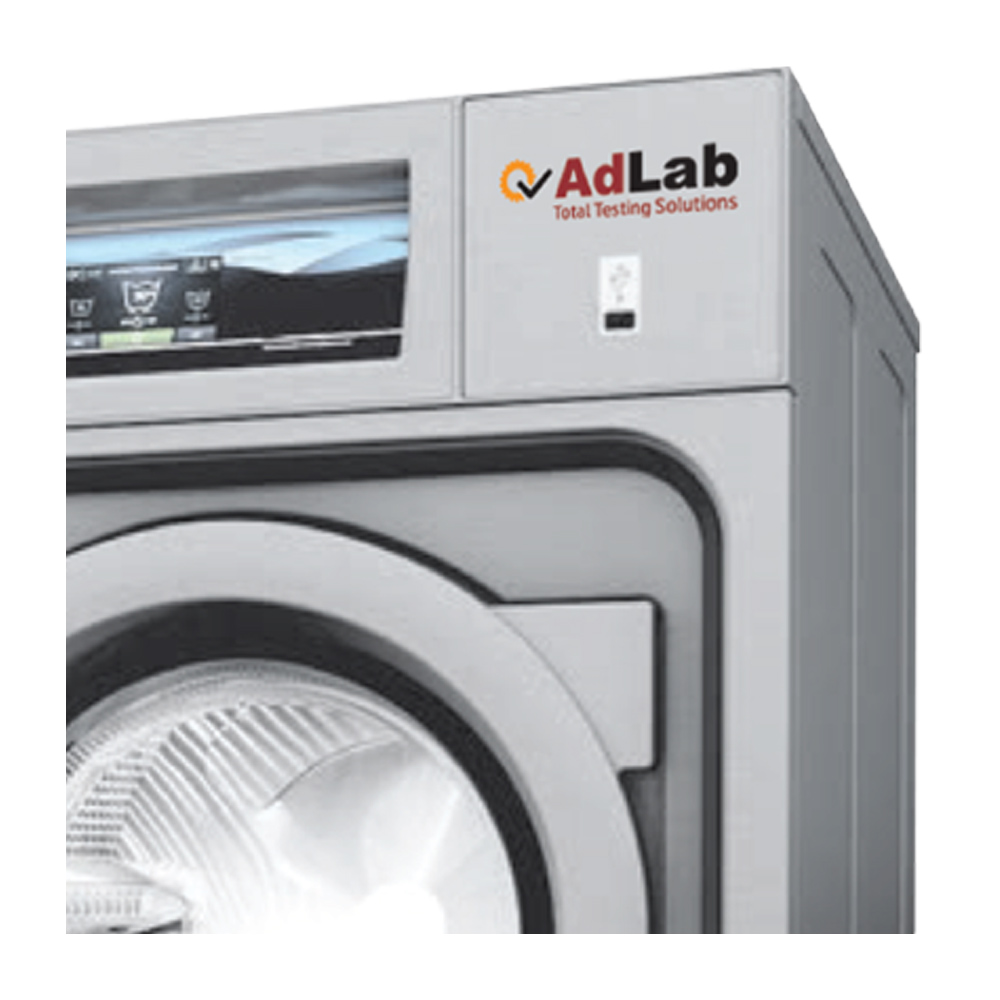

• Advanced Control System: The Laboratory Washing Machine features a fully programmable AdLab-DST8 control with a 4.3” touchscreen, displaying videos for user guidance (ideal for self-service).
• High G-Factor: With a G-factor of 450, it ensures efficient spinning and reduced drying times.
• Wet Cleaning Standard: Offers fully adjustable water levels and washing speeds for delicate laundry.
• Connectivity and Traceability: Includes 8 dosing signals, USB connection, free PC software for programming and data analysis, and remote communication readiness.
• Versatile Options: Supports a multi-payment system, double drain kit, silicone door gasket, reversing door opening, and more.

Technical Specifications

The Laboratory Washing Machine  includes the following specifications:

• Drum:
  • Capacity: 8 kg
  • Volume: 80 L
  • Diameter: 532 mm
  • Depth: 360 mm
• General Data:
  • Washing/Spinning Speed: 50/1250 r.p.m
  • G-Factor: 450
  • Maximum Force Transmitted: 1.47 ± 0.53 kN
  • Frequency Dynamic Force: 18.33 Hz
  • Noise Level: <70 dB
  • Self-Service Version: Yes
  • Double Drain: Yes
  • Weighing System: No
• Door:
  • Center Door Height/Base Door Height: 537/280 mm
  • Diameter: 373 mm
• Power:
  • Motor: 0.75 kW
  • Electric Heating Power: 6 kW
  • Total Electric Power (Electric Model): 6.25 kW
  • Total Electric Power (Hot Water Model): 0.75 kW
• Connections:
  • Electric Tension (220V I + N + T): 2×4/32A
  • Electric Tension (230V III + T): 3×2.5/20A
  • Electric Tension (400V III + N + T): 4×1.5/16A
  • Hot Water Tension (110V I + N + T): 2×1.5/10A
  • Hot Water Tension (400V III + T): 4×1.5/16A
  • Water Inlet: BSP 3/4”
  • Drain: BSP 2”
• Dimensions/Packing Dimensions:
  • Net Width/Gross Width: 680/710 mm
  • Net Depth/Gross Depth: 608/832 mm
  • Net Height/Gross Height: 1,040/1,130 mm
  • Net Weight/Gross Weight: 140/150 kg
  • Volume: 0.67 m³

Program Library

The Laboratory Washing Machine comes with a comprehensive program library, including:

• P1: Energetic 90°C (194°F)
• P2: Energetic 60°C (140°F)
• P3: Energetic 30°C (86°F)
• P4: Energetic Cold
• P5: Normal 60°C (140°F)
• P6: Normal 30°C (86°F)
• P7: Normal Cold
• P8: Delicates 40°C (104°F)
• P9: Delicates Cold
• P10: Extra Delicates Cold
• P11: Economy 90°C (194°F)
• P12: Economy 60°C (140°F)
• P13: Economy 30°C (86°F)
• P14: Economy Cold
• P15: Sluice
• P16: Long Spin
• P17: Short Spin
  These programs allow users to customize washing cycles based on fabric type and cleaning requirements.

Why Choose the Laboratory Washing Machine?

The Laboratory Washing Machine is a top choice for textile testing and cleaning professionals. Because of its high G-factor and intelligent spin cycle management, it ensures efficient washing while minimizing noise and wear on components. Furthermore, its user-friendly touchscreen, wet cleaning capabilities, and connectivity features make it a versatile solution for labs and commercial laundry settings.
