Application

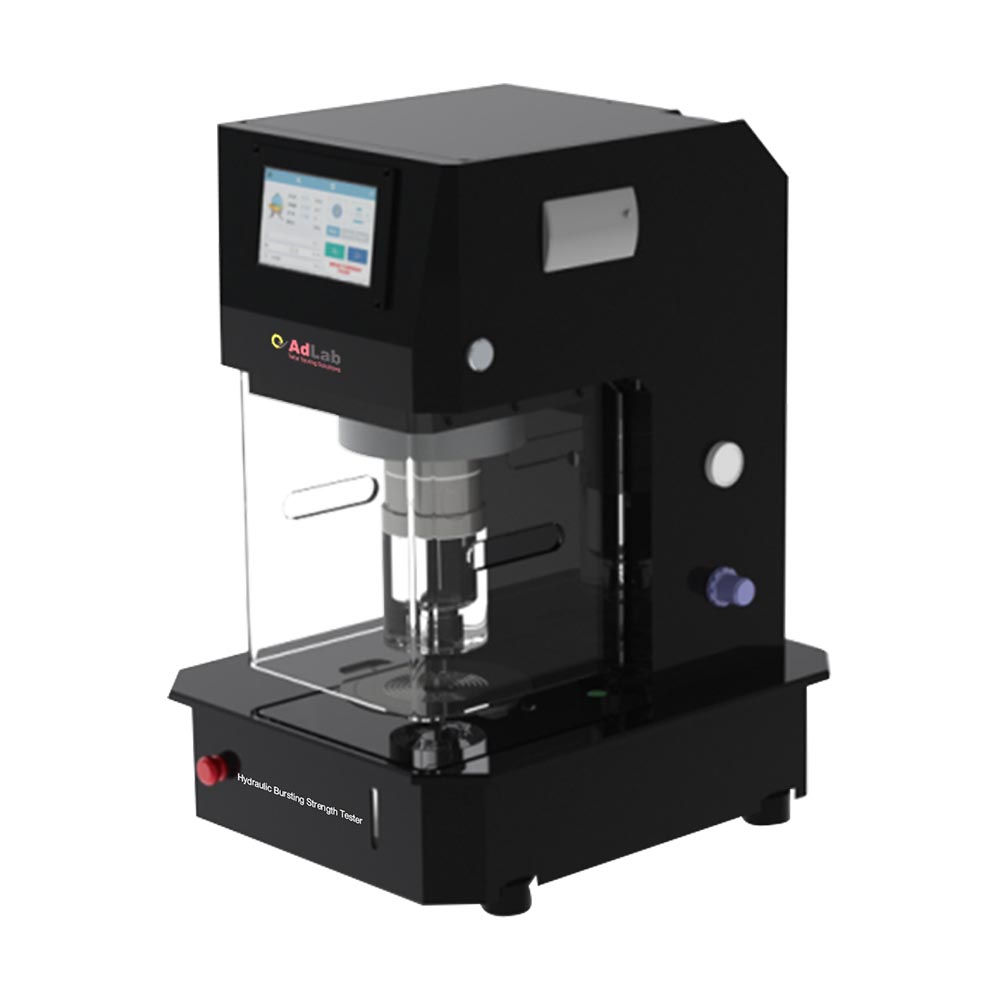

Hydraulic Bursting Strength Tester used for measuring the performance of burst strength and burst expansion of various knitted fabrics, woven fabrics, non-woven fabrics, paper, leather, plastics, and other materials when subjected to simultaneous forces in warp and weft directions. Existing data indicates that there is no significant difference in the bursting strength results obtained using hydraulic and pneumatic bursting instruments when the pressure does not exceed 800kPa. This pressure includes the performance level of most ordinary clothing. For special textiles that require high bursting pressure, hydraulic method is more suitable

Standards Compliant

GB/T7742.1, FZ/T60019, FZ/T01030, ISO13938.1, ASTMD3786, JIS L1018 6.17, BS 3424-6, ISO3303-2, EN12332-2, Adidas, Next, Mother care and other related standards

Features

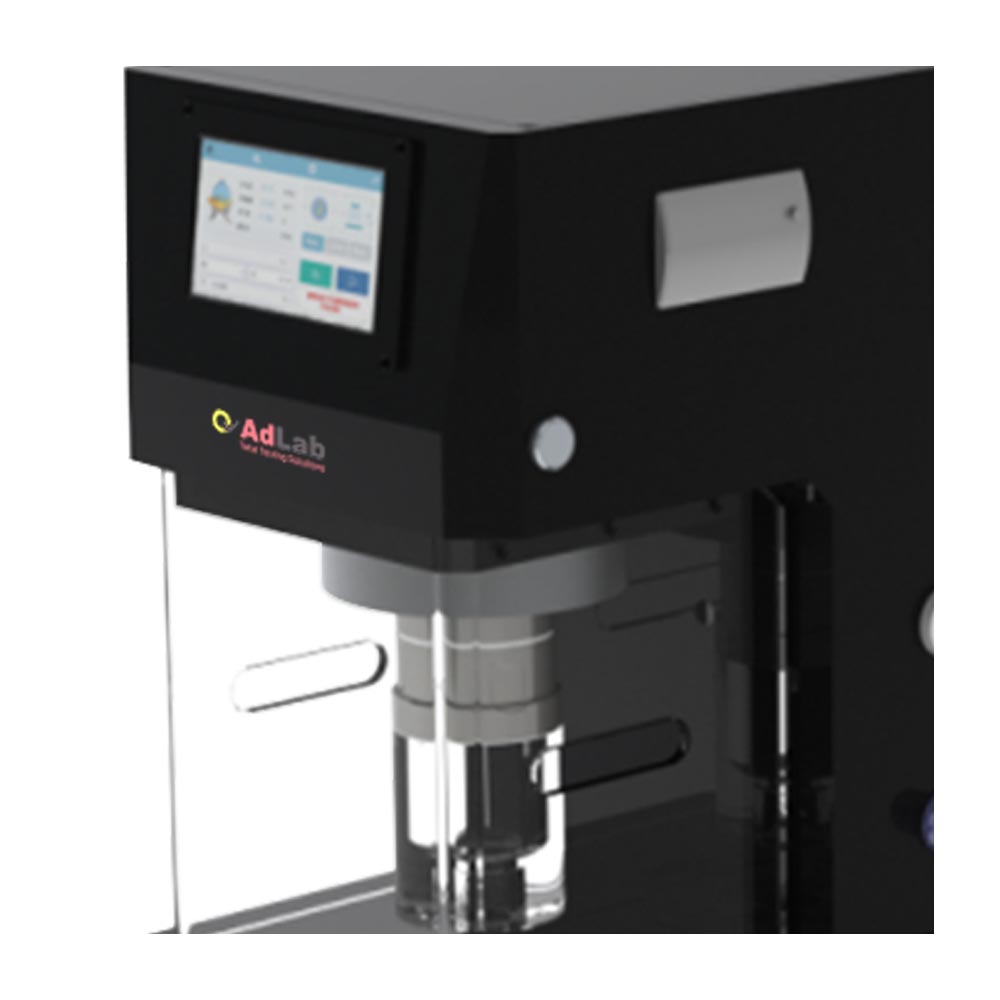

Adopting industrial grade color touch screen display and control, the user-friendly human-machine interface is simple and easy to understand, and the operation is more convenient. Chinese and English display can be converted.
The expansion height adopts non-contact laser ranging technology, which has high measurement accuracy, stability, and reliability.
It has four testing methods: constant rate expansion, constant pressure cycling, constant expansion degree, and timed expansion. Multiple testing methods meet the requirements of different industries.
The units of bursting strength can be selected (kPa, bar, psi), and the units of bursting height can be selected (mm, cm, inch) to meet the requirements of different standards.
Equipped with various sample holders and automatic recognition function of sample fixtures.
The sample is clamped using a pneumatic gripper, and the slow pressing method ensures that the sample is not damaged and does not slip.
It has a pressure over range protection function to prevent damage to the instrument.

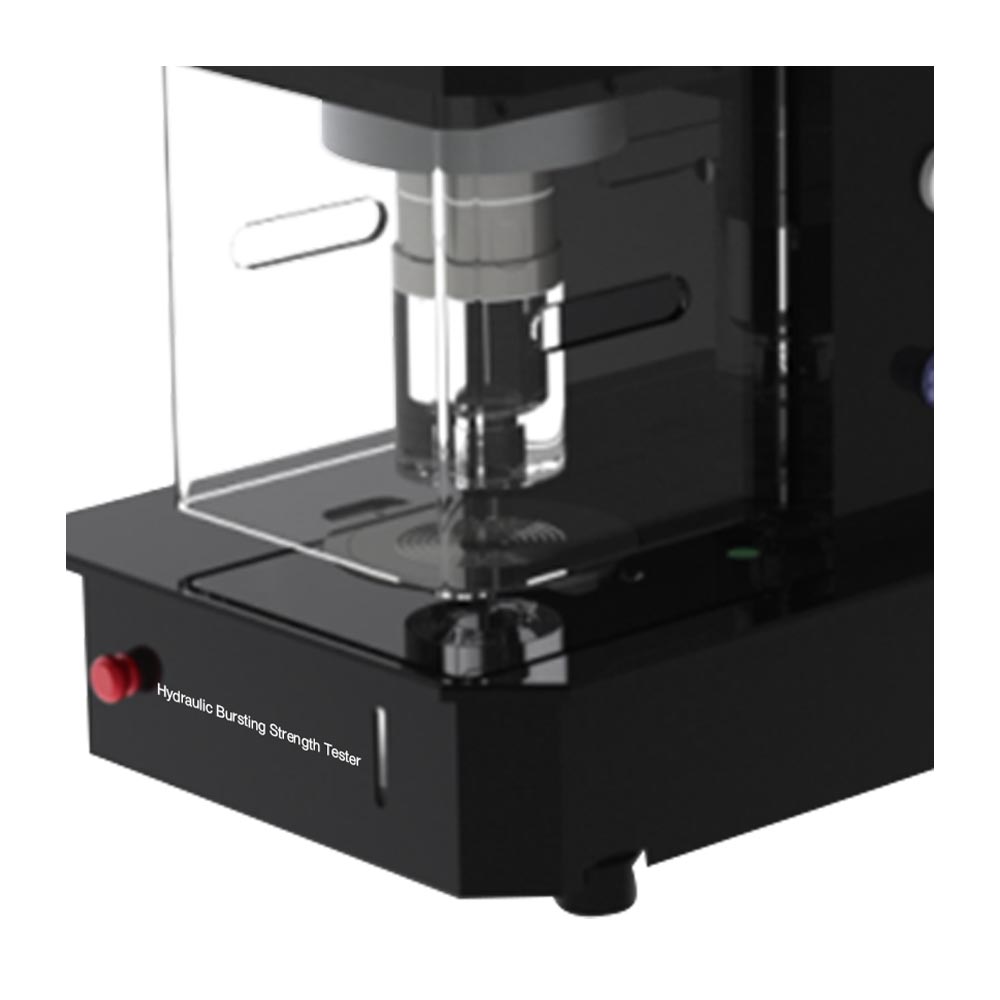

The high transparency organic glass sample holder cover is equipped with an embedded LED lighting, which can clearly observe the test process.
An external organic glass safety cover is installed to prevent pinching and ensure safer use.
It has the function of storing experimental data and printing test reports

Technical Parameter

Standards: GB/T 7742.1, FZ/T 60019, FZ/T 01030, ISO 13938.1, ASTM D3786, JIS L1018 6.17, BS 3424-6, ISO 3303-2, EN 12332-2
Color Touch Screen: 7 inches
Printer: Micro thermal paper printer
Sample Clamping Method: Pneumatic gripper
Expansion Pressure Range: 0–2.00MPa, division value: 0.0001MPa
Test Accuracy: ≤±0.2% FS
Test Modes: Constant speed expansion, constant pressure cycle, constant expansion degree, timed expansion
Pressure Rate: 50–500ml/min
Test Area: 50cm² (Φ 79.8mm), 7.3cm² (Φ 30.5mm)
Expansion Height Range: 70mm (50cm²), 30mm (7.3cm²), division value: 0.01mm
Measurement Method: Laser ranging
Laser Sensor Accuracy: ±0.1% FS
Elastic Diaphragm: Thickness <2mm
Output Format: Real-time display, query display, print test reports
Units: Bursting strength (kPa, psi, bar), expansion height (mm, cm, inch)
Boundary Dimension: 450 x 540 x 670mm
Power Supply Voltage: AC 220V ±10%, 500W
Weight: 75kg
Gas Source Requirements: Pressure 0.70–0.80MPa

Note: Gas source requirements: Pressure: 0.70MPa-0.80MPa

Standard Configuration

Sample holders – 7.3cm2， 50cm2
Elastic diaphragms – 2 pcs
Calibrate sealing plate – 1 pc
Standard measuring block – 1 pc

Why Choose the Hydraulic Bursting Strength Tester?

The Hydraulic Bursting Strength Tester ensures accurate bursting strength testing with its laser technology and multiple test modes. Its compliance with ISO 13938.1 makes it ideal for high-pressure textile testing.
