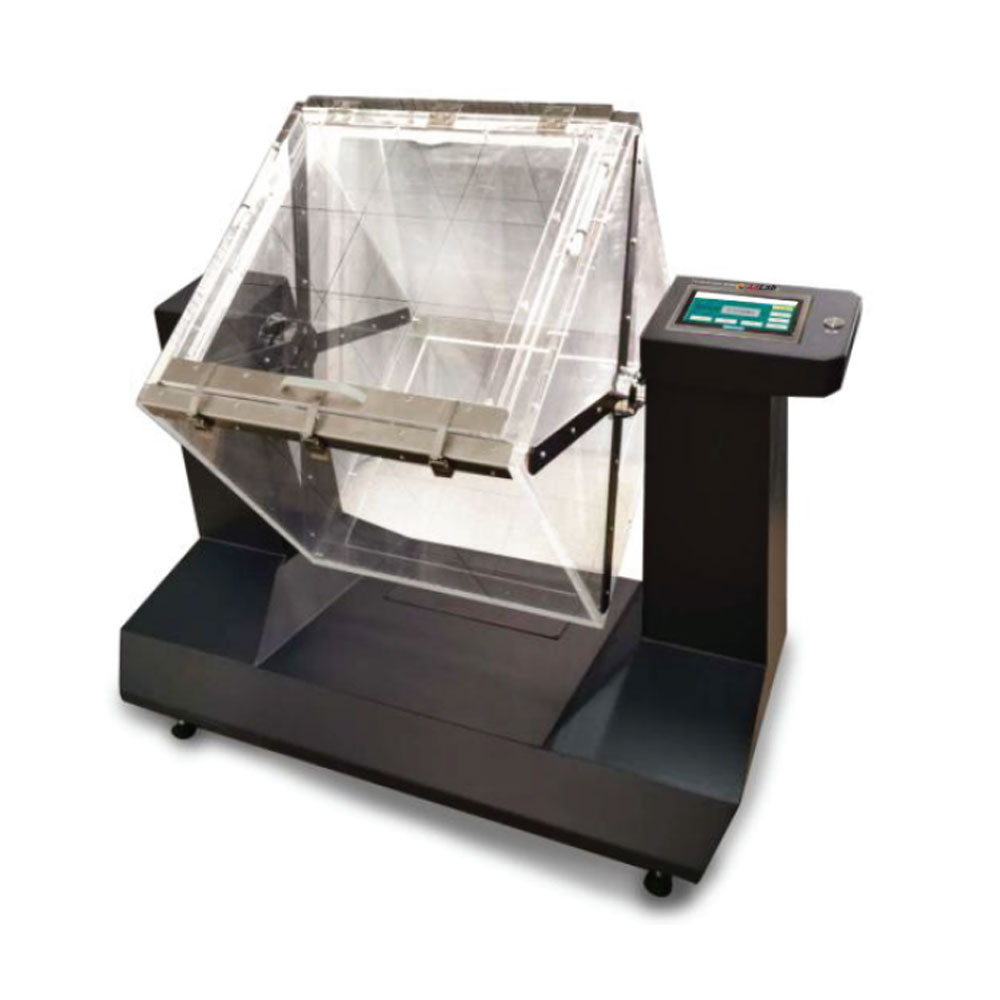

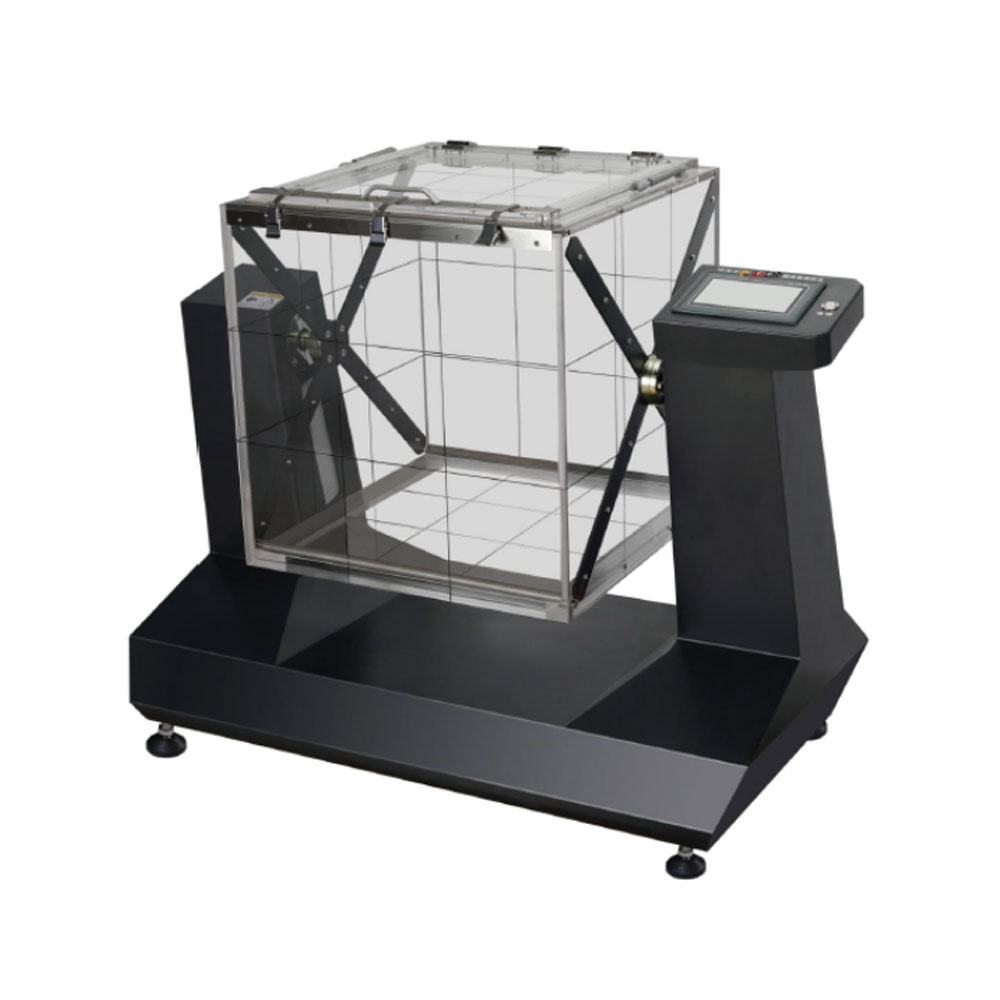

Garment Down Proof Tester

Scope of Application

It is used to test the performance of various fabrics in preventing velvet or feathers from leaking out from between seams.

Testing Standards

GB/T14272-2021 Appendix D Large box garment transfer method GB/T112705.2-2024 etc.

Technical Characteristics

1. The main drafting unit of the GB/T14272-2021 standard, Models provided for assessment and verification test equipment;
2. Fully exposed frameless plexiglass panel reduces blind spots;
3. Single-sided zone markings prevent lost counting;
4. Decentralized lighting system with a dark background in the counting area for easy observation;
5. Space-based static elimination system;
6. Imported AC servo drive for smooth and precise operation;
7. 18mm thick imported plexiglass enclosure for noise reduction and scratch resistance;
8. Lift-up door with gas strut structure for convenient sample removal and placement.

Technical Specification

1. Internal dimensions of the rotary box: (60 plus/minus 0.5) * cm(60 plus/minus 0.5) * cm(60 plus/minus 0.5) * cm
2. Rotary box speed: (42±1)r/min (forward and reverse rotation, adjustable from 1 to 60)
3. Number of rotations setting: 1~99999 times
4. Silicone rubber special-shaped balls:

Type A:
Quantity: 15 pieces
Shore hardness: (50±5)A
Weight: (77±3)g
Size: Upper circle ($41±2)mm × Lower circle (49±2)mm x Height (40±2)mm

Type B:
Quantity: 24 pieces
Shore hardness: (55±5)A
Weight: (23.75±0.5)g
Size: Upper circle ($31±2)mm × Lower circle ($37±2)mm x Height (22±2)mm

5. Operating noise <75dB
6. Power supply: AC220V±10%, 50Hz, 1000W
7. Dimensions: 1282×680×1120mm (LxWxH)
8. Weight: Approximately 200kg
