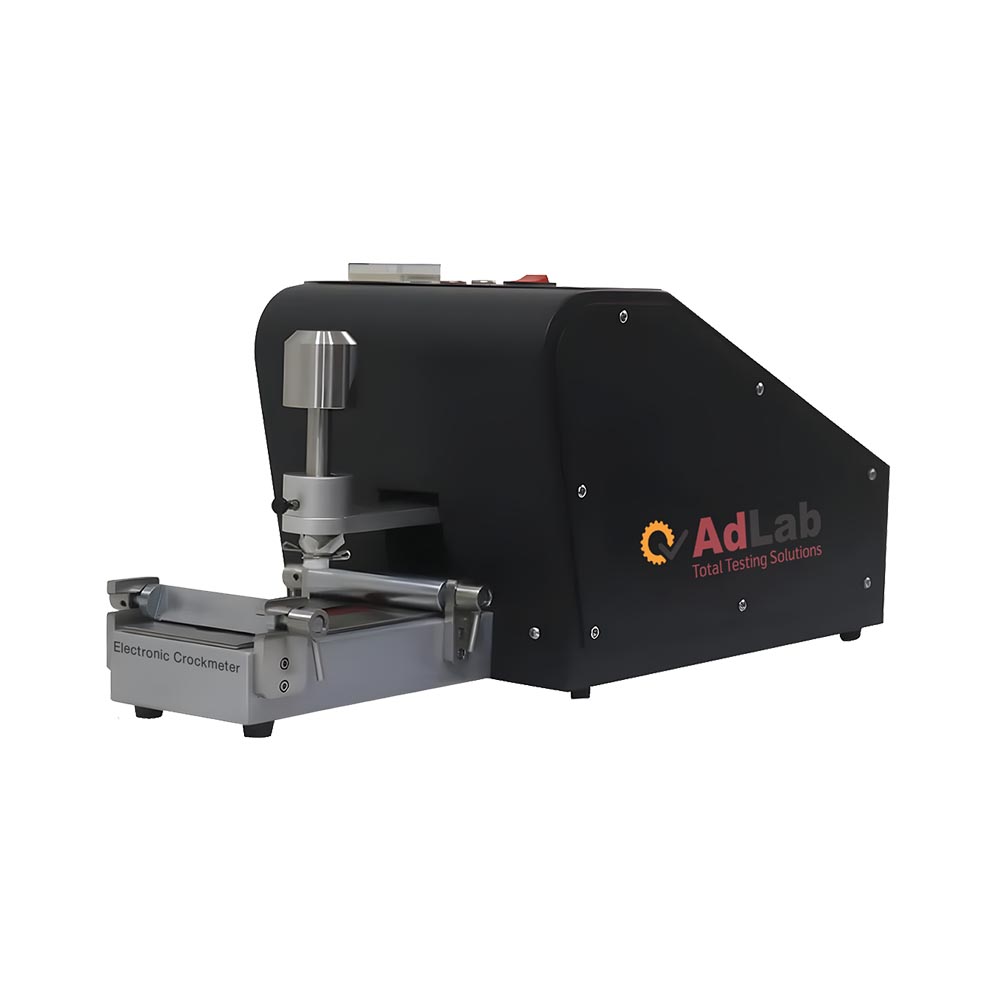

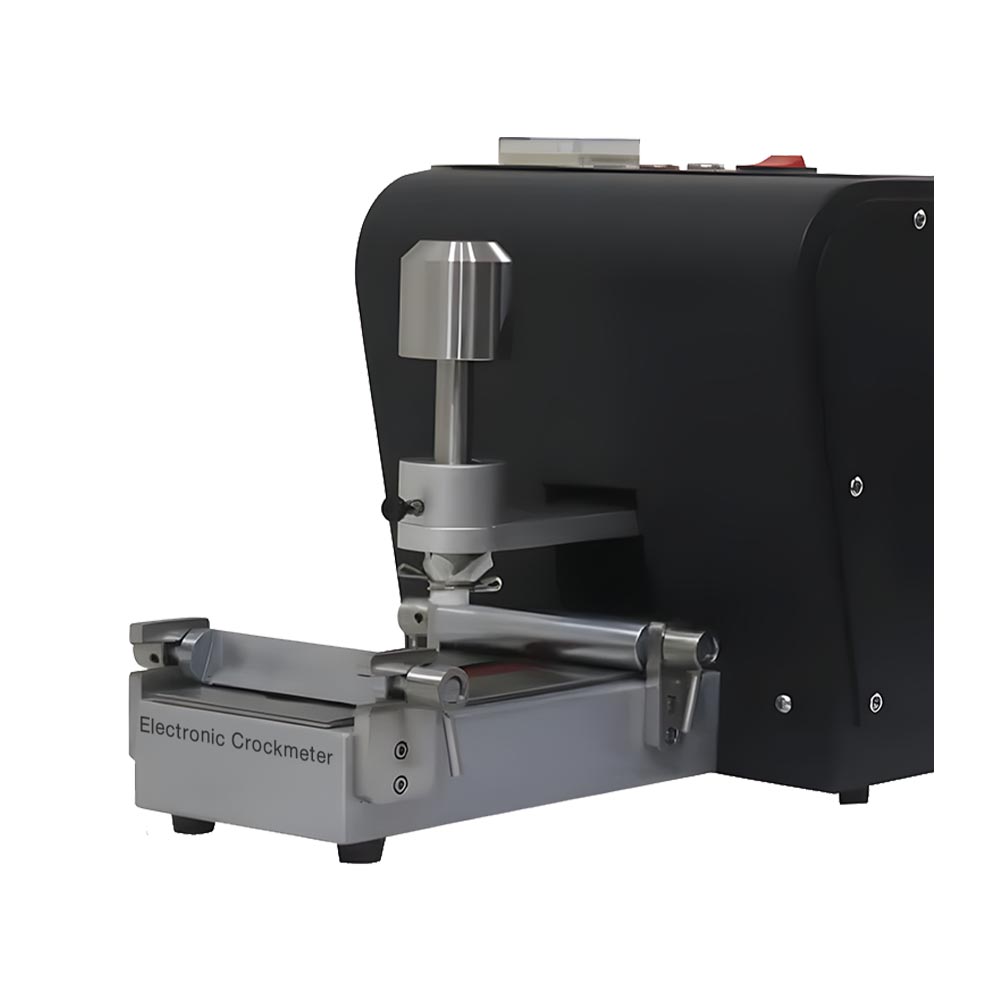

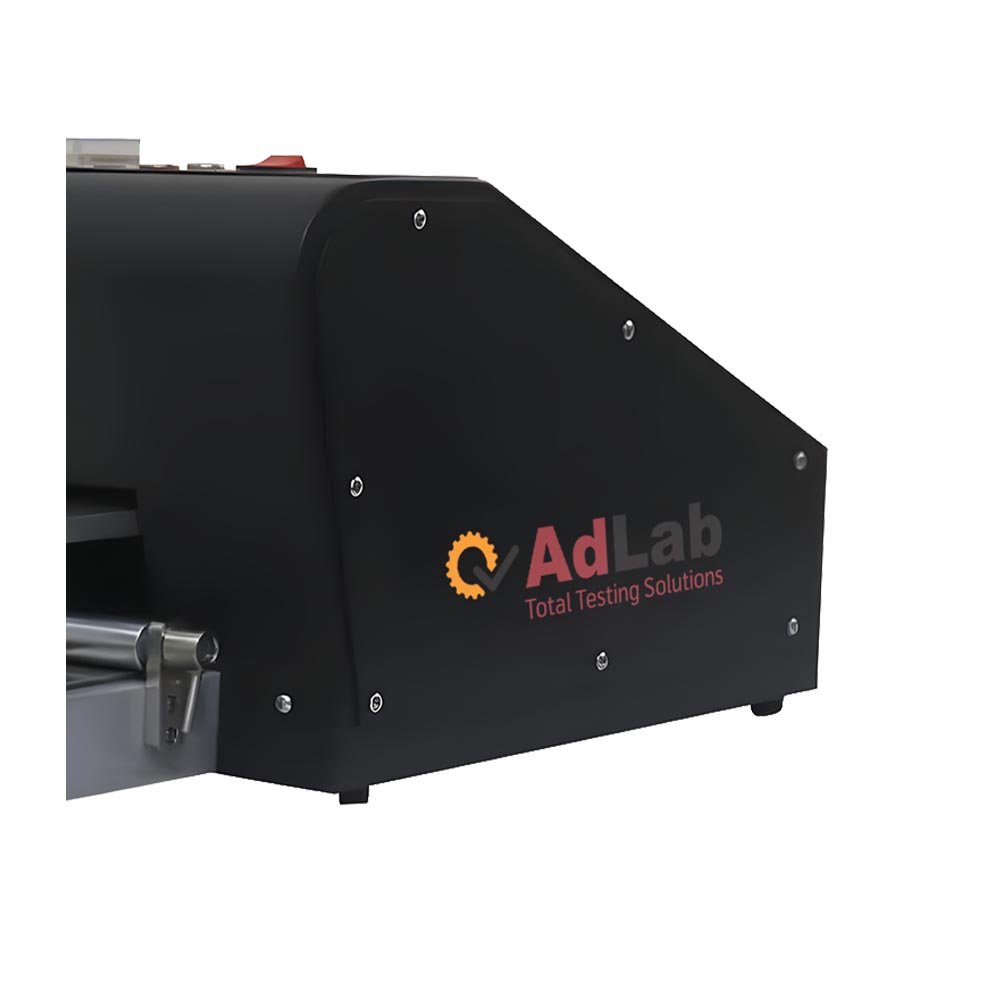

Electronic Crock Meter, To determine the color fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results.

Standard

BS 1006- D02, ISO 105- X12/D02, AATCC 8/165, ASTM D6279, JIS L 0849 Type1, JIS L 0862 Type1

Features

Metal box, High-temperature baking coating, easy maintenance.
Electric motor, fitted with a pre-determined electronic counter for strokes up to 9999, experiment complete successfully, automatic stop.

Key Specifications

Application: Color fastness testing of textiles to dry or wet rubbing
Standards: BS 1006-D02, ISO 105-X12/D02, AATCC 8/165, ASTM D6279, JIS L 0849 Type1, JIS L 0862 Type1
Rubbing Head Diameter: 16mm
Vertical Pressure: 9N±0.2N
Rubbing Head Track: 104±3mm
Test Speed: 60±2 rpm
Power Supply: AC 220V 50/60Hz
Dimensions: 62 x 26 x 28cm
Weight: 14kg

Standards Accessories

Rubbing cloth – 1 box
Sand paper – 2 pcs
Rings – 2 pcs
Power line – 1 pc

Control System

Control Mode – Electronic Control

Optional Accessories

AATCC & ISO Gray scale

Why Choose the Electronic Crock Meter

Electronic Crock Meter, Accurately test textile color fastness to dry or wet rubbing with high repeatability. Features a pinned acrylic sample holder, precise electronic counter, and automatic stop function. Durable metal construction, easy maintenance, and compliance with ISO, BS, AATCC, ASTM, and JIS standards ensure reliable, consistent results every time.
