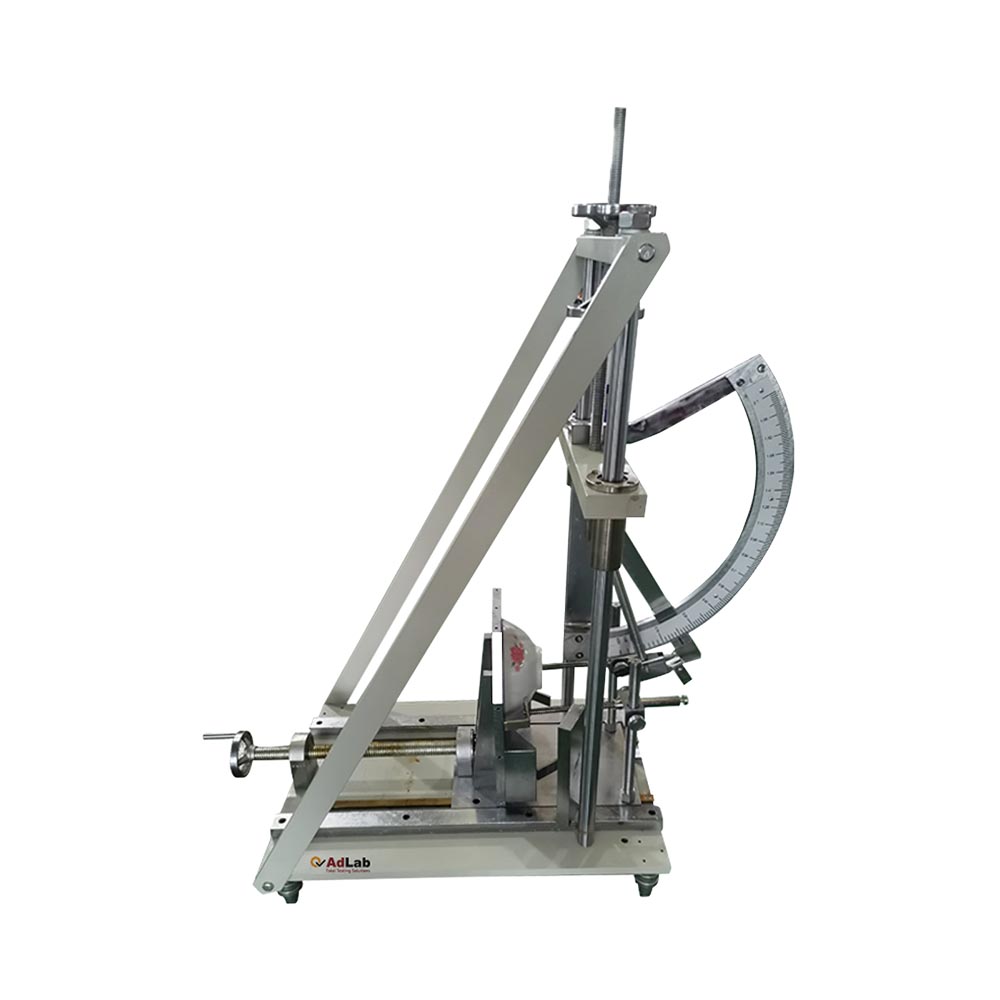

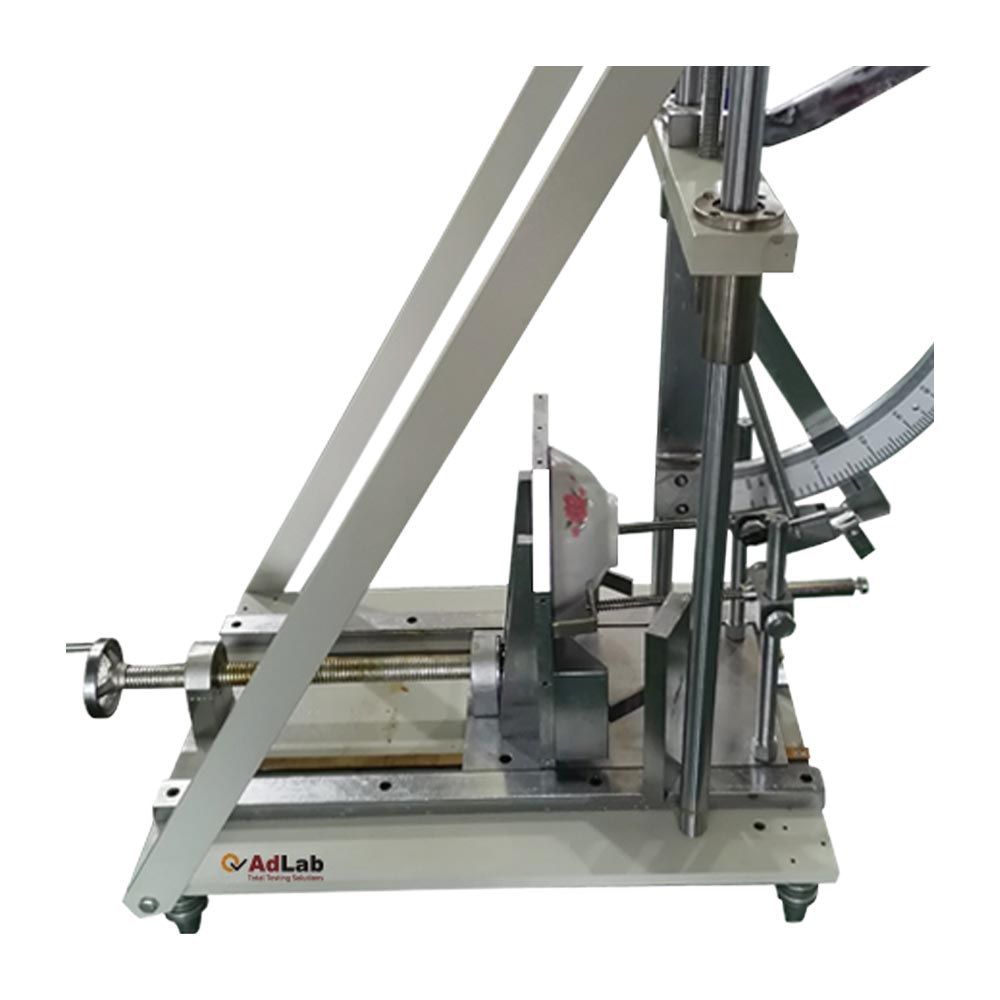

Ceramic Impact Tester

Overview

The Ceramic Impact Tester is a specialized device designed to predict the resistance to impact breakage of ceramic products during service. This Impact Tester performs tests on flatware and hollow ware, assessing impact resistance at the center and rim, as well as chipping resistance at the rim. Suitable for both glazed and unglazed specimens, it is widely used in the ceramics industry.

Application

• Ceramic Impact Tester predicts the resistance to impact breakage of ceramic products in service, which covers two test methods:
• Impact tests at the center of both flatware and hollow ware and at the rim or hollow ware;
• Chipping tests at the rim of flatware. Specimens may be either glazed or unglazed.

Test Standards

ASTM C368-88
A pendulum impact tester having the essential features described in ASTM Standard
Test Method C368-88 “Impact Resistance of Ceramic Tableware”, 2.1. BS EN 12980 – 2000

Specifications

• Max. Impact Energy: 2.1 J
• Scale Min. Indexing Value: 0.014 J
• Pendulum Max. Rising Angle: 120°
• Hardness of Steel Tup: Rockwell C55
• Max. Lifting Distance: 120 mm
• Specimen Size: 6″~10″ flatware, height < 10 cm; bowl diameter > 8 cm; mug diameter > 8 cm
• Weight: 100 kg

Why Choose the Impact Tester?

The Ceramic Impact Tester is essential for manufacturers and quality control teams in the ceramics industry. Since impact resistance and chipping resistance are critical for ceramic tableware durability, this tester provides precise results aligned with standards like ASTM C368-88 and BS EN 12980-2000. For instance, it helps evaluate flatware, bowls, and mugs, ensuring they meet safety and performance requirements. Its robust design and versatile testing capabilities enhance production efficiency, while the pendulum mechanism ensures repeatability. Consequently, producers can improve product reliability and satisfy market demands
