Pneumatic Bursting Strength Tester

Pneumatic Bursting Strength Tester Overview

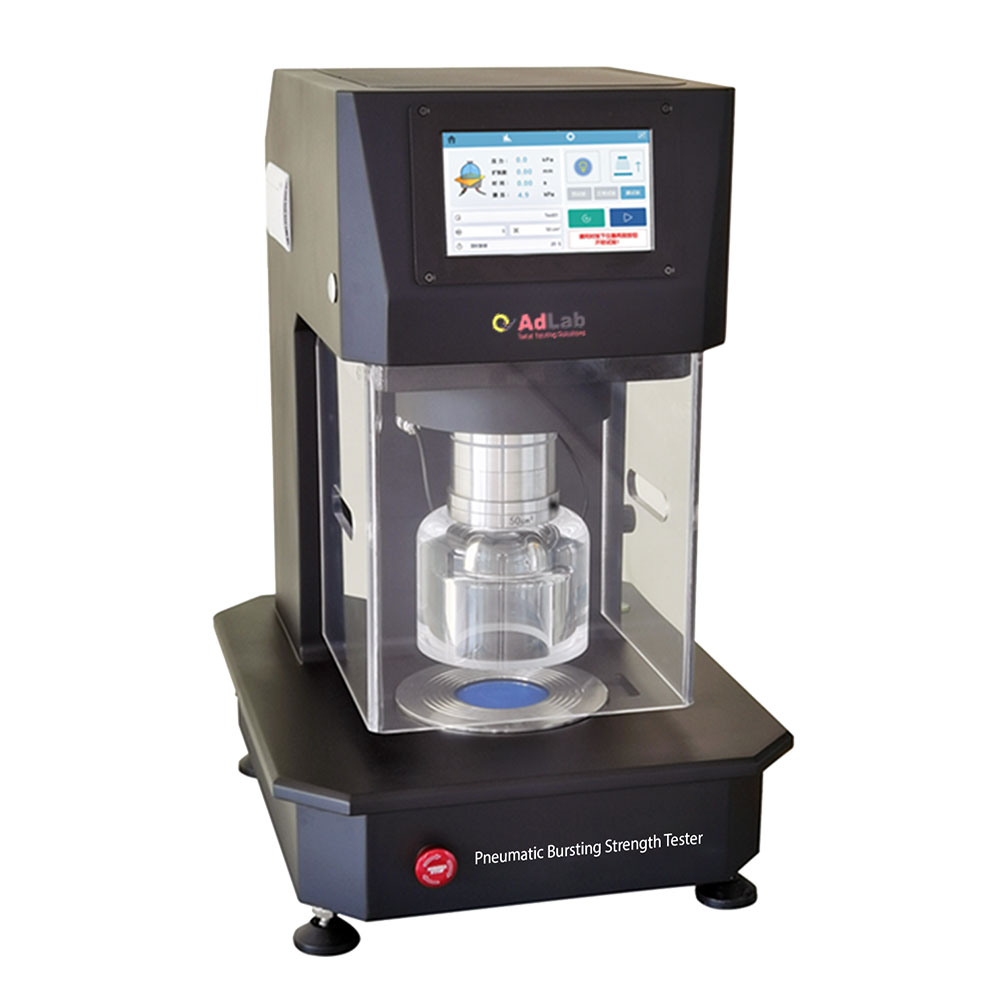

The Pneumatic Bursting Strength Tester is a specialized device used for measuring the burst strength and expansion of knitted fabrics, woven fabrics, non-woven fabrics, laminated fabrics, and other materials manufactured by various processes. This Pneumatic Bursting Strength Tester is ideal for most ordinary clothing, as experimental results show no significant difference between hydraulic and pneumatic methods when pressure does not exceed 800kPa. For special textiles requiring higher pressure, a hydraulic method is recommended. For more information, please Contact with AdLab

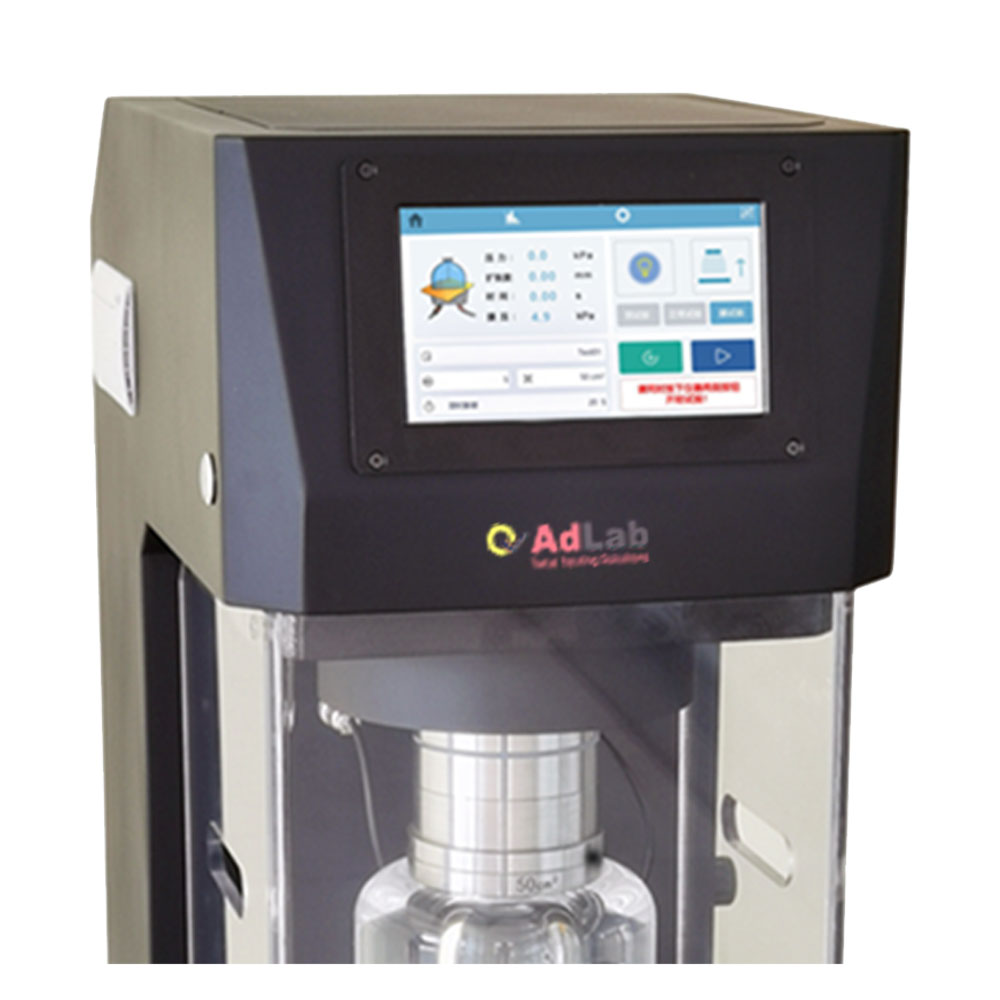

• It adopts an industrial-grade 7-inch color touch screen for display and operation control, with a user-friendly interface that supports both Chinese and English languages.
• The expansion height is measured using non-contact laser ranging technology, ensuring high accuracy and reliability.
• It offers four pressurization methods: timed, constant speed, constant pressure, and constant expansion, meeting diverse industry requirements.
• The units for bursting strength (kPa, bar, psi) and height (mm, cm, inch) are selectable to comply with different standards.
• Equipped with various sample holders and an automatic recognition function for fixtures, it ensures versatility.

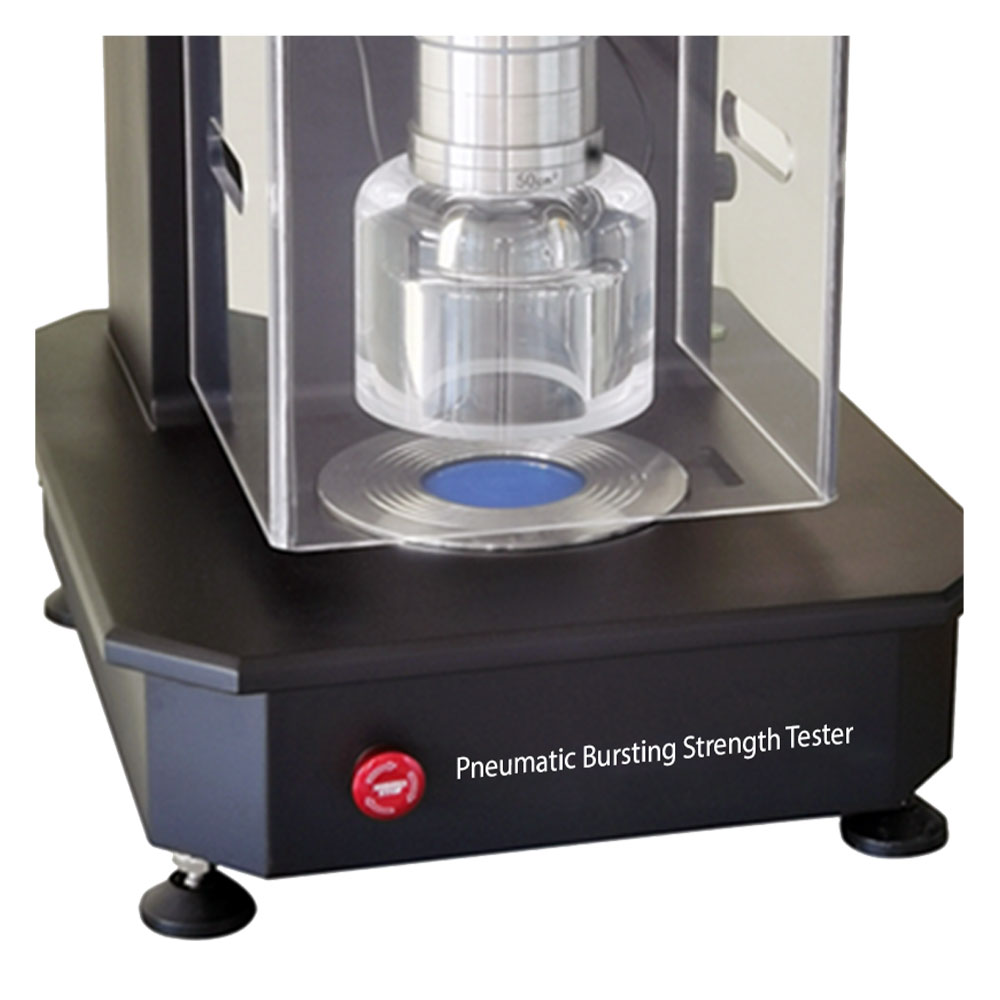

• The pneumatic gripper clamps the sample using a slow pressing method to prevent damage or slippage.
• It includes safety features like pressure over-range protection and a high-transparency organic glass cover with LED lighting for clear observation.
• The tester also supports storing experimental data and printing test reports via a micro thermal paper printer.

• Color Touch Screen: 7 inches
• Printer: Micro thermal paper printer
• Sample Clamping Method: Pneumatic gripper
• Expansion Pressure Range: 0.2 kPa to 850.0 kPa, division value: 0.1 kPa
• Pressure Method (Pneumatic): Constant rate expansion, constant pressure cycle, constant expansion degree, and timed expansion
• Pressure Rate: 1.0 kPa/s to 50.0 kPa/s
• Test Area: Standard configuration: 50cm² (Φ 79.8mm), 7.3cm² (Φ 30.5mm)
• Expansion Height Range:
  • For 50cm² test area: ≤ 70mm, division value: 0.01mm
  • For 7.3cm² test area: ≤ 30mm, division value: 0.01mm
• Measurement Method for Swelling Height: Laser ranging
• Elastic Diaphragm: Thickness < 2mm
• Output Format: Real-time display, query display, printout test reports
• Dimensions (W x D x H): 420 x 520 x 610mm
• Power Supply: AC220V ± 10%, 100W
• Weight: 75kg
• Standard Configuration:
  • Sample holders: 7.3cm², 50cm²
  • Elastic diaphragms: 2 pcs
  • Calibrate sealing plate: 1 pc
  • Standard measuring block: 1 pc

Why Choose this Strength Tester?

The Pneumatic Bursting Strength Tester is an essential tool for textile manufacturers aiming to ensure the durability of their fabrics. Since bursting strength is a critical factor in determining the quality of knitted, woven, non-woven, and laminated fabrics, this tester provides precise measurements under controlled conditions. For instance, it supports testing for most ordinary clothing with pressures up to 800kPa, making it a versatile solution for various industries. Moreover, its compliance with standards like ISO 13938-2 and GB/T 7742.2 ensures reliable results. Consequently, manufacturers can improve product quality and meet industry standards. For more details on how this equipment can enhance your testing process, please Contact with AdLab
