Introduction

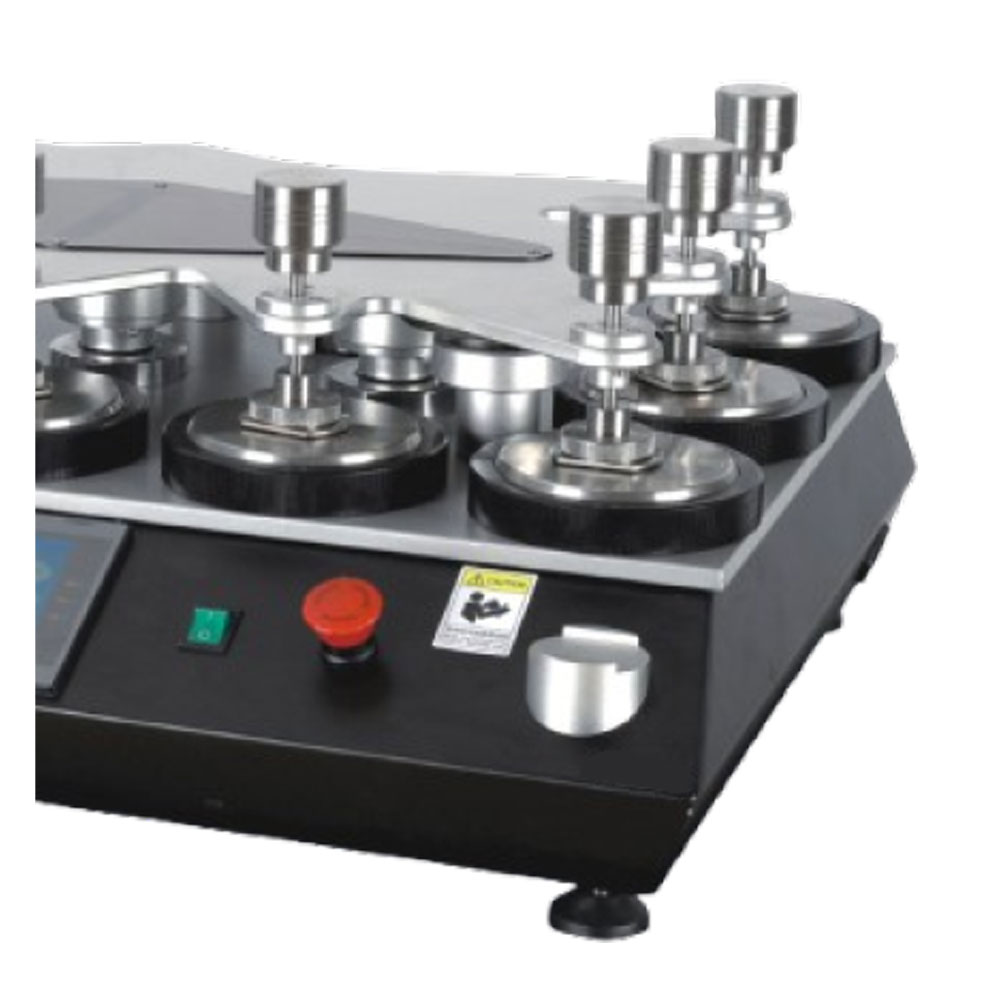

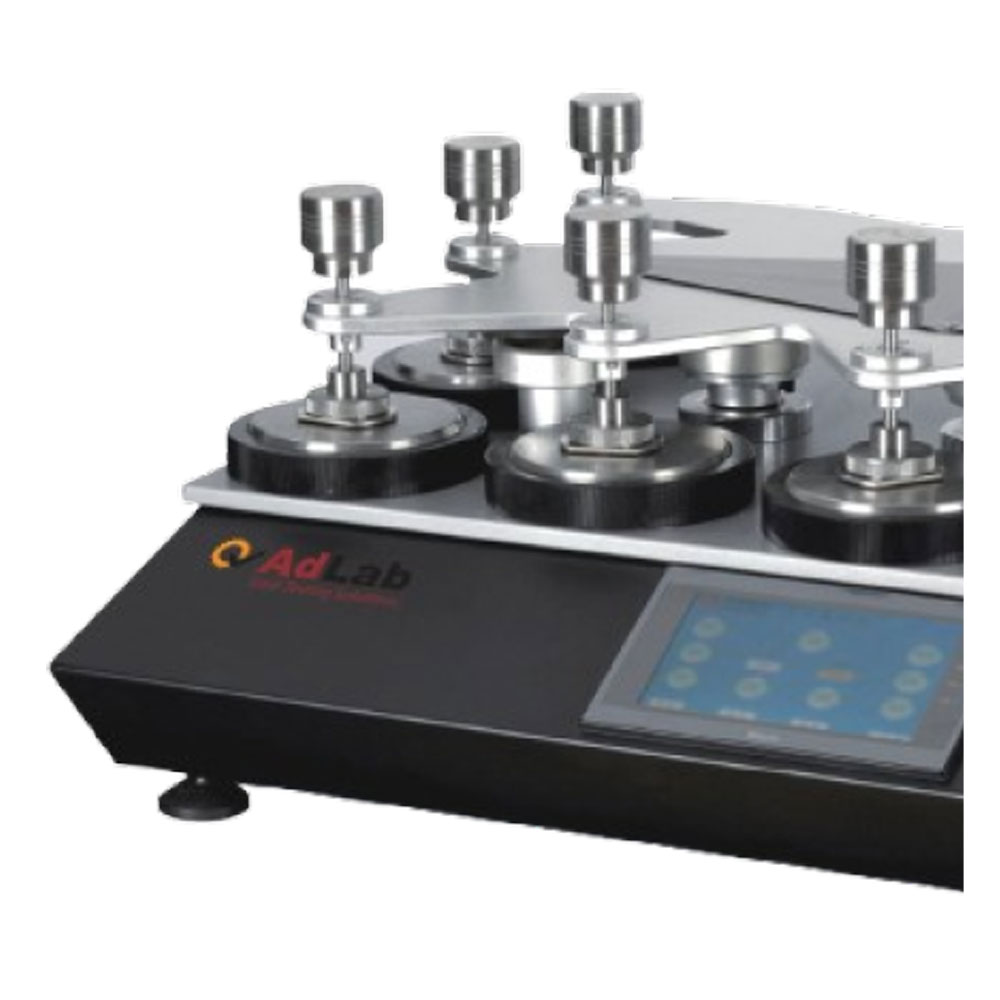

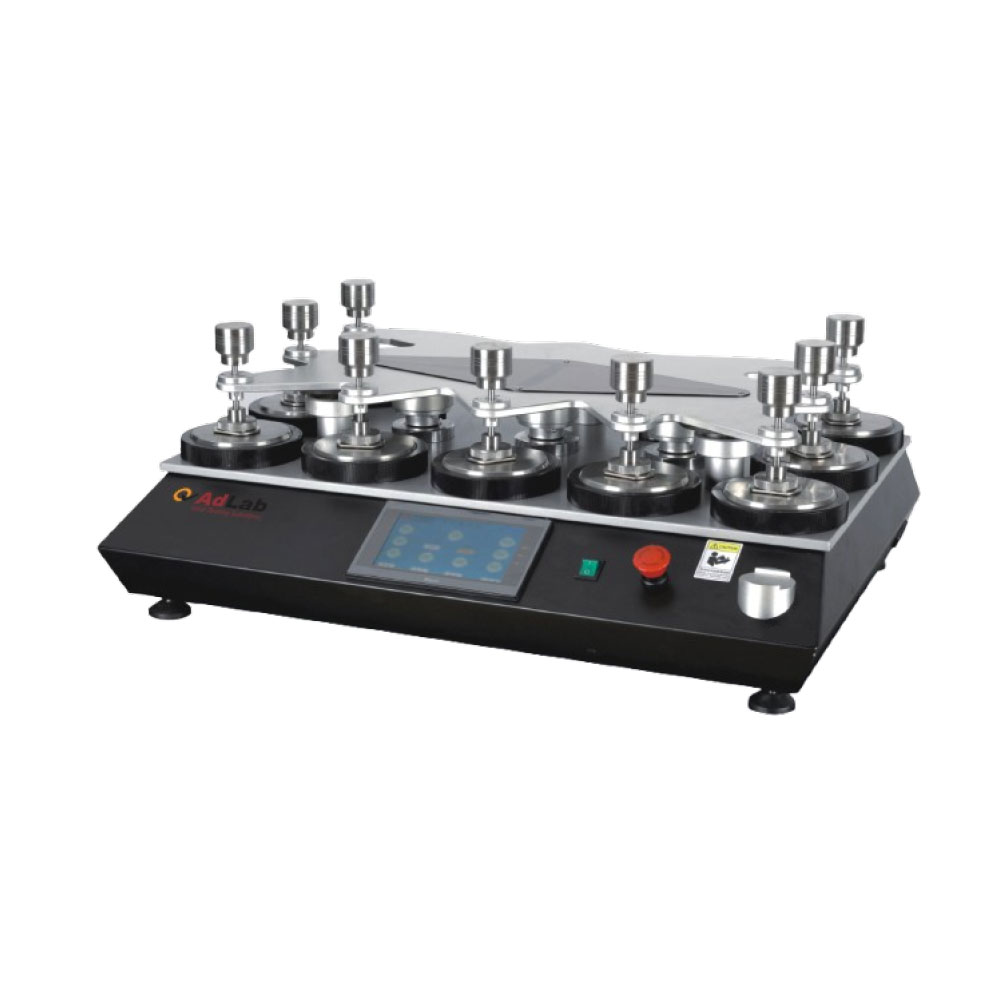

The Martindale Wear-Resistant Instrument tests the wear resistance, abrasion, and pilling of textiles and membrane materials using the Martindale method. It complies with standards like GB/T 21196, ASTM D4966, and ISO 12947, featuring a PLC-controlled system and a seven-inch color touch screen for precise testing.

Applications of the Martindale Wear-Resistant

The Martindale Wear-Resistant evaluates textiles and membrane materials for wear resistance and appearance changes like pilling. It supports standards such as ISO 12945.2 and JIS L1096, making it ideal for textile manufacturers ensuring durability and quality in clothing, furniture fabrics, and other materials.

Features of the Wear-Resistant

Versatile Testing: The Wear-Resistant Instrument offers three test modes and dual counting modes (adding/subtracting).
User-Friendly Design: Features a no-turning guide plate, eliminating the need to move samples during testing.
Advanced Control: Uses PLC modular control with a seven-inch color touch screen and bilingual menu.
High Capacity: Includes 9 workplaces for simultaneous testing of multiple samples.

Technical Specifications

Workplaces: 9
Counting Range: 0-999999 times
Maximum Travel: 60.5 ± 0.5 mm and 24 ± 0.5 mm
Pressure Mass: Clothing sample (397 ± 2g), furniture decoration (597 ± 2g), stainless steel discs (260 ± 1g)
Friction Diameter: Type A (198g, 3kPa, 28.8 – 0.084 mm), Type B (155g, 1.52N, 90 – 0.10 mm)
Relative Velocity: 50 ± 2 r/min (adjustable 20-70 r/min)
Sampling Hammer Quality: 2385 ± 10g
Dimensions: 885 × 600 × 290 mm, Weight: 81 kg
Power Supply: AC220V, 50Hz, 500W

Why Choose the Martindale Wear-Resistant Instrument?

The Martindale Wear-Resistant Instrument ensures accurate wear and pilling testing for textiles. Its compliance with global standards, user-friendly touch screen, and versatile test modes make it a top choice for manufacturers. With 9 workplaces and adjustable settings, it delivers reliable results for quality assurance.
