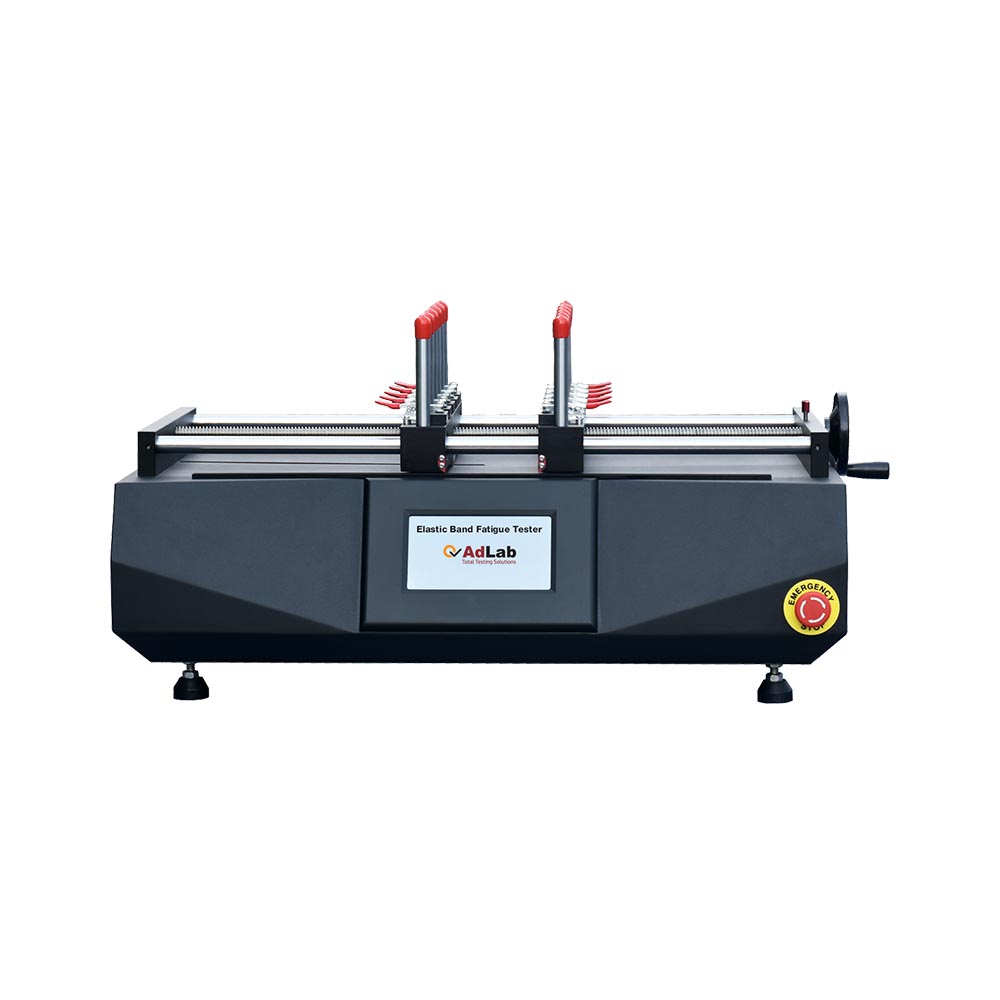

Elastic Band Fatigue Tester

The Elastic Band Fatigue Tester is an instrument used to test the tensile and bending resistance of elastic webbing or elastic materials.

Scope of application: Suitable for various elastic ribbons and materials

Features

• High-Precision Control: Equipped with a servo motor, planetary reducer, and high-speed linear slide for accurate control of stretch percentage, length, rate, and cycles.
• Programmable Operation: Original sample length and maximum stretching times can be freely set, supporting up to 9,999,999 cycles.
• Intuitive Touchscreen: 7-inch color screen controller allows easy programming, monitoring, and data management.
• Adjustable Stretch Parameters: Stretch percentage ranges from 0–100%, with speeds up to 40 cycles per minute.
• Durable Construction: Robust design ensures long-term reliability and stability during repeated testing.
• Wide Application: Suitable for testing various elastic ribbons, bands, and other elastic materials.
• Standards Compliance: Meets GB/T 37635, ensuring results are accurate and consistent with industry norms.

Application Standard

GB/T 37635

Technical Parameter

• Application: Tensile and bending resistance test for elastic webbing and materials
• Application Standard: GB/T 37635
• Controller: 7-inch color screen
• Sample Length Range: Maximum 260mm
• Stretch Percentage: 0-100%
• Stretching Speed: Up to 40 cycles/min
• Maximum Stretching Times: 9999999 times
• Power Supply: AC 220V 50Hz/60Hz 10A
• Dimensions: 870 (L) x 530 (W) x 430 (H) mm
• Weight: Approx. 68kg

Why Choose The Elastic Band Fatigue Tester?

Elastic Band Fatigue Tester, Precisely evaluate the tensile and bending resistance of elastic materials with programmable stretch percentage, speed, and cycles. Features a high-speed linear slide, servo motor, and intuitive touchscreen controller. Durable, accurate, and compliant with GB/T 37635, ensuring reliable and repeatable test results for quality control and R&D.
