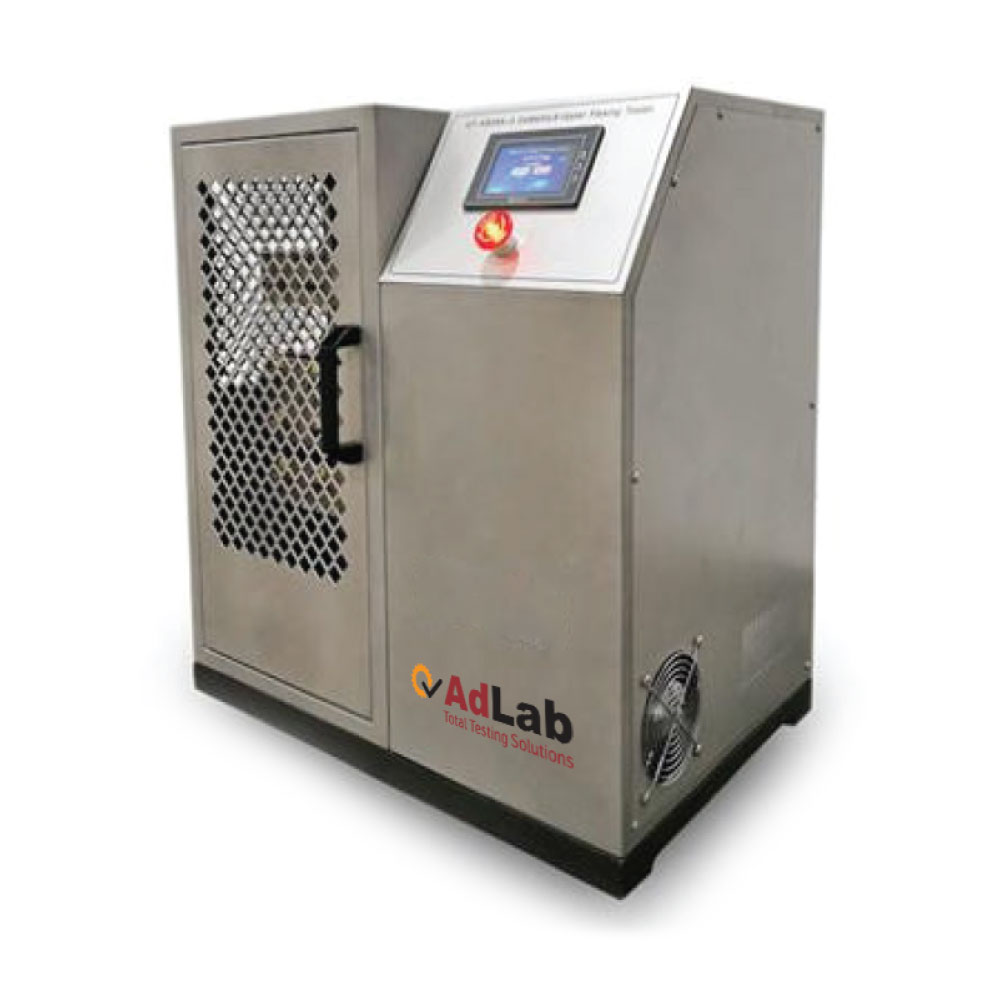

DeMattia & Upper Flexing Tester

DeMattia & Upper Flexing Tester

Application

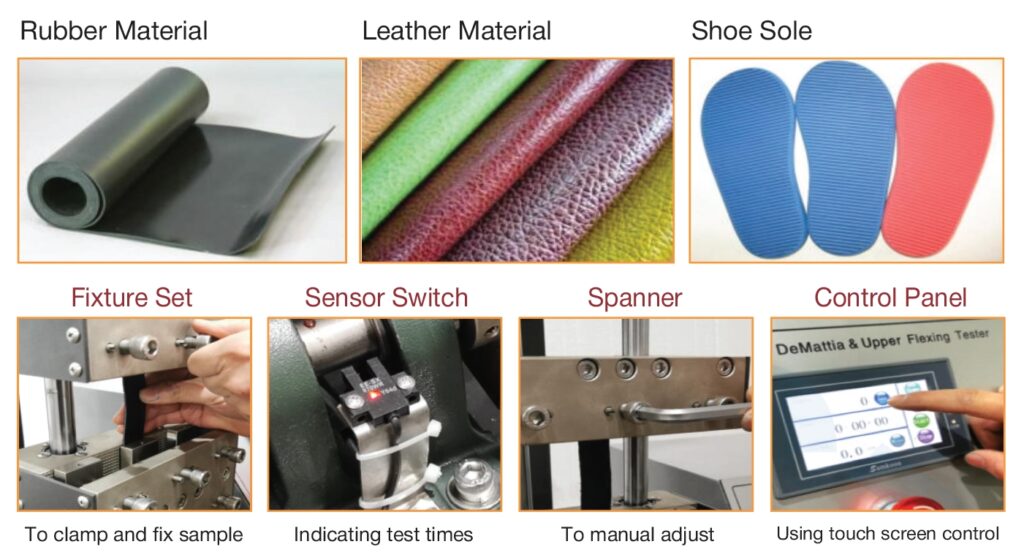

DeMattia & Upper Flexing Tester, To determine bending resistance of rubber, leather, synthetic leather, shoe sole and other materials. And inspect its flex cracking resistance, resistance to cracking and crack growth degree by repeatedly flexing in certain times and stroke.

Key Specification ADL-MFT06H

• Clamps Max. apart: 95mm 76mm 70mm
• Moving Clamp Stroke: 35mm 57mm 57mm
• Clamps Min. apart: 60mm 19mm 13mm
• Control Method: Touch screen control
• Test Speed: 300±10 cpm
• Counter Display: 0-999999
• Test Position: 6 pcs
• Power Supply: 1∮AC 220V 50/60HZ 3A
• Dimensions (LxWxH): 70 x 50 x 70cm
• Weight: 120kg Appx.

Key Specification ADL-MFT12H

• Clamps Max. apart: 95mm 76mm 70mm
• Moving Clamp Stroke: 35mm 57mm 57mm
• Clamps Min. apart: 60mm 19mm 13mm
• Control Method: Touch screen control
• Test Speed: 300±10 cpm
• Counter Display: 0-999999
• Test Position: 12 pcs
• Power Supply: 1∮AC 220V 50/60HZ 3A

Standards

• HG/T2873
• ASTM D813, D430, GB/T13934,13935, JIS-K6301, ISO132,133, BS-903-A10
• ISO 7854-Method A, BS 3424:Part9, GB/T 12586 Method A, EN ISO 2023, Annex E

Standard Accessories: Spanner: 1 set, Power Line: 1pc

Optional Accessories: Chisel Cutter(2.03mm): 1pc
