Overview

The Ceramic Crazing Resistance Tester is a specialized instrument designed to evaluate the crazing resistance of glazed ceramic tiles by heating water with an electric heater to generate steam. This Tester ensures precise testing for various ceramic applications.

Meeting the Standard

GB/T3810.11-2016–The methods of ceramic tilesPart 11:Determination of crazing resistance for glazed tiles
ISO10545-11：1994–(ISO 10545-11:1994,Ceramic tilesPart
1l:Determination of crazing resistance for glazed tiles,IDT)
EN13258–Materials and articlesin contact withfoodstuffs-Testmethods

Structural Characteristics

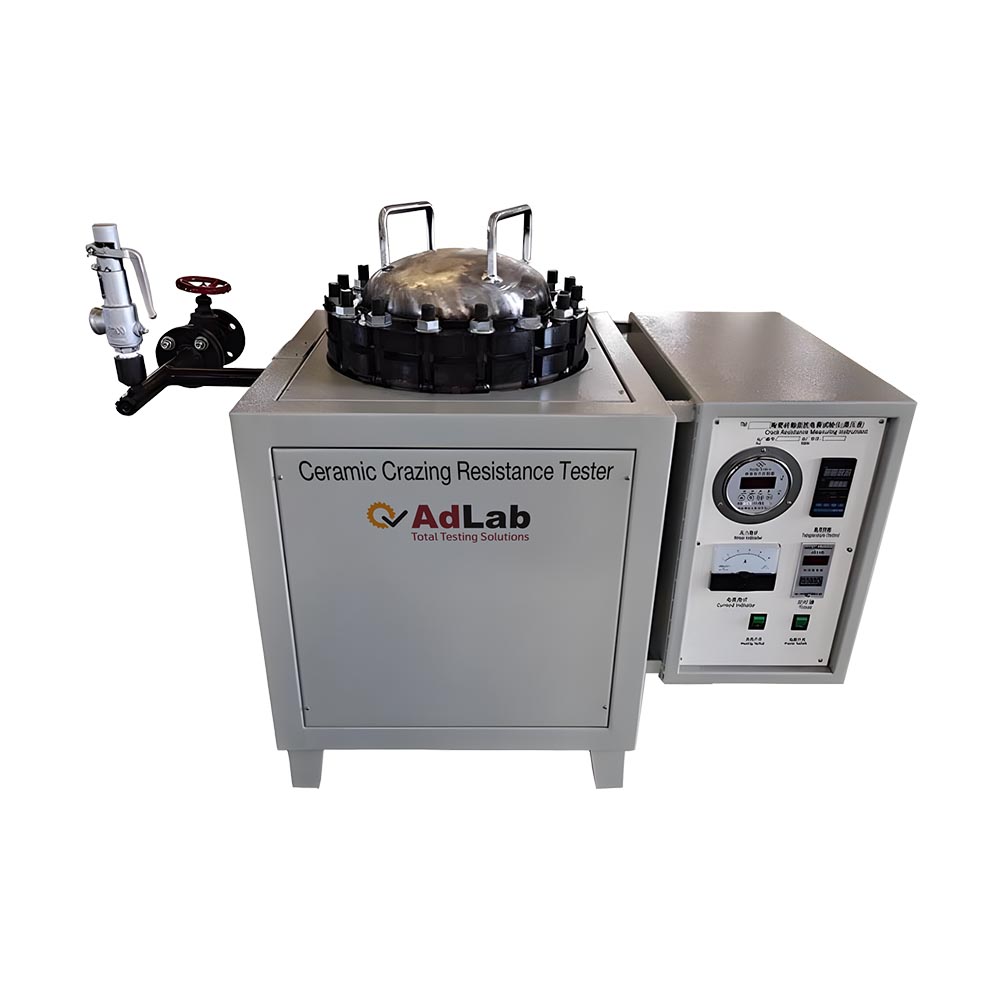

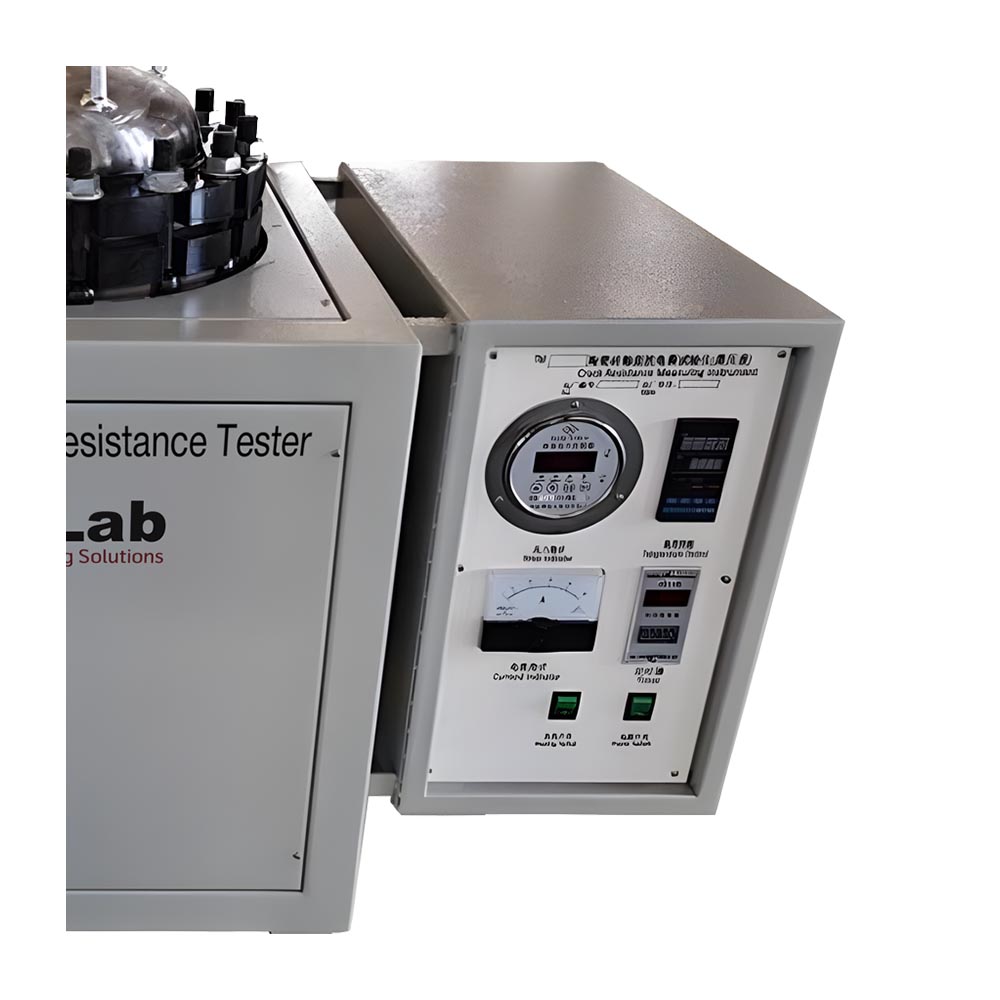

ADL-CCRT300 Ceramic Crazing Resistance is mainly composed of pressure tank, electric contact pressure gauge, safety valve, electric heater, electric control device and other components. It has the characteristics of compact structure, light weight, high pressure control precision, easy operation and reliable operation

Main Technical Parameters

Voltage – 380 volts,50 Hz;
Power – 4 kW;
Container volume – 300×300 mm;
Maximum pressure – 1.0mpa;
Pressure accuracy – ±20 kp-alpha;
No contact automatic constant pressure, digital set constant pressure time.
The use of quick-opening flange, more convenient and safe operation

Configurations

ADL-CCRT300 host – 1 set
Sample rack – 1pc
Pressure vessel inspection certificate – 1pc
Thermocouple – 1pc
Gasket – 1pc
Heater – 1pc

Why Choose the Tester?

The Ceramic Crazing Resistance Tester is vital for manufacturers and quality inspectors in the ceramics industry. Since crazing resistance is crucial for the durability of glazed ceramic tiles, this tester provides accurate results aligned with standards like ISO 10545-11:1994 and GB/T 3810.11-2016. For example, it tests tiles for food contact applications under EN 13258, ensuring compliance with safety standards. Its steam-based testing method and precise pressure control enhance testing reliability, while the compact design saves space.
