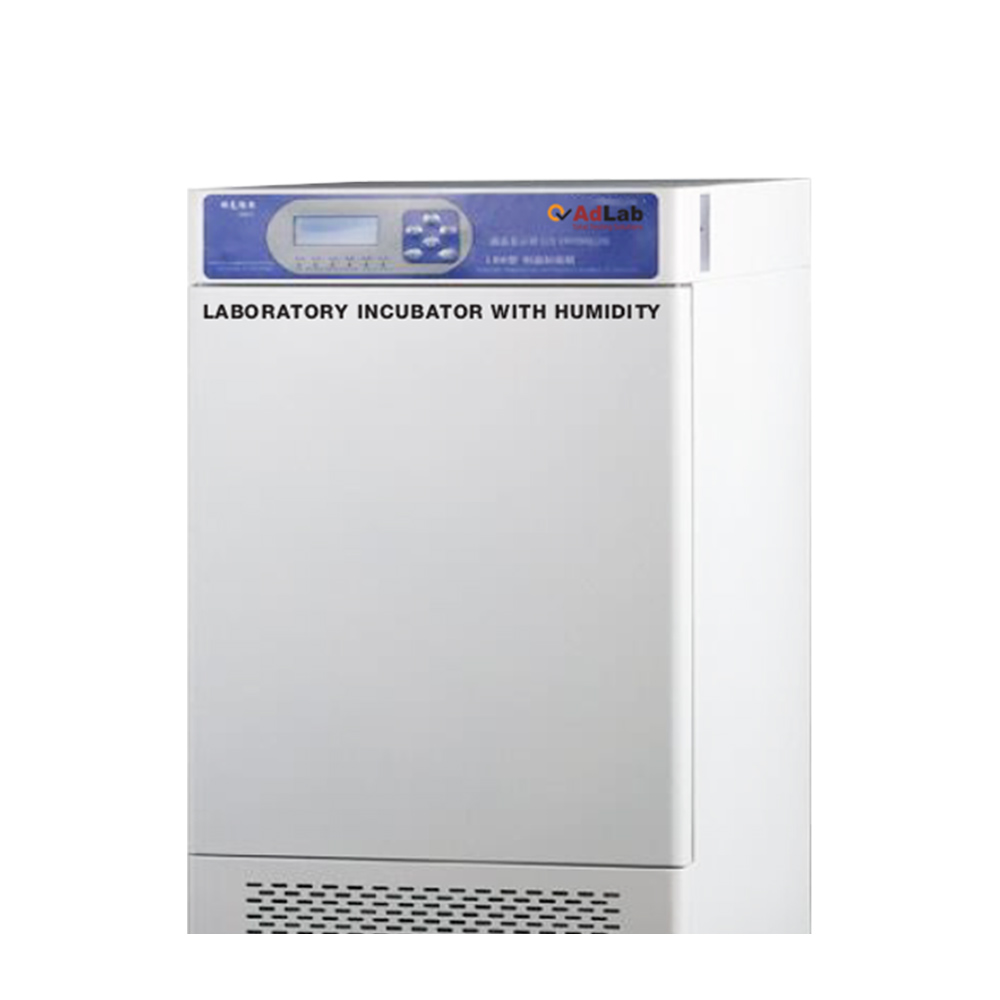

Laboratory Conditioning Chambers

Introduction to Laboratory Conditioning Chambers

The Laboratory Conditioning Chambers are designed for precise conditioning of samples prior to testing. These chambers provide controlled conditions ranging from 20% to 98% RH ±2% and 0°C to 94°C ±0.5°C, making them ideal for scientific research and universities. They are widely used in fields like environmental protection, sanitation, epidemic prevention, drug inspection, agriculture, livestock, aquatic products, bioengineering, water analysis, and industrial product performance testing.

Applications of the Conditioning Chambers

The Laboratory Conditioning Chambers serve a variety of industries and research fields. For example, they are essential for environmental protection studies, sanitation and epidemic prevention, drug inspection, and agriculture. Additionally, they support bioengineering, water analysis, and industrial product performance testing, ensuring samples are conditioned accurately before experiments.

• Precise Control System: The Laboratory Conditioning Chambers feature upgraded LCD screens with programmable microcomputer intelligent PID control technology. This ensures accurate temperature and humidity control, with timing and over-temperature alarm functions for reliable operation.
• Balanced Refrigeration: These chambers use balanced refrigeration to maintain small temperature fluctuations, integrating automatic defrosting and multi-layer safety protection for long-term use. They also include internationally renowned brand compressors with delay protection for smooth performance.
• Eco-Friendly Design: With a green environmental protection concept, the chambers use fluorine-free R134 refrigerant, making the system energy-efficient and environmentally friendly.
• Uniform Airflow: A reasonable air duct circulation system ensures uniform temperature and humidity in the working room, while the mirror stainless steel interior resists corrosion, with adjustable shelf spacing and quantity.
• User-Friendly Features: The Laboratory Conditioning Chambers include a built-in large-capacity intelligent humidification system with an automatic water replenishment tank, a double-door design with a light device (for humidity chambers), and a UV lamp function for sterility (MJ series). An internal socket, touch-type parameter setting buttons, and optional accessories like a portable printer, RS232 port, test hole, and Lamp D65 are also available.

Technical Specifications

The Laboratory Conditioning Chambers are available in multiple models with the following specifications:

• Model ADL-LHC100S:
  • Temperature Range: 10°C to 90°C
  • Temperature: 21°C ±1 (For lab sample conditioning)
  • Temperature Accuracy: ±0.5°C
  • Timing Range: 0–999 min
  • Humidity Fluctuation: ±1%
  • Humidity: 20% ~ 98% ±2 (For lab sample conditioning)
  • Voltage: 220V
  • Power: 0.4 kW
  • Inner Size (H×W×D): 580×450×380/100L mm
  • Overall Dimensions (H×W×D): 1100×500×620 mm
  • Packing Size (H×W×D): 1220×670×700 mm
  • Net Weight: 100 kg
  • Shipping Weight: 120 kg
• Model ADL-LHC150S:
  • Temperature Range: 10°C to 90°C
  • Temperature: 21°C ±1 (For lab sample conditioning)
  • Temperature Accuracy: ±0.5°C
  • Timing Range: 0–999 min
  • Humidity Fluctuation: ±1%
  • Humidity: 20% ~ 98% ±2 (For lab sample conditioning)
  • Voltage: 220V
  • Power: 0.6 kW
  • Inner Size (H×W×D): 800×500×380/150L mm
  • Overall Dimensions (H×W×D): 1350×640×660 mm
  • Packing Size (H×W×D): 1470×720×740 mm
  • Net Weight: 110 kg
  • Shipping Weight: 140 kg
• Model ADL-LHC250S:
  • Temperature Range: 10°C to 90°C
  • Temperature: 21°C ±1 (For lab sample conditioning)
  • Temperature Accuracy: ±0.5°C
  • Timing Range: 0–999 min
  • Humidity Fluctuation: ±1%
  • Humidity: 20% ~ 98% ±2 (For lab sample conditioning)
  • Voltage: 220V
  • Power: 0.8 kW
  • Inner Size (H×W×D): 1000×550×450/250L mm
  • Overall Dimensions (H×W×D): 1550×690×660 mm
  • Packing Size (H×W×D): 1670×770×740 mm
  • Net Weight: 140 kg
  • Shipping Weight: 165 kg

Why Choose Laboratory Conditioning Chambers?

The Laboratory Conditioning Chambers offer precision and reliability for conditioning samples in demanding research environments. Because of their advanced PID control technology and uniform airflow, they ensure accurate temperature and humidity control for various testing needs. Furthermore, their eco-friendly design and user-friendly features make them a top choice for scientific research and industrial applications. Ready to enhance your sample conditioning process? For more information, please Contact with AdLab.
