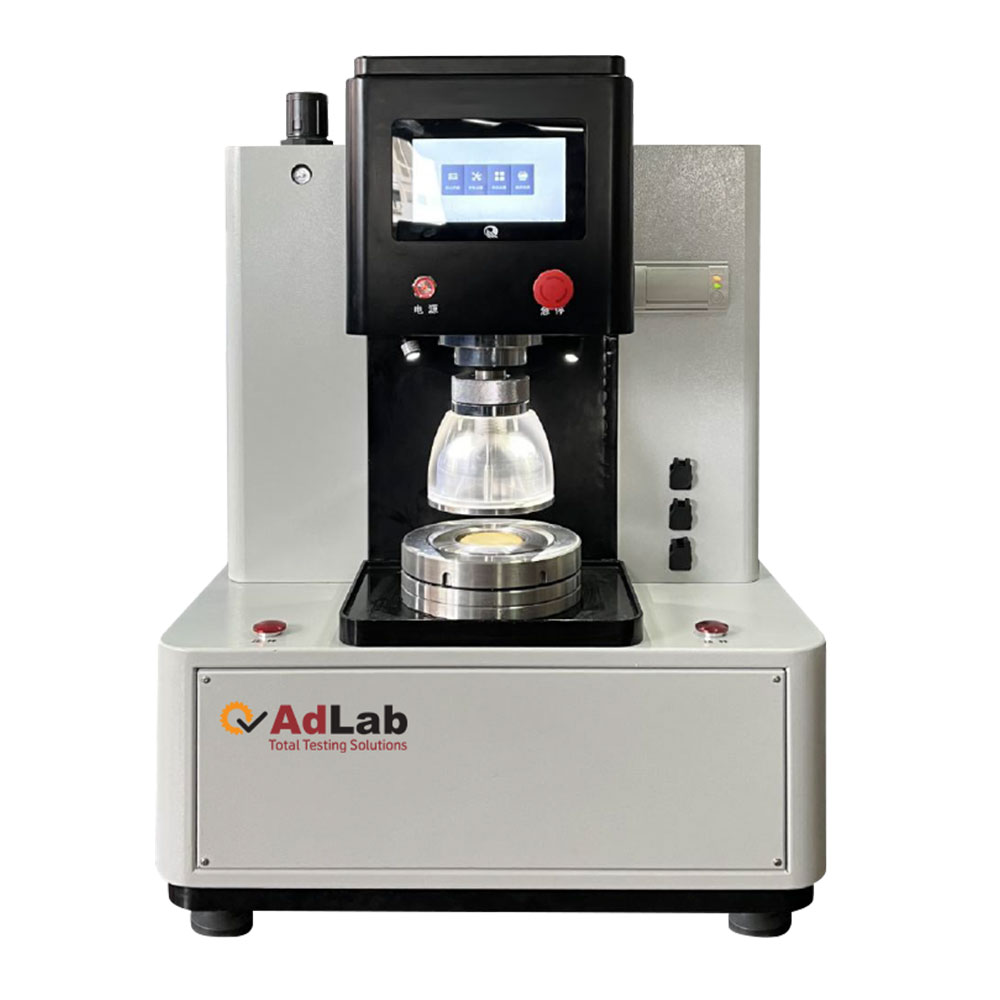

Hydraulic Bursting Strength Tester
Availability: In Stock
Brand: AdLab
Model: ADL-HBT25
Origin: Europe
- Instrument overload protection function
- Convenient and fast printing function
Introduction
The Hydraulic Bursting Strength Tester measures the expansion force and degree of textiles, non-woven fabrics, and leather under multi-directional force using the hydraulic elastic diaphragm method. It complies with standards like GB/T7742.1 and ISO13938.1-04, featuring an HD color touch screen and laser displacement sensor for precise testing.
Applications of the Hydraulic Bursting
The Hydraulic Bursting Strength Tester evaluates the bursting strength of textiles, non-woven fabrics, and leather in warp, weft, and all directions. It meets standards such as ASTM D3786 and JIS1018.6.17, making it ideal for manufacturers ensuring material durability and quality in diverse applications like clothing and upholstery.
Features of the Bursting Strength Tester
- Advanced Interface: The Hydraulic Bursting Tester features an HD color touch screen for easy operation.
- Precise Measurement: Uses a laser displacement sensor to track expansion changes accurately.

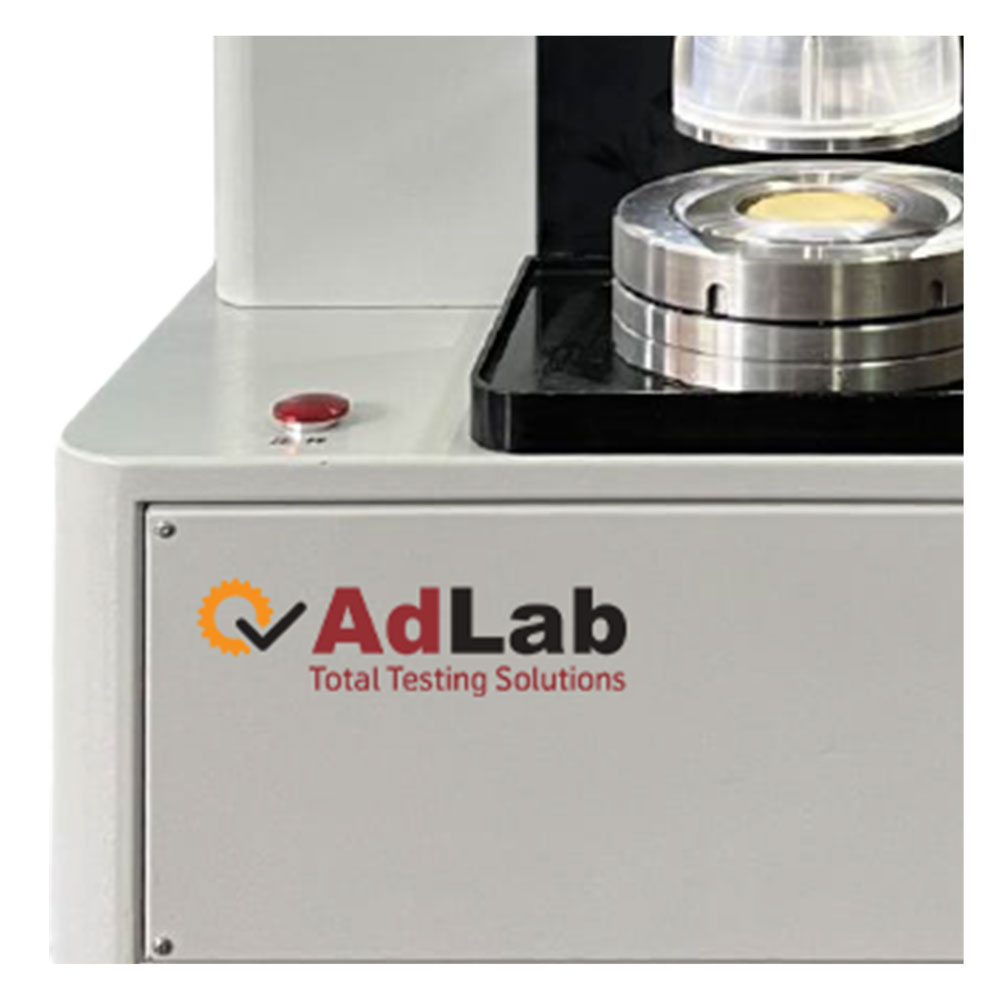

- Durable Design: Includes a corrosion-resistant test platen and a high-transmittance POM protective cover.
- Safety Features: Equipped with an overload protection function and a waste liquid collection device.
Technical Specifications
- Measuring Range: 0.001-2 MPa (YG(B)032EC-2); 0.01-10 MPa (YG(B)032EC-10)
- Elastic Diaphragm Size: Outer diameter φ80mm, φ140mm; thickness ≤2mm
- Test Area: 7.3 cm² (φ30.5 ± 0.05mm), 50 cm² (φ79.8 ± 0.05mm); customizable to 10 cm², 100 cm²
- Maximum Expansion: 70 ± 0.5mm
- Pressurization Rate: 100-500 ml/min (digital setting)
- Hydraulic Fluid: 85% glycerin (glycerol) or non-corrosive fluids
- Working Air Source: ≥0.5 MPa
- Power Supply: AC220V ±10%, 50Hz
- Dimensions: 690 × 570 × 950 mm, Weight: 220 kg
Standard Accessories
| Name and specification | Qty | Note |
| Main machine | 1 | |
| Main machine | 1 | |
| Power cable | 2 | 50 cm², 7.3 cm² |
| Elastic diaphragm | 4 | φ140mm |
| Wrench | 1 | |
| Glycerin | 5 | |
| Air compressor | 1 | φ48mm Air tube |
| Fuse | 2 | 5A |
| Software | 1 | |
| USB connecting line | 1 | |
| Bottom feet | 4 |
Why Choose the Hydraulic Bursting Strength Tester?
The Hydraulic Bursting Tester ensures accurate bursting strength testing for textiles and leather. Its compliance with global standards, advanced features like a laser sensor, and user-friendly interface make it a reliable choice. With safety features and customizable test areas, it supports quality assurance in textile manufacturing.
