Application Function

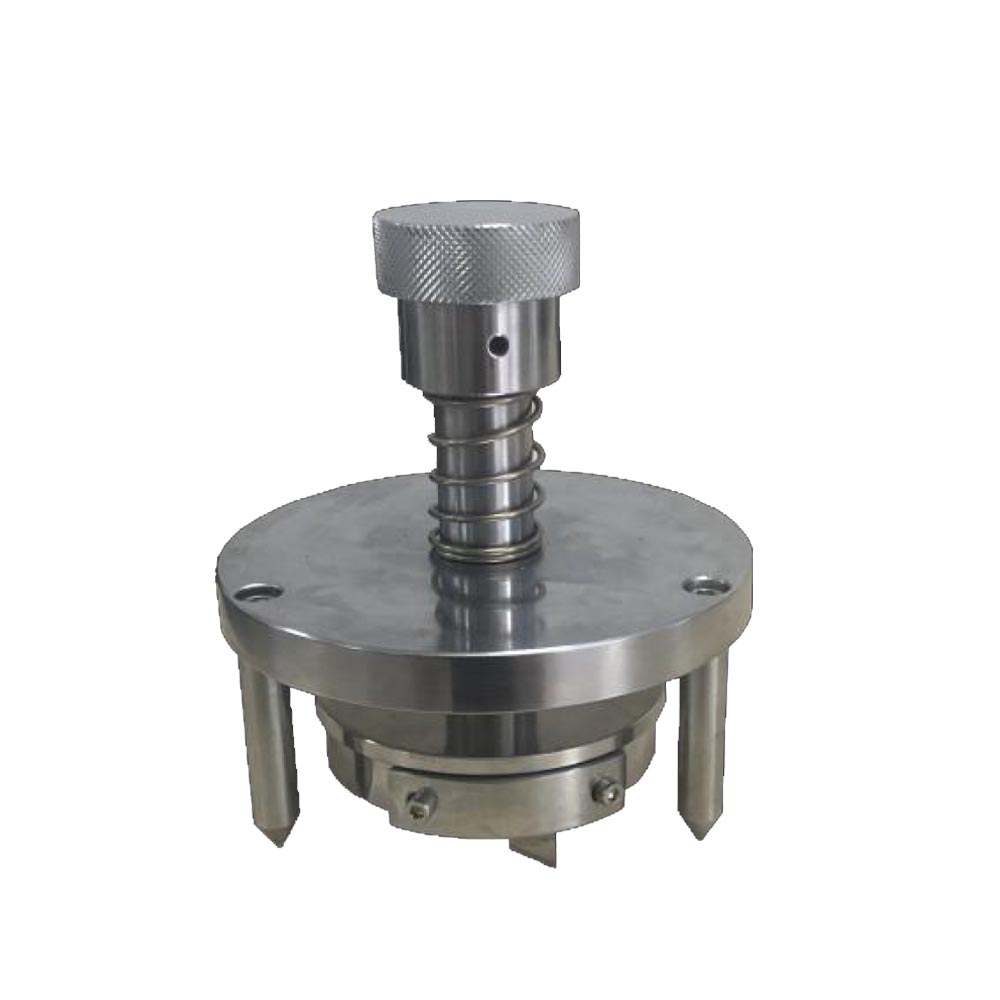

FCT sample cutter is a special sampling device necessary for corrugated board flat pressing strength test (FCT). It can quickly and accurately cut the sample of the specified area. It is an ideal auxiliary device for corrugated board and carton manufacturing enterprises, scientific research and quality supervision and inspection departments.

Standards

GB/T 6548 GB/T 6544

Product Features

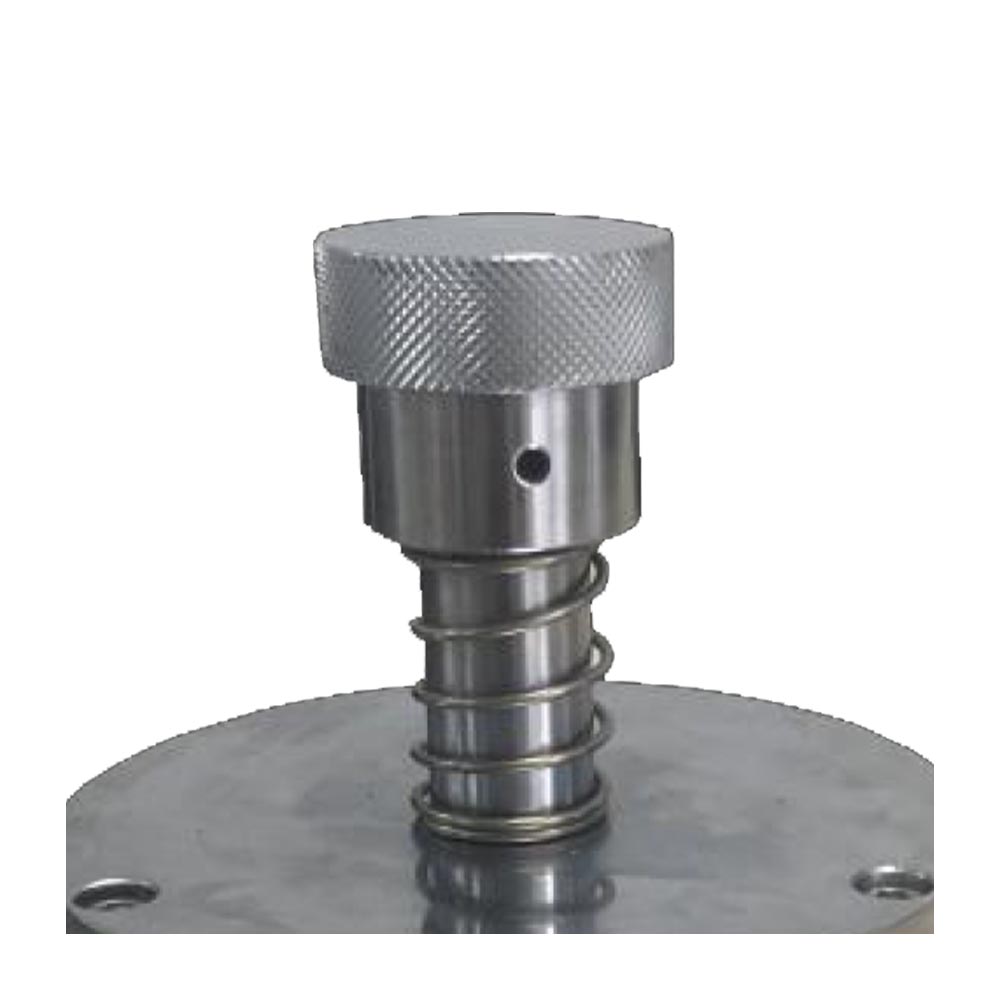

Active pin

Wide range of adaptation

Key Technical Parameters

Standards: GB/T 6548, GB/T 6544
Sample Size: 64.5cm² (φ90.6±0.5mm)
Sample Maximum Thickness: 15mm
Dimension: 150 x 150 x 170mm
Net Weight: ≤3kg

Why Choose the FCT Cutter?

The FCT Sample Cutter is a precision tool designed for preparing samples for corrugated board flat crush tests (FCT), ensuring quick and accurate cutting of the specified area. Compliant with GB/T 6548 and GB/T 6544 standards, it delivers consistent sample sizes of 64.5cm² (φ90.6±0.5mm) and accommodates materials up to 15mm thick. Featuring an active pin design, it offers wide adaptability across various corrugated board types, making it ideal for carton manufacturing, scientific research, and quality inspection departments. With its compact dimensions of 150 × 150 × 170mm, lightweight build of ≤3kg, and ease of operation, the FCT Cutter is a reliable and efficient auxiliary device for ensuring accurate and standardized sample preparation in packaging quality control.
