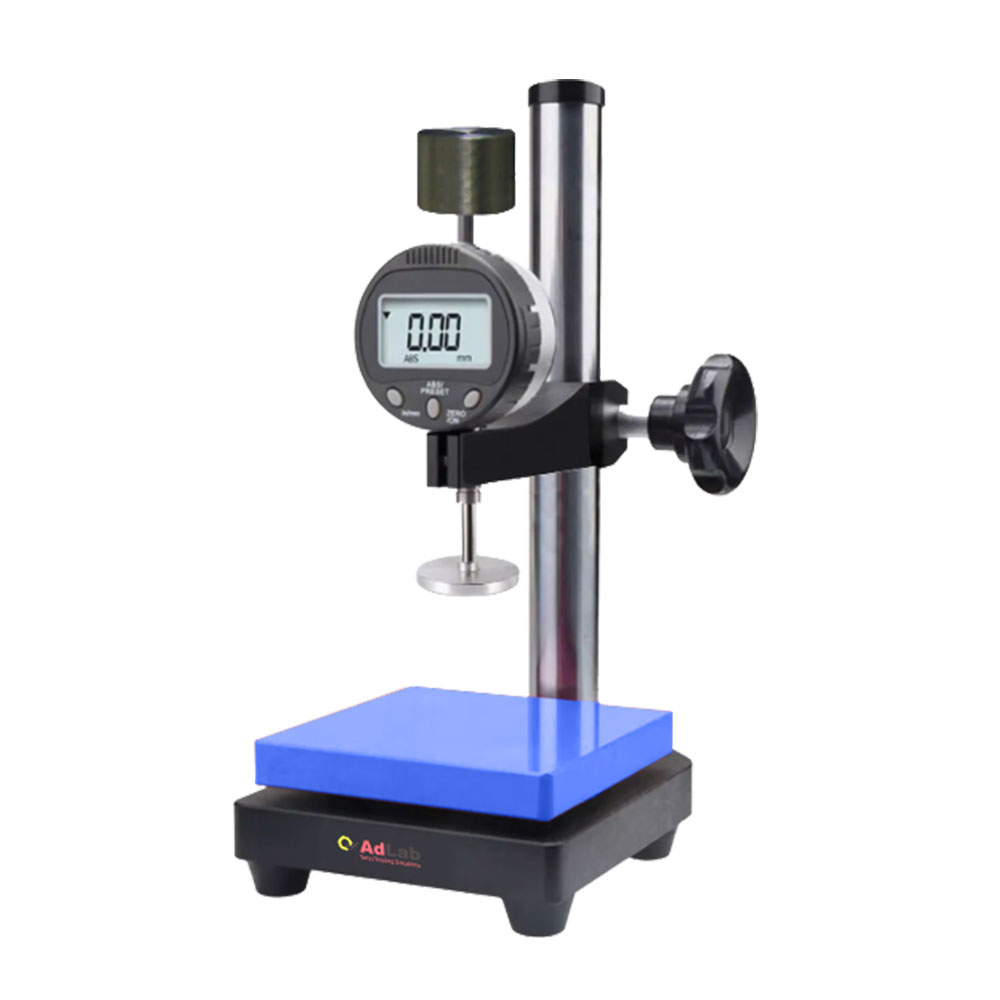

Fabrics Thickness Meter, affordable and accurate thickness gauge for soft materials with a gauging balance that applies minimal load to the specimen through a 1.129-inch (28.7mm) diameter presser foot. Thickness gauges have ranges up to 1/2 inch (13mm) or 1 inch (25mm) with a resolution of 0.001 inch (0.01mm). Comes with 1 load weight to provide 0.6psi (4.14KPA). Other configurations are also available on request

Key Features of the Thickness Meter

Accurate Measurement: The Fabrics Thickness Meter offers a 0.01-12.5mm range with 0.01mm resolution, using a 28.7mm presser foot and 0.6psi load for precision.
Lightweight Design: Features a compact build with a 0-100kg weight capacity and manual control, suitable for textile labs and production floors.

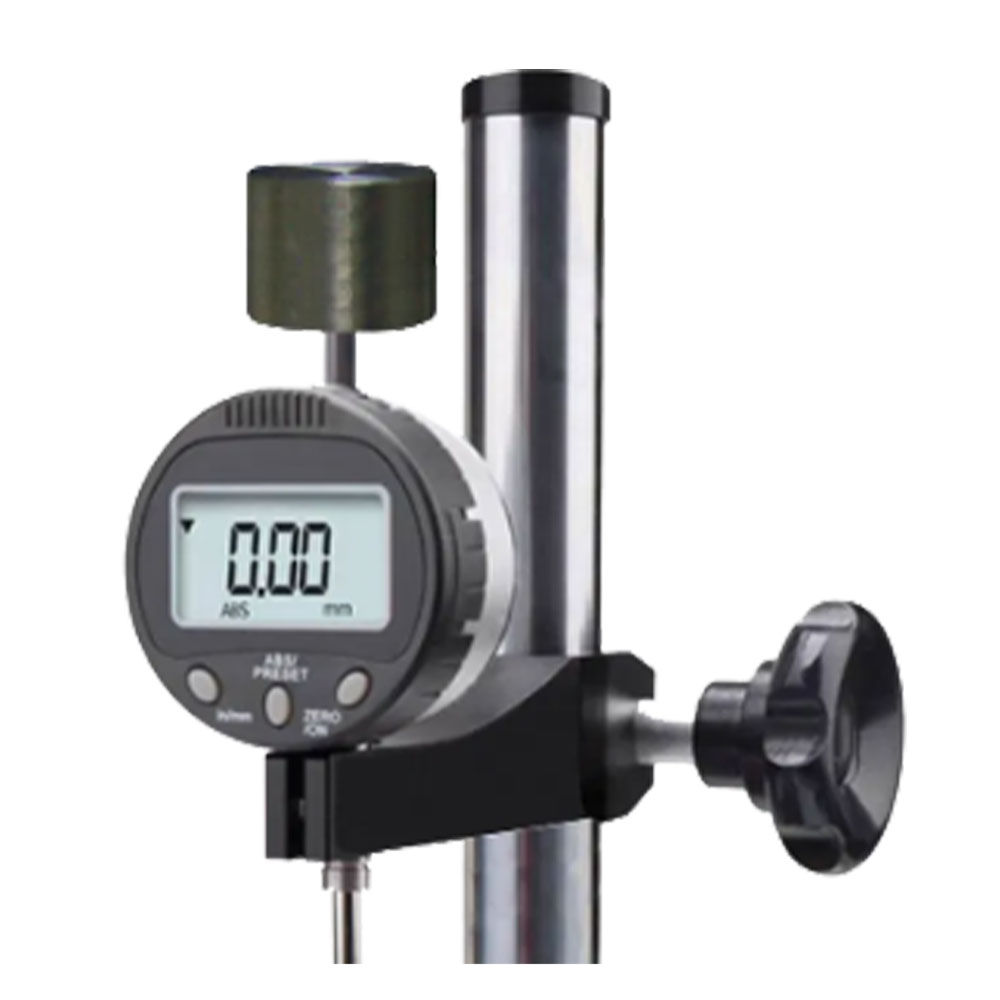

User-Friendly Operation: Includes a digital display and a 1-inch (25mm) gauge option, with customizable load weights available on request.
Standard Compliance: Meets ASTM D1777 for reliable thickness testing of soft materials like fabrics.

Basic Information

Standard: ASTM D1777
Application: Thickness measurement of soft materials in the textile industry
Mass Scope of Workpiece: <900kg
Max Capacity: 10mm (up to 12.5mm range)
Load Way: Mechanical Load
Display Type: Digital
Weight: 0-100kg
Max Diameter of Workpiece: <500mm
Type: Material Testing Machine
Accuracy: 0.01mm
Control: Manual Control
Power Source: AC 220V

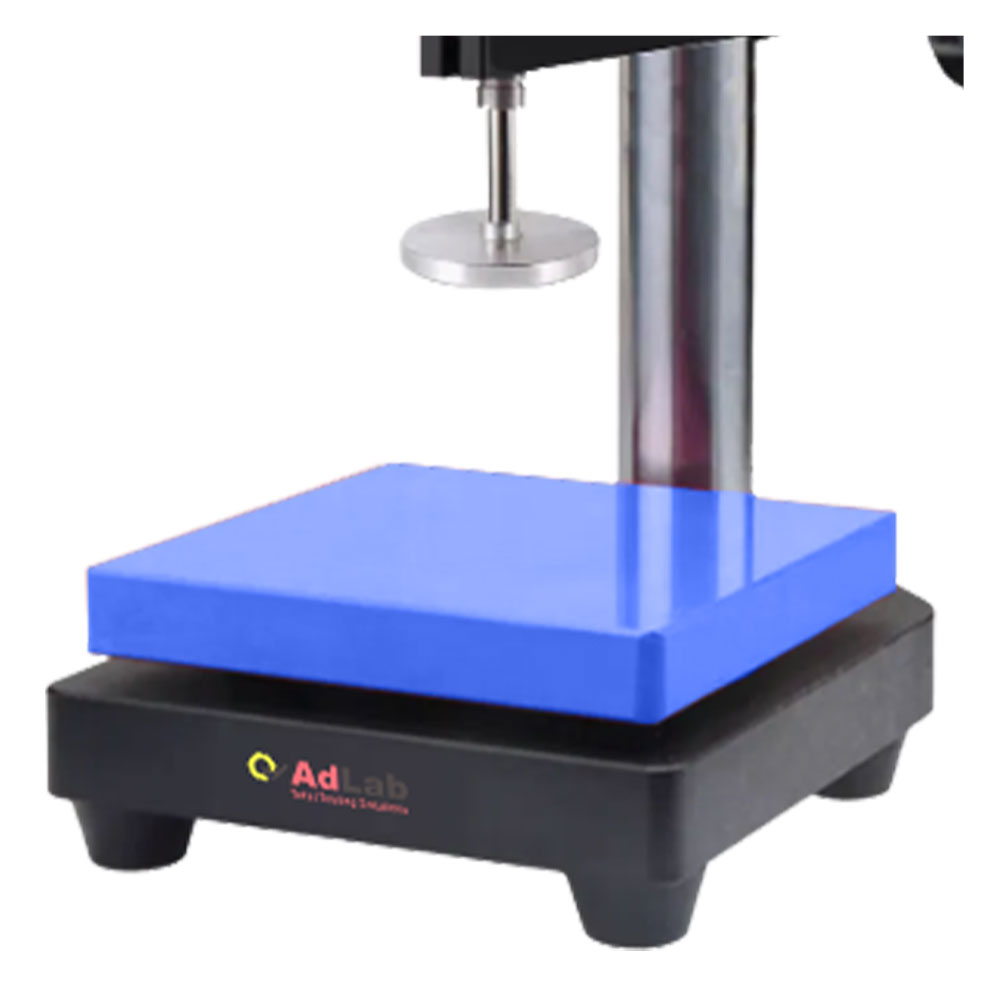

Presser Foot: 28.7mm diameter, 0.6psi (4.14kPa) load

Standard

ASTM D1777

Product Parameters

Thickness test range is 0.01-12.5mm

Why Choose the Fabrics Thickness Meter?

The Fabrics Thickness Meter ensures precise fabric thickness measurement with its high-resolution gauge and minimal load design. Its compliance with ASTM D1777 and affordability make it a top choice for textile testing.
