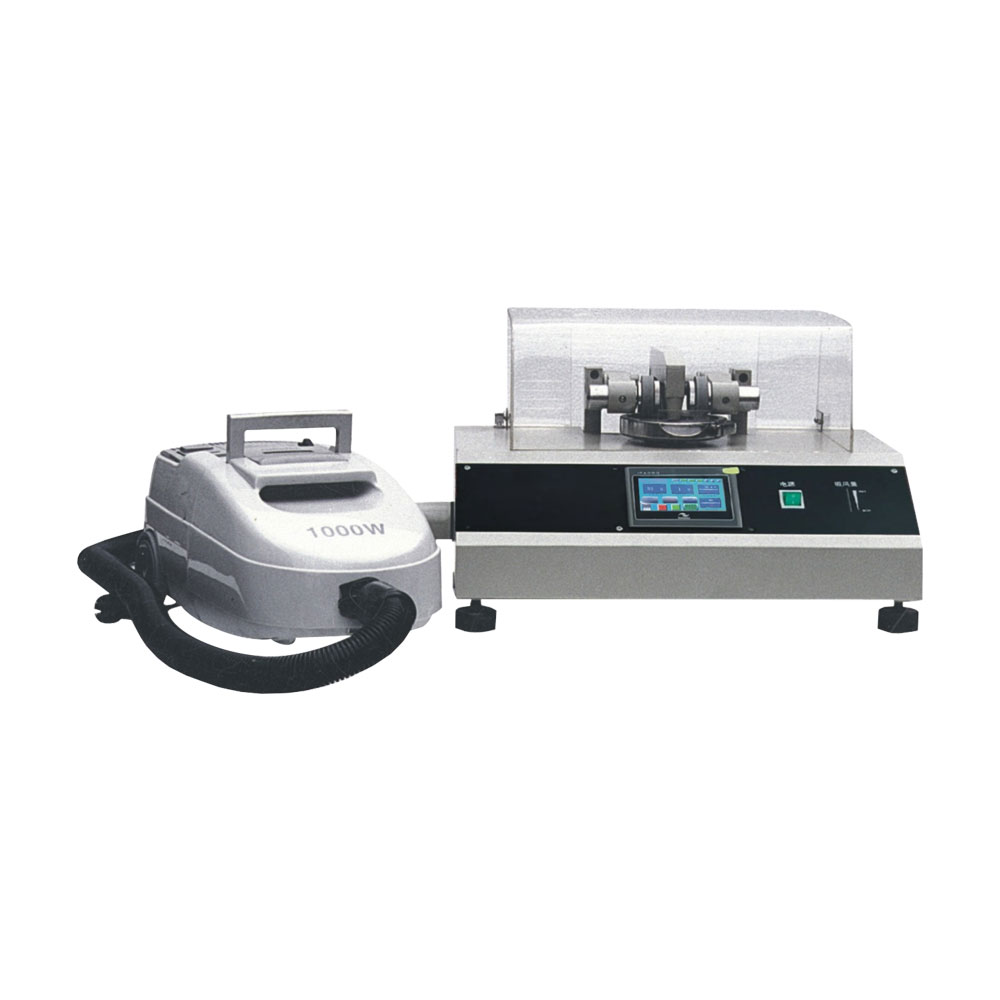

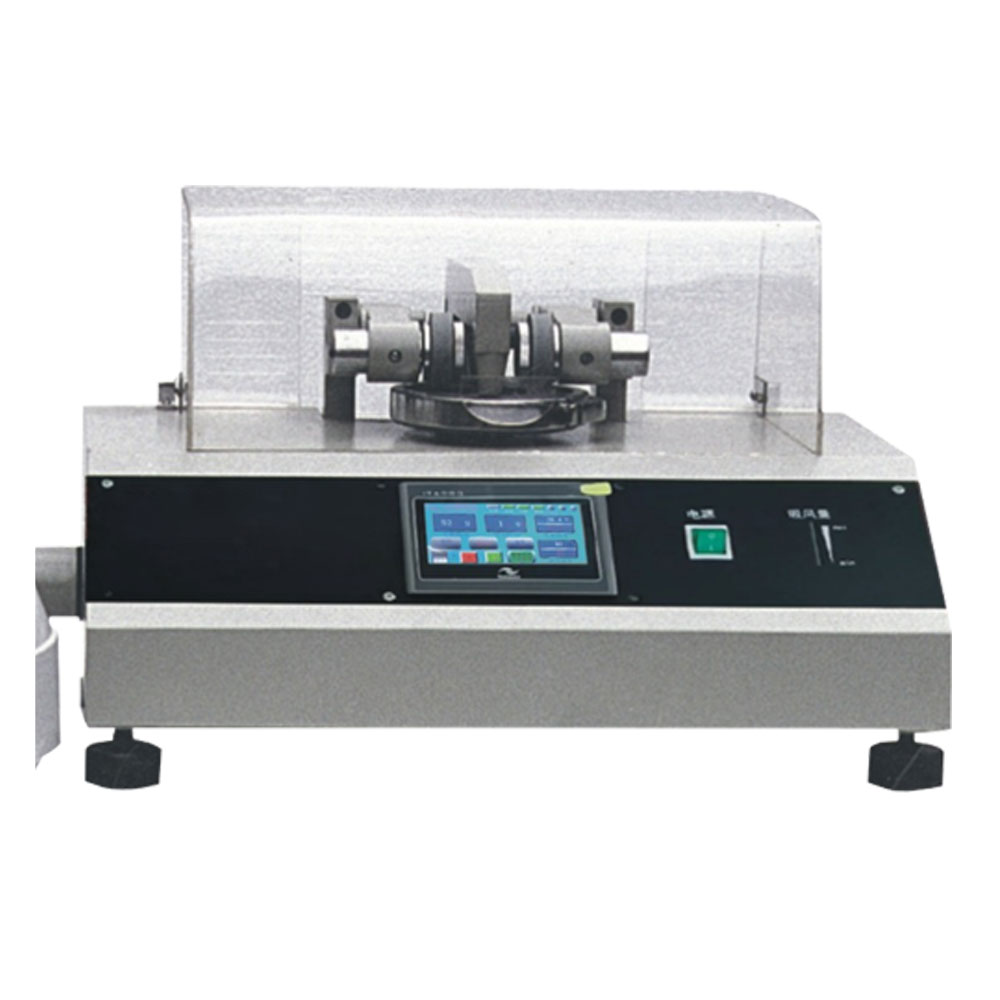

The Fabric Abrasion Machine tests wear resistance of textiles and leather per ISO 5470-1. The Machine is perfect for textile, leather, and carpet industries, evaluating abrasion resistance of materials like rubber and plastic sheets per ASTM D3884.

Scope

Fabric Abrasion Machine for wear resistance test of various textiles, leather, carpet, rubber, plastic sheets and other materials.

Standards

ISO 5470-1 ASTM D3884, DIN53863.2

Technical Parameter

Scope: Wear resistance test for textiles, leather, carpet, rubber, plastic sheets
Standards: ISO 5470-1, ASTM D3884, DIN53863.2
Working Disk Diameter: 115mm
Grinding Wheel Dimensions: 50mm diameter, 13mm thick
Counting Range: 0–99999 times
Working Disk Speed: 20–99 r/min
Pressure: 250cN pressure sleeve weight
Weights: 750cN, 250cN, 125cN
Power Source: AC 220V±10%, 50Hz
Size: 520 x 370 x 360mm
Weight: 45kg

Why Choose the Machine?

The Fabric Abrasion Machine provides accurate, reliable, and standardized wear-resistance testing for textiles, leather, carpets, rubber, and plastic sheets. Designed per ISO 5470-1, ASTM D3884, and DIN 53863.2 standards, it delivers consistent results across multiple materials. With adjustable disk speed, pressure, and counting range, it offers versatile testing for various applications. Its compact design, durable construction, and easy operation make it ideal for quality control, R&D, and industrial laboratories, ensuring that materials meet performance requirements and helping manufacturers improve product durability efficiently.
