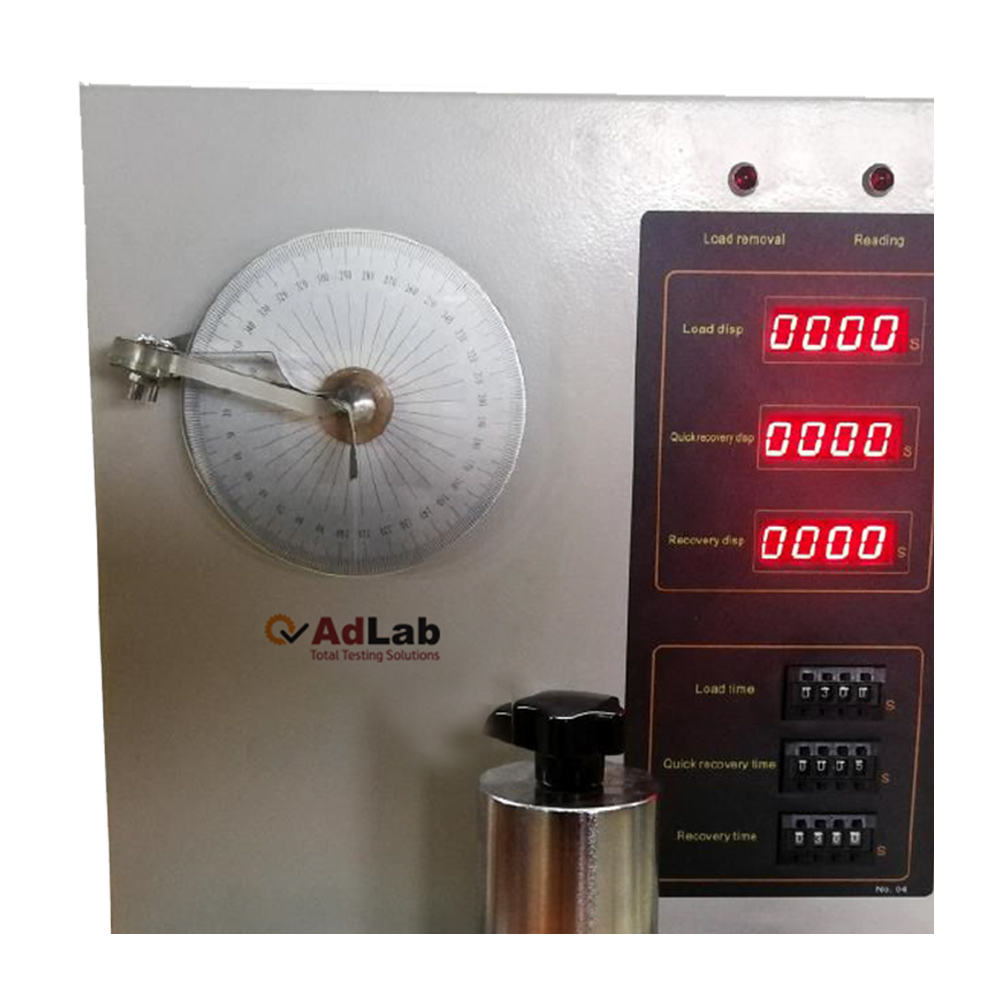

Crease Recovery Tester is used to determine fabric recovery ability after being creased an indicated with crease horizontal method; this tester is suitable for fabrics with various kinds of thickness, and can get fast and slow crease recovery index under room environment.

Features

• Adopts horizontal method to measure crease recovery ability of fabric, satisfy requirements of international test standards;
• Can preset load time, fast recovery and slow recovery time, and those three time are displayed on LED panel;
• Test process can be carried on automatically, and with alarm to remind operator.

Related Standards:

Note: this tester can conform to but not limit to the standards above, for more standards conformance, please contact us.

Key Specification

• Testing method – Horizontal method 1
• Working position – Fast recovery: 15s±1s
  Slow recovery: 5min±5s
• Measuring mode –
• Load time – 5min±5s
• Dimension of testing specimen – 40×15mm
• Effective area of testing specimen – 18×15mm
• Pressure load – 10N±0.05N
• Measuring angle range – 0~360°
• Measuring angle accuracy – ±1°
• Location accuracy – 1mm
• Power supply –  AC220V, 50Hz
• Dimensions – 280×300×190mm (L×W×H)
• Net weight – 7kg

Why Choose the Crease Recovery Tester?

The Crease Recovery Tester is vital for textile manufacturers and labs assessing fabric resilience after creasing. Since recovery ability impacts garment appearance and durability, this tester measures fast and slow indices per standards like ISO 2313, suitable for various fabric thicknesses. For example, it evaluates how well a fabric recovers under a 10N load, ensuring quality in apparel production. Its compact 7 kg design and automated features enhance usability, while the LED display simplifies operation. Compliant with industry benchmarks, it supports fabric development. For more details or to request a demo, contact our team today.
