Color Matching Cabinet TruVision

Color Matching Cabinet TruVision. Configured Light source: D65/A/D50/UV/U30/TL84/U35/CWF/L40-8/L35-8/L30-8/L31-8

D50 (LED) Power 15WFeatures:

1. Color rendering index Ra≥95;
2. CCT2300±5000K;
3. No flicker. Dimmable
4. 60%+ is more efficient than fluorescent tubes and no mercury;
5. The PC tube is not easy to be damage during transportation;

A (LED) Power 15WFeatures:

1. Color rendering index Ra≥95;
2. CCT2800±200K;
3. No flicker. Dimmable
4. 60%+ is more efficient than fluorescent tubes and no mercury;
5. The PC tube is not easy to be damage during transportation;

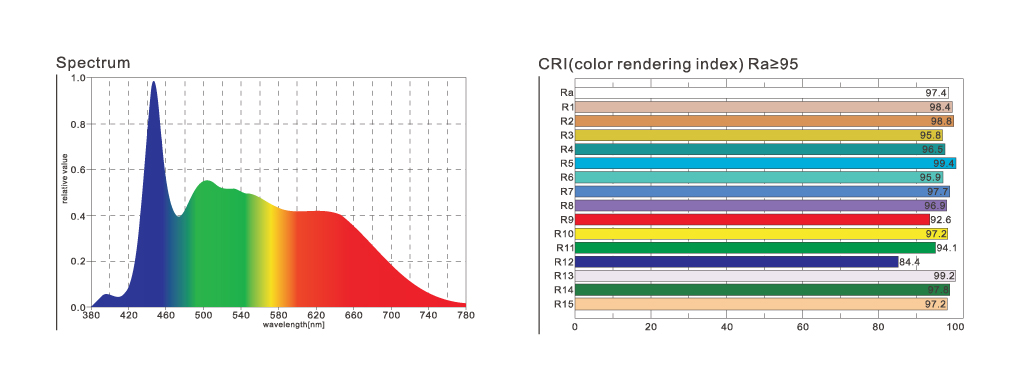

D65 (LED) Power 15WFeatures:

1. Color rendering index Ra≥95;
2. CCT6500±200K;
3. No flicker. Dimmable
4. 60%+ is more efficient than fluorescent tubes and no mercury;
5. The PC tube is not easy to be damage during transportation;

U30 (fluorescent lamp) Power 25W / LED L30-8 / L31-9 (3100K)Features:

1. Color rendering index Ra≥80;
2. CCT3000±200K;
3. No flicker. Dimmable

TL84 (fluorescent lamp) Power 30W / LED L40-8 (4000K)

Features:

1. Color rendering index Ra≥80;
2. CCT4000±200K;
3. No flicker. Dimmable

U35 (fluorescent lamp) Power 25W / LED L35-8 (3500K)Features:

1. Color rendering index Ra≥80;
2. CCT3500±200K;
3. No flicker. Dimmable

Optional Light Source: H, D75, CWF, TL83

H (LED) Power 15WFeatures:

1. Color rendering index Ra≥95;
2. CCT2300±100K;
3. No flicker. Dimmable
4. 60%+ is more efficient than fluorescent tubes and no mercury;
5. The PC tube is not easy to be damage during transportation;

D75 (LED) Power 15WFeatures:

1. Color rendering index Ra≥95;
2. CCT7500±200K;
3. No flicker. Dimmable
4. 60%+ is more efficient than fluorescent tubes and no mercury;
5. The PC tube is not easy to be damage during transportation;

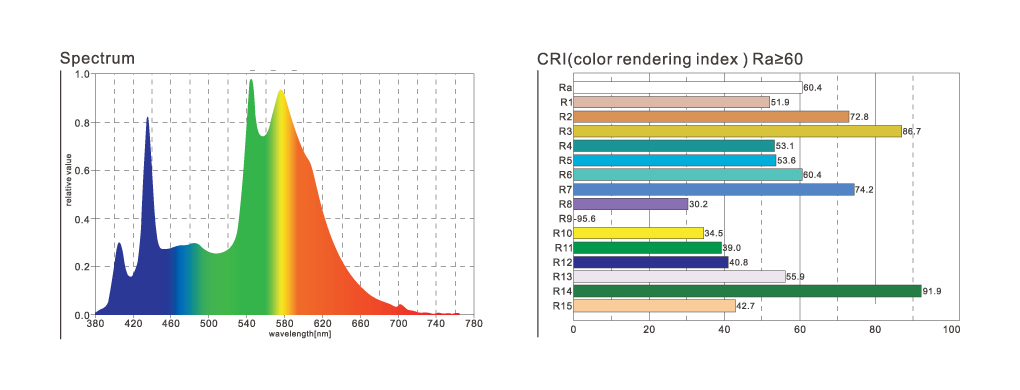

CWF (fluorescent lamp) Power 30WFeatures:

1. Color rendering index Ra≥60;
2. CCT4150±200K;
3. No flicker. Dimmable

TL83 (fluorescent lamp) Power 30WFeatures:

1. Color rendering index Ra≥80;
2. CCT3000±200K;
3. No flicker. Dimmable

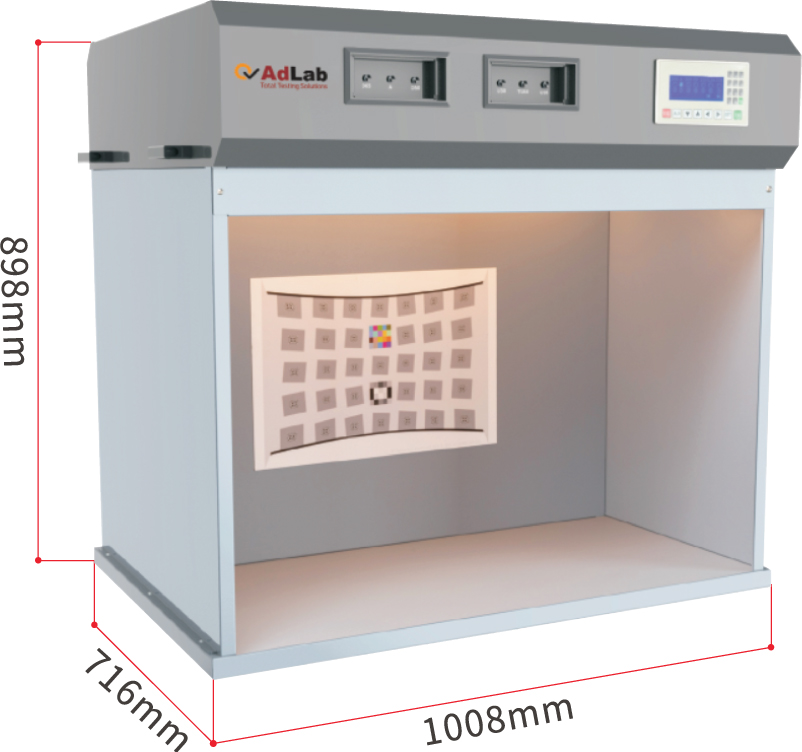

Size Parameter

Features of the Color Matching Cabinet

1. Use a new design that combines the advantages of British and American light boxes
2. 7 kinds of light source, 4 groups of LED light (life up to 25000 times) 3 groups of fluorescent light source.
3. Displays the usage time and total time of each light source
4. The light source can be switched freely, with the function of metamerism
5. The name of light source can be changed, adding light source is more efficient
6. No stroboscopic, can ensure fast and reliable color evaluation
7. Low energy consumption, without heating (no need for heat dissipation), high luminous efficiency
8. The illuminance of the light source can be adjusted

TruVision light box is controlled by a programmable text controller and PLC, which is more convenient to operate and use. Various light sources can be switched freely, and the number of times and hours of use of each light source can be displayed and can be cleared. The work surface and surrounding area are neutral colors, and the gloss is low. To avoid interference form outside light, outside light should not directly illuminate the opening of the observation box.

Parameters Color Matching Cabinet

• Model: TruVision (7 light source)
• Weight: 60Kg
• Size: 3 Feet (S*D*H): 1008x716x898m
• Standard Light source: ASTM/BS/CIE/ISO/DIN/TL84/ANSI
• Light source: D65/D50/UV/U30/TL84/U35/CWF/L40-8/L35-8/L30-8/L31-8
• Power supply: AC 220V~240V, 50/60Hz

The standard light tube specification
