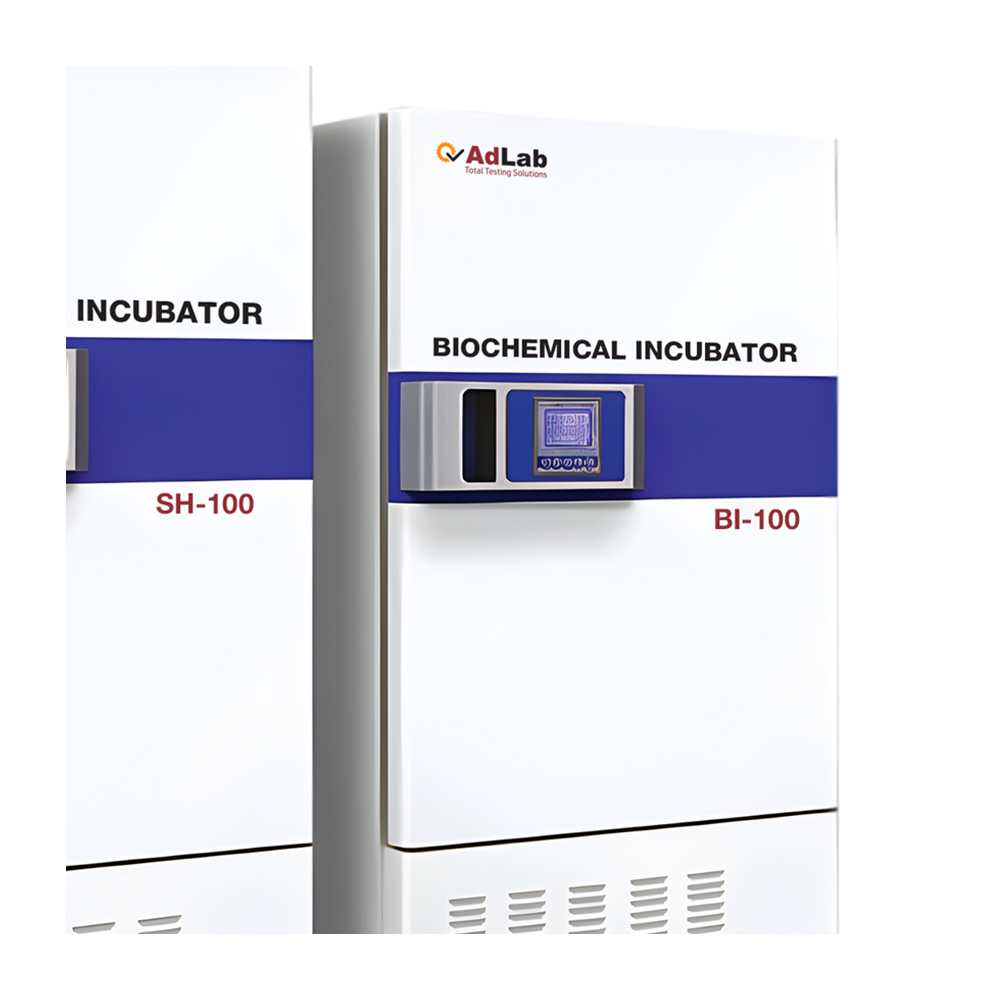

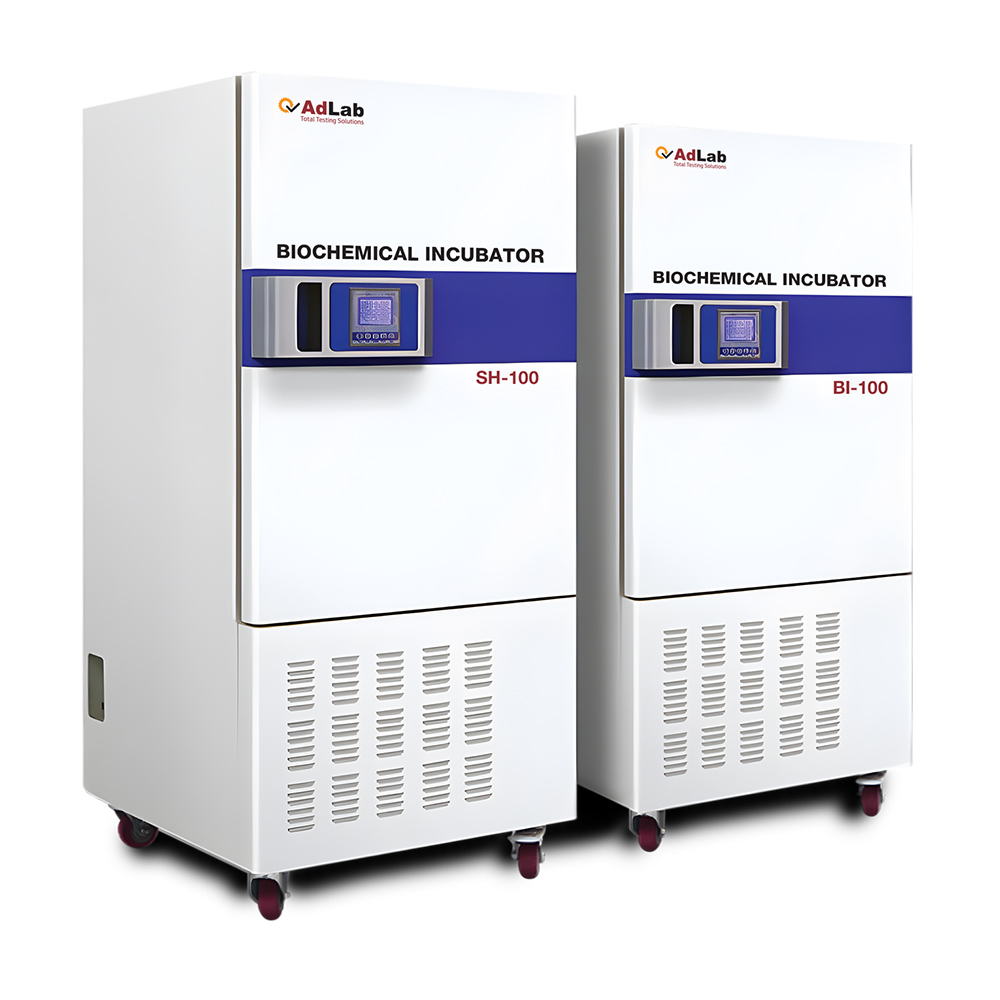

Biochemical Incubator

Biochemical Incubator

Technical Parameters

Optional Product Accessories

1. Portable printer
2. LCD touch screen controller
3. Air interface
4. Power supply interface
5. ALLSENS^TM Software
6. Adjustable speed oscillator (for constant temperature shaking culture use);
7. Programmable multi-stage controller

• All technical data is under no load conditions, environment temperature 25, relative humidity50%RH, voltage fluctuation ±10%, no obvious shock and dust.
• AdLab may change the above technical parameters at any time. There is deviation about product appearance due to some factors such as the photographic or printed result, please understand and reserves the final right of interpretation.

Meet International Standard

Products standard: NSF 49; EN12469
Electrical safety standard: International IEC61010-1/US UL61010-1/EU EN61010-1

Biochemical Incubator Mold Incubator

• Applicable to the analysis and BOD determination of water, is a dedicated research department of environmental protection, health and epidemic prevention, drug testing, livestock, aquatic thermostatic device.
• ALLIGENT-SH Biochemical Incubator/Mold Incubator can provide a stable temperature environment, simulate various climatic conditions, especially used in samples tests、shelf life tests, long-term experiments and cultivation of plants, seeds and microorganisms.
• According to Chinese pharmacopoeia requirements, AS3100 of Australia, FDA of the United States, EN, ICH and other related standards. For long-term acceleration experiments and forced degradation experiments.
• IQ, OQ, PQ and other related certification services.
• CE certification. Three-year warranty period.

ALLCOLD Refrigeration Technology

• World famous compressor: balanced refrigeration technology, auto defrost, multiple security system, long time running, environmental protection, high efficiency and energy saving.
• Auto-defrost function: original rapid heat pump defrost technology, for continuous operation, effectively prevent frost because of continuous operation of evaporator.
• Refrigeration effect manual control system: meet customer’s terrible work environment.
• Imported DuPont SUVA R134 a environmental refrigerant. For cleaner world, for better work condition.
• To save energy, to reduce the cost.

ALLFLOW Perfect Air Current Cycling

• ALLFLOW air current cycling: perfect forced convection, maximum samples number of working room, minimum temperature recovery time after the opening, world famous axial fan, perfect air current design, ensure an ideal result of samples culture.
• ALLFLOW air current cycling: keep temperature continuous and stable, keep humidity continuous and stable, ensure perfect sample culture.

ALLSENS Programmable PID Control

• Integrated, dot-matrix LCD display, Chinese and English subtitles, design for the highest operational comfort.
• Display parameters: temp humidity, cycle, run time, run/stop.
• Adaptive PID controller precisely control the temperature and humidity, prevent temperature soaring, keep working room temperature stable and uniformity.
• User password protection, built-in multifunctional memory menu, connect to multiple devices (up
  to 16 units), real-time monitoring.
• Set operations with beep tips
• Remote-controlled operation, with programmable software (option).Bacteria-free culture with UV disinfection (meet Mold incubator )

Qualified Sensor

Imported industrial sensor PT100, short response time, low self-heating temperature

Efficient Isolation Design

• Design of double-layer isolation, reduce power consumption, environmental protection concept, energy conservation
• Internal isolated door design, easy observation of working room samples, keep temperature stability of working room

Ergonomic design

• Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
• Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
• Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
• Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.
• Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.

Modern Manufacturing Processes

Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.

Easy to Clean

• Internal surface is smooth and less weld, easy cleaning and maintenance.
• Pull multi layer shelf design, less metal accessories, easy to clean.
• Drainage design of chamber humidification collecting tank. User can discharge water as required to avoid bacteria.
• Secure and Efficient Protection Concept
• Multiple over temperature protection function, sound and light alarm.
• Automatic double over temperature protection function.
• All electronic components are UL certified.
• Convenient Maintenance
• Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
• Maintaining of controlling system and cooling system, electrical control system mounted on the incubator bottom.
• Electrical control components and working room are installed separately. Especially refrigerating battery and electrical control output parts, which are installed in incubator bottom, easy to maintenance.

Main Configuration Table of SH Series Biochemical Incubator
