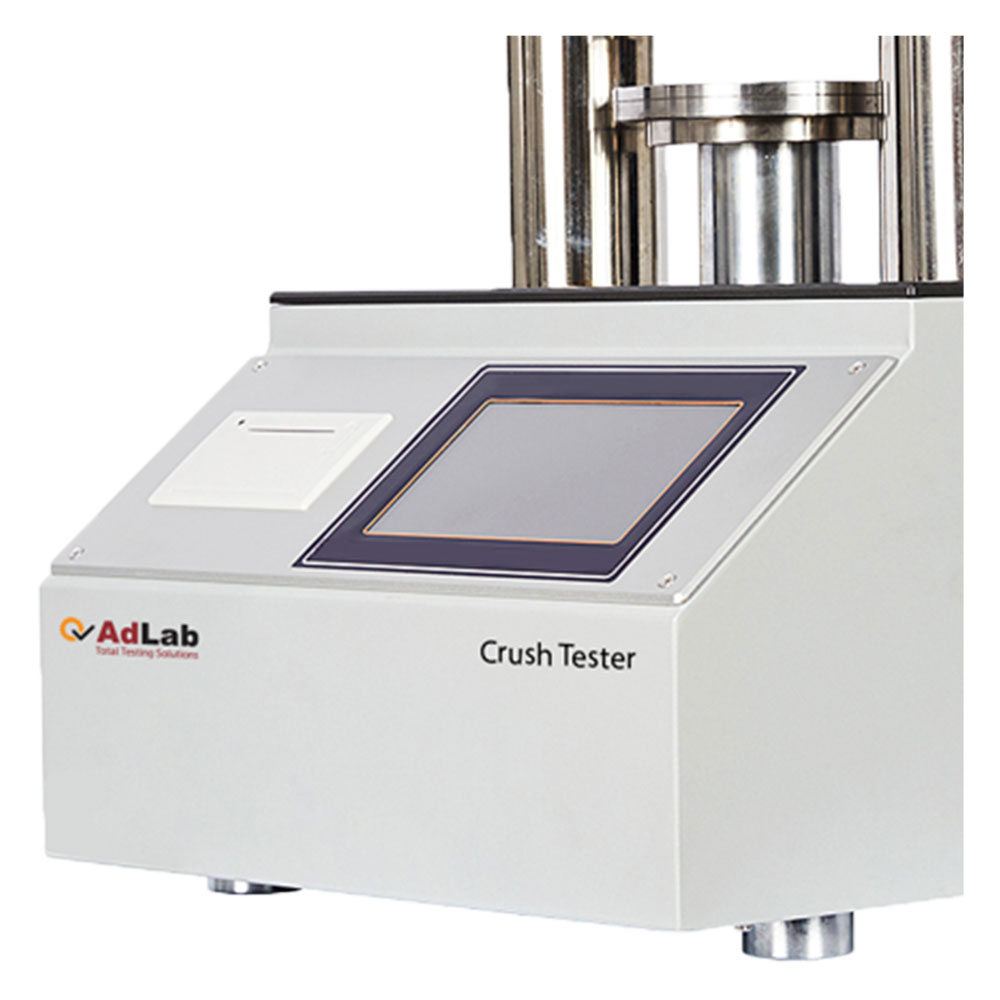

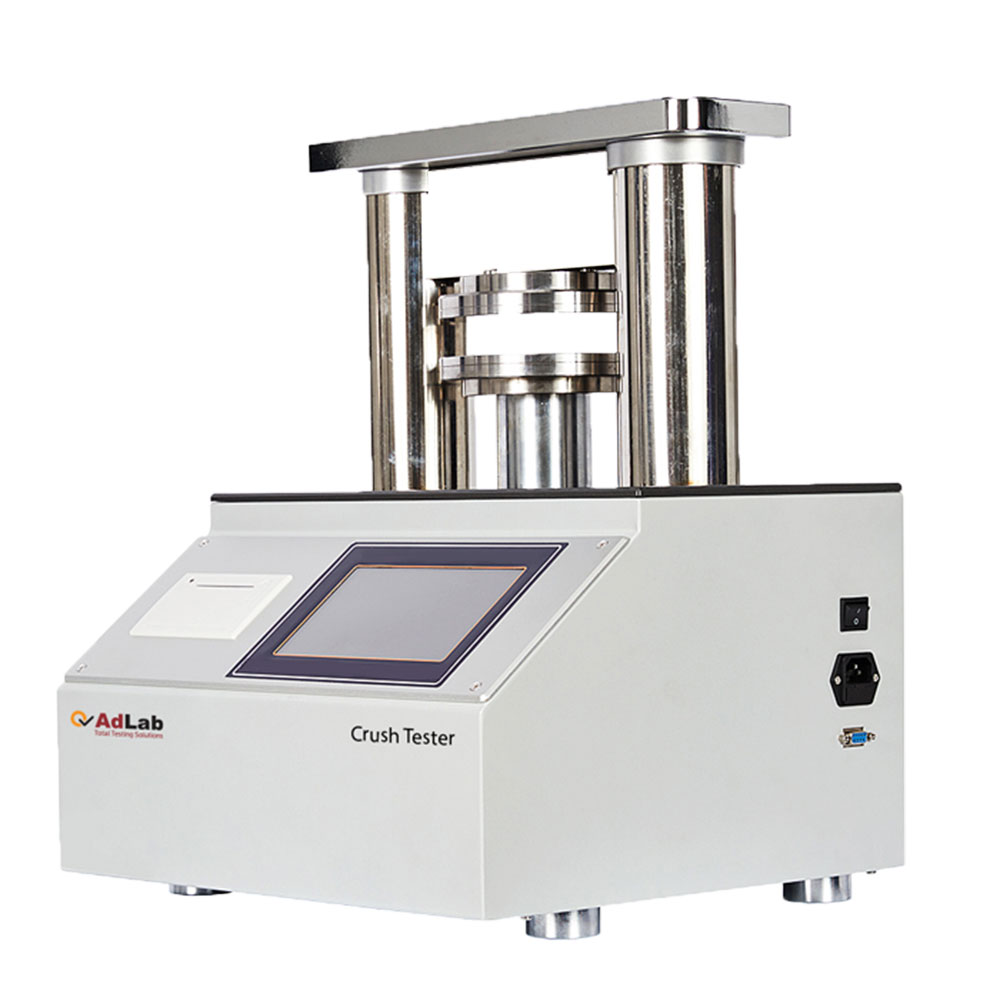

ADL-PCT3000A Crush Tester is a touch screen control paperboard crush strength tester produced by our company. The paperboard, carton factory and carton manufacturer are usually used to detect the edge crush strength (ECT) and flate crush strength (FCT) of corrugated board, adhesive strength (PAT) and flate crush strength (CMT), edge compressive strength (CCT) of diameter less than 60mm paper core. The instrument is an ideal auxiliary testing tool for papermaking enterprises, paperboard manufacturers, carton manufacturers, carton users and quality supervision and inspection departments.

Application Range

Paper, cardboard, paper core, base paper

Application Function

Measure RCT of paper 0.10~0.58mm thickness, ECT and PAT for corrugated board, FCT for single flute corrugated board, and CCT & CMT for corrugated paper

Standards

RCT：GB/T 2679.8、ISO 12192、TAPPI T822
ECT：GB/T 6546、ISO 3037、TAPPI T839
FCT：GB/T 22874、ISO 3035、TAPPI T825
PAT：GB/T 6548
CMT：GB/T 2679.6、ISO 7263、TAPPI T809
CCT：ISO 16945、TAPPI-T843

Product Features

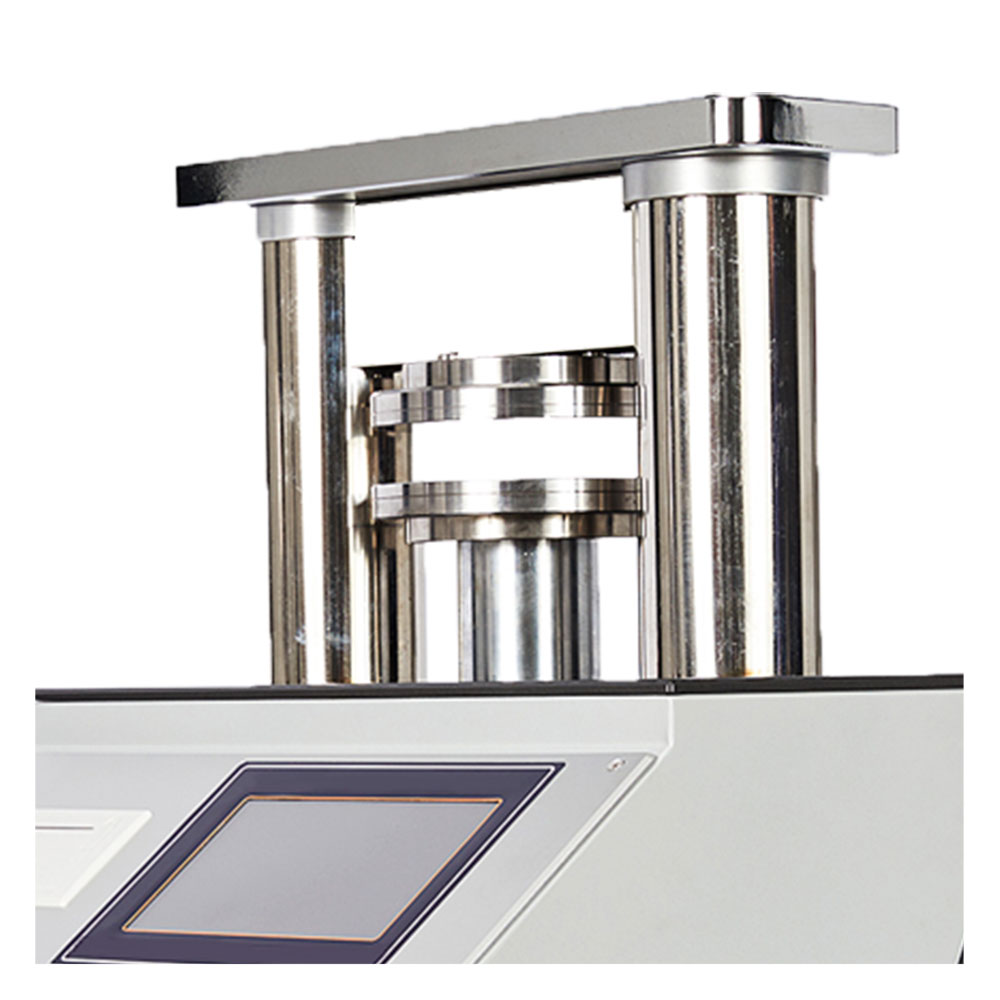

The instrument adopts a high-precision load cell, a ball screw drive, and dual guide shafts to ensure the force value and displacement accuracy of the instrument, and the smoothness of the platen movement.
The motherboard adopts the latest technology and new design. The CPU adopts 32-bit ARM processor, which improves the processing speed of the instrument and makes the calculation data more accurate and faster
The 7-inch serial color touch screen, Chinese and English can switch display, and touch buttons make the operation easy to understand
Automatic measurement, statistics, printing test results, the test data will not disappear when shutdown or power is off
Real-time display of pressure value changes during the test
Over-range automatic reset to protect precision sensors
The thermal printer core eliminates the need for inks and ribbons, noise-free operation, and fast printing speed
Units can be switched: N, kgf and lbf
With statistical function, showing average value, maximum value, minimum value, standard deviation and coefficient of variation
The instrument is equipped with a standard RS232 interface, which can be used with the microcomputer software for communication (optional)

Key Technical Parameters

Standards: RCT (GB/T 2679.8, ISO 12192, TAPPI T822), ECT (GB/T 6546, ISO 3037, TAPPI T839), FCT (GB/T 22874, ISO 3035, TAPPI T825), PAT (GB/T 6548), CMT (GB/T 2679.6, ISO 7263, TAPPI T809), CCT (ISO 16945, TAPPI T843)
Power Supply: AC 220V±10% 50Hz 100W (customizable)
Working Environment: (10~35)℃, Humidity ≤85%
Measuring Range: 10–3000N (customizable to 10–5000N)
Indicating Accuracy: ±0.5%
Resolution: 0.1N
Indication Variation Accuracy: ≤0.5%
Test Speed: (12.5±1)mm/min (1–500mm/min adjustable)
Test Return Speed: 500mm/min
Plate Displacement Speed: 200mm/min
Depth of Parallelism between Plates: ≤0.03mm
Maximum Distance between Plates: 80mm
Print: Built-in thermal printer
Communication Interface: RS232
Dimension(L×W×H): 410 x 410 x 550mm
Net Weight: ≤67kg

Optional Accessories (Purchase Separately)

RCT Central Panel
Testing ring crush strength of paper and cardboard – 1set
RCT Sample Cutter
Sampling ring crush strength of paper and cardboard – 1set
ECT Sample Holder
Testing edgewise crush strength measurement of paper and cardboard – 1set
ECT Sample Cutter Sampling edgewise crush strength and Bond
strength of paper and cardboard – 1set
FCT Sample Cutter
Sampling flat strength of paper and cardboard – 1set
PAT Accessories
Testing pin adhesion of paper and cardboard – 1set
RS232 interface and computer software – 1set

Why Choose the Crush Tester?

The Crush Tester ensures accurate crush strength testing with its high-precision load cell and automated data processing. Its compliance with ISO 12192, versatile test options, and compact 67kg design make it a top choice for paperboard and carton industries
